Bromic Heating Platinum Smart-Heat™ Electric Marine Heater - 4500W

Bromic Heating Platinum Smart-Heat™ Electric Marine Heater - 4500W

The Bromic Heating Platinum Smart-Heat™ Electric Marine Heater (4500W) represents the highest-capacity output configuration in Bromic's elite maritime-grade infrastructure line. Engineered explicitly to combat the accelerated pitting, structural degradation, and rust caused by corrosive saltwater mist, heavy coastal rain, and high humidity, this low-profile architectural fixture is considered an industry-leading standard for luxury waterfront estates and premium design-focused outdoor layouts.

Marine Engineering & Key Performance Features

• AISI 316 Marine-Grade Stainless Steel: The entire structural chassis frame is fabricated from top-tier AISI 316 marine-grade stainless steel. Infused with molybdenum, this specialized alloy provides innate resistance to chloride corrosion and airborne ocean pollutants compared to standard 304-grade stainless steel.

• IPX5-Rated Waterproofing: Upgraded to a strict IPX5 water-resistance rating. Featuring a fully enclosed, tightly sealed body shell, the inner electrical wiring and thin-film elements remain fully shielded against low-pressure water streams, heavy downpours, and intense spray from any direction.

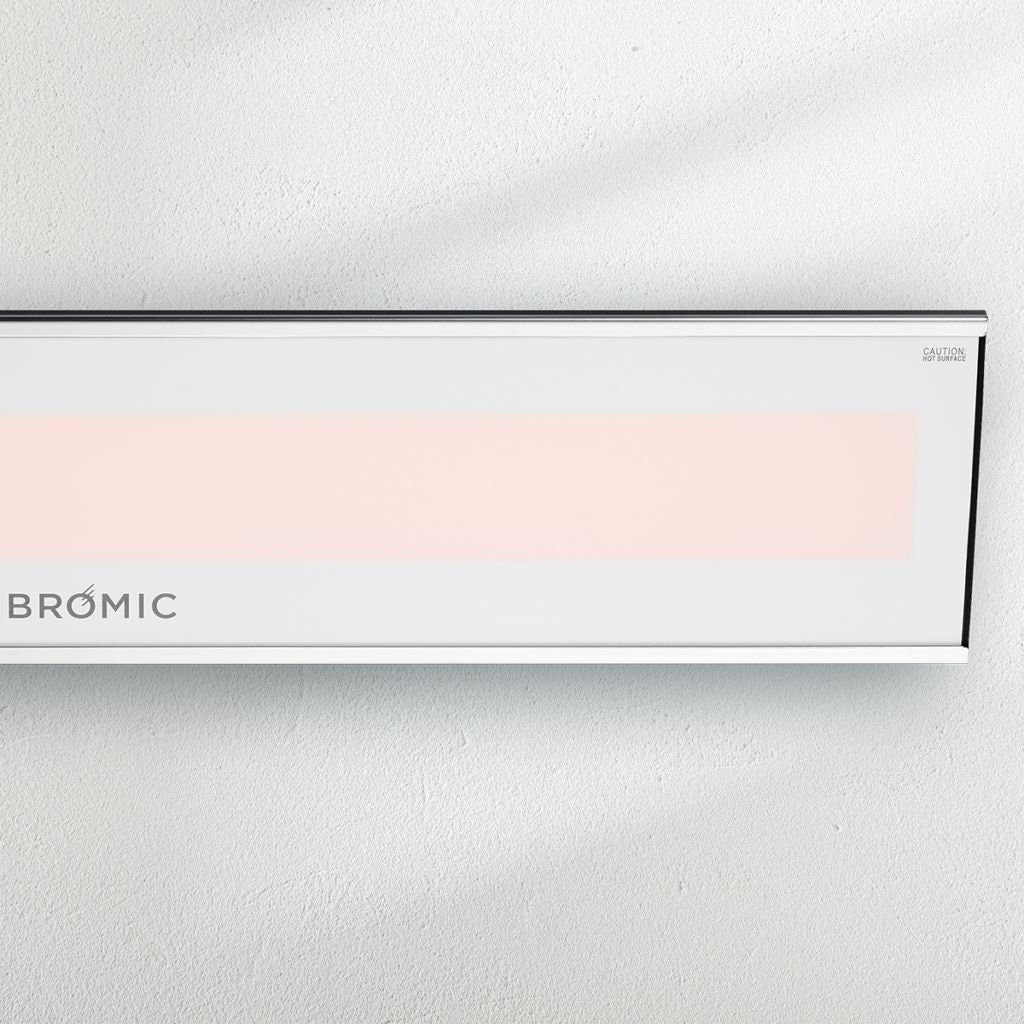

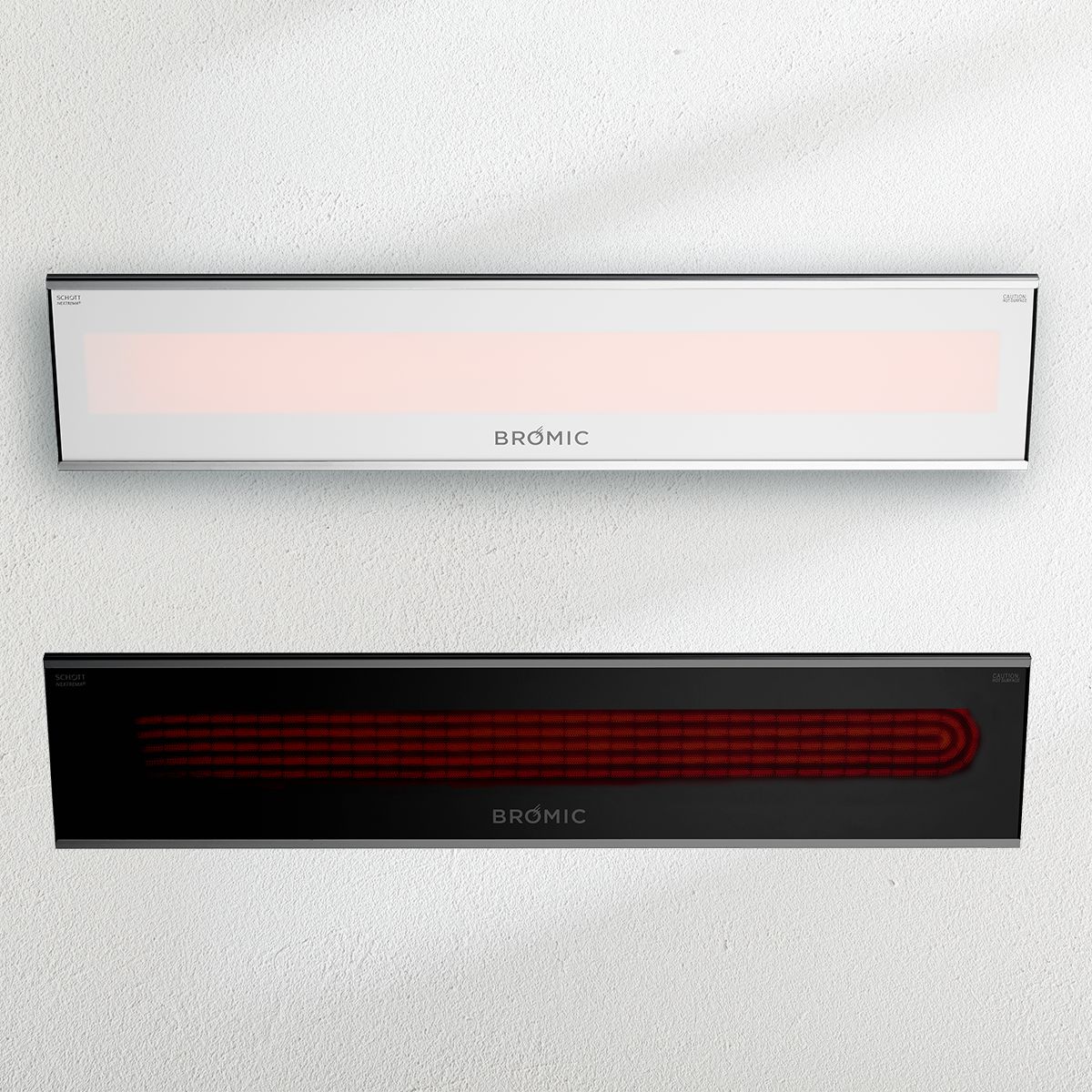

• Schott Tinted Ceramic-Glass Fascia: Fronted by a signature translucent ceramic-glass translucent screen. This specialized lens evenly diffuses powerful dual-element radiant infrared waves over a wide footprint while absorbing up to 95% of the harsh, intrusive red light glare common in traditional elements, creating a soft, glare-free orange ambiance.

• Directional Radiant Infrared Warmth: Operating like the sun, the dual-element core directly warms solid objects and people rather than wasting energy heating the surrounding wind. This makes it highly efficient in high-airflow, open-air coastal settings.

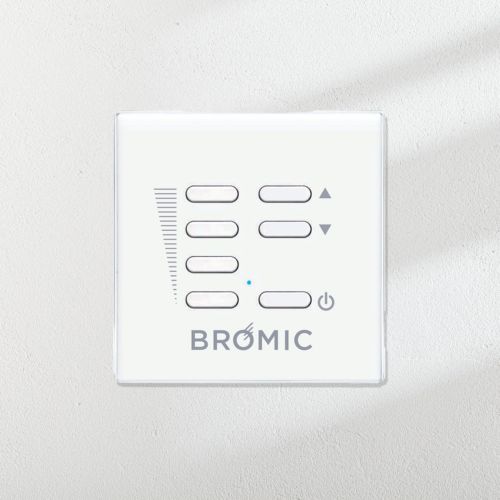

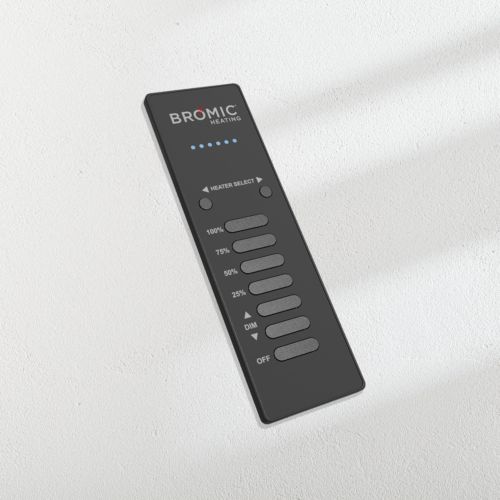

• Smart Control Integration: Offers single-switch activation and full compatibility with smart home automation links (via an RS232 SmartHeat Link transceiver port) or advanced multi-channel wireless controllers for granular, step-adjustable heat management.

Technical Specifications & Spatial Footprint

• Power Performance Rating: 4,500 Watts Series (High-Capacity Dual Element)

• Radiant Thermal Output: 15,354 BTUs per hour

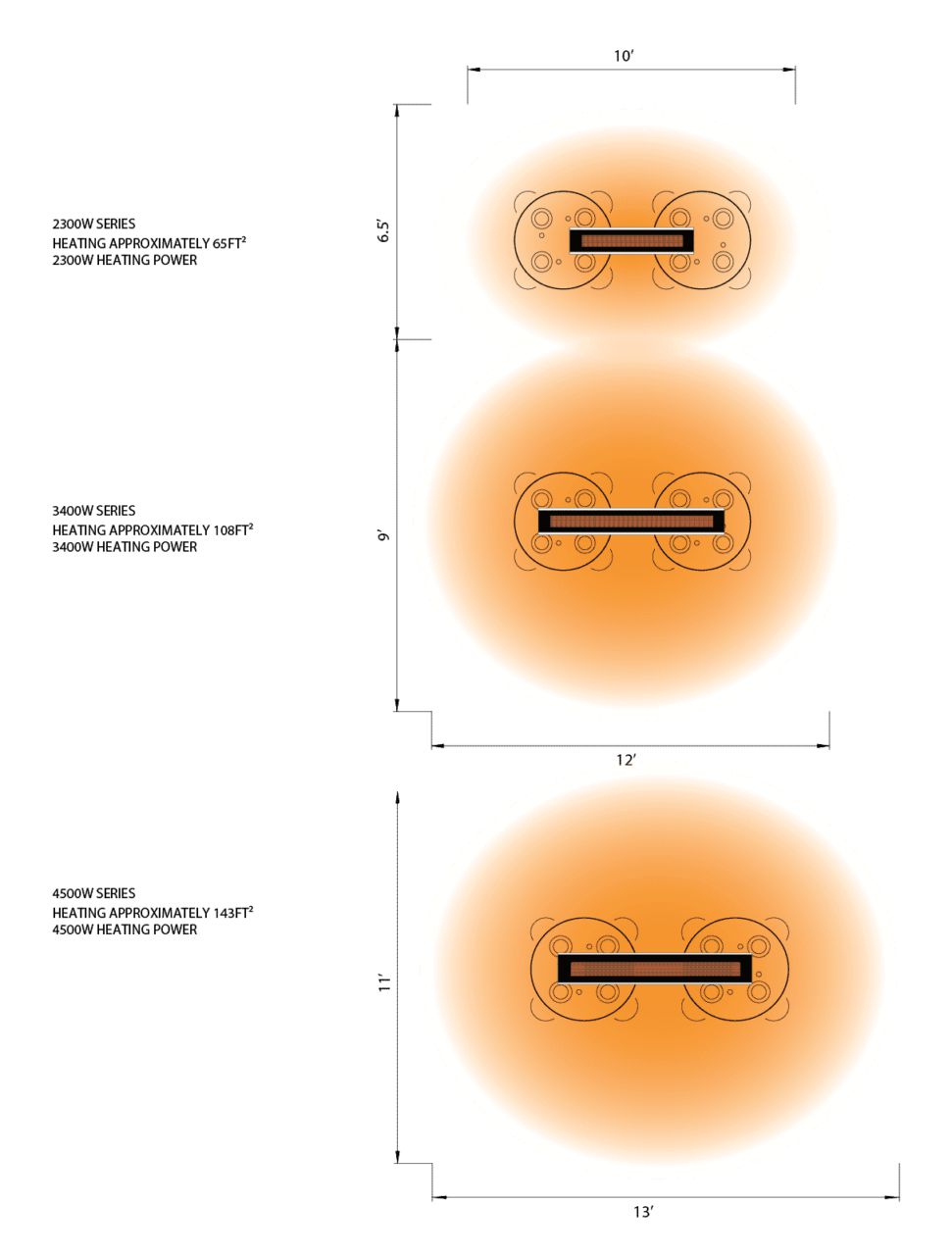

• Effective Heating Coverage Area: Warms a broad expanse up to 143 square feet (Dependent on climate dynamics and localized wind barriers)

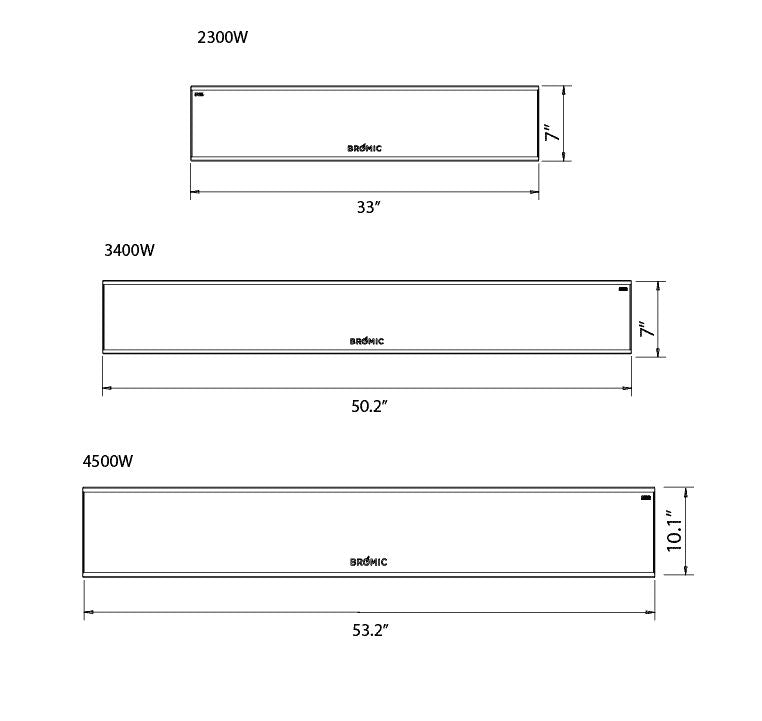

• Physical Framework Dimensions: 53.2” Wide x 10.1” High x 2.1” Deep

• Net Product Weight: 33.0 lbs

• Electrical Configuration Parameters: * Standard Phase: 220-240V | 50/60 Hz | 18.8 Amps

  • Commercial Phase: 208V | 60 Hz | 21.6 Amps

  • (Requires a dedicated, hardwired electrical service line; standard household plug configurations are insufficient).

• Safety Approvals & Craft Compliance: UKCA-Intertek 2305A0683SHA-V2 / cETLus Listed.

• Deployment Guidelines: Highly optimized for land-based coastal zones, beach clubs, and massive maritime applications such as superyachts and cruise ships. (Note: Technical guidelines note that standard land/coastal deployment frameworks have specific restriction variances compared to smaller scale mobile watercraft).

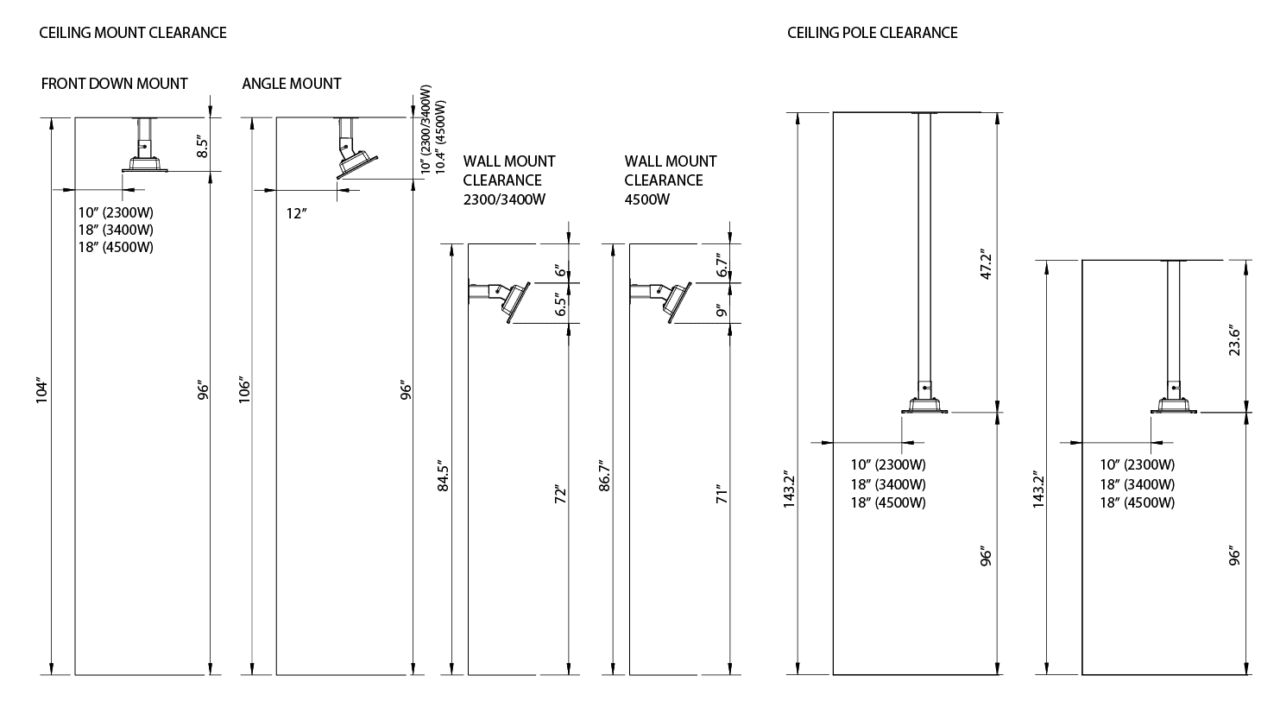

Mandatory Architectural Clearances & Mounting Profiles

To ensure strict fire prevention and safe operating parameters, the 4500W unit requires the following clearance zones from adjacent materials:

• Minimum Finished Floor Clearance: Must be positioned a strict minimum of 72 inches (6 feet / 1800mm) above the ground when wall-mounted, and 96 inches (8 feet / 2400mm) when suspended from the ceiling.

• Combustible Proximity Clearance: A minimum clearance distance of 39.4 inches (3.2 feet / 1000mm) must be maintained in front of the glass face from any surrounding combustible elements (fabrics, fixtures, or furniture).

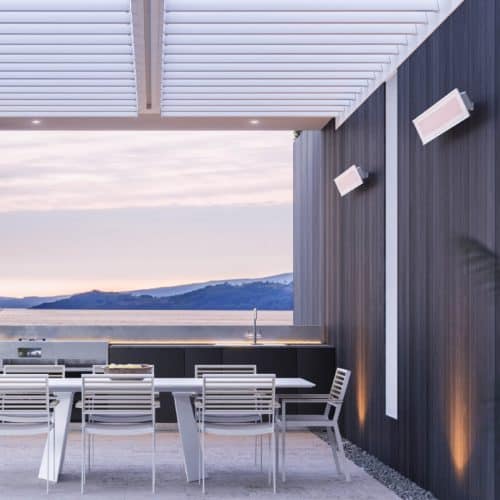

• Mounting Adaptability Options: * Wall/Ceiling Bracket: Ships with complimentary 316-grade adjustable stainless steel pivot brackets that allow users to angle or tilt the heater head to face a designated target lounge area.

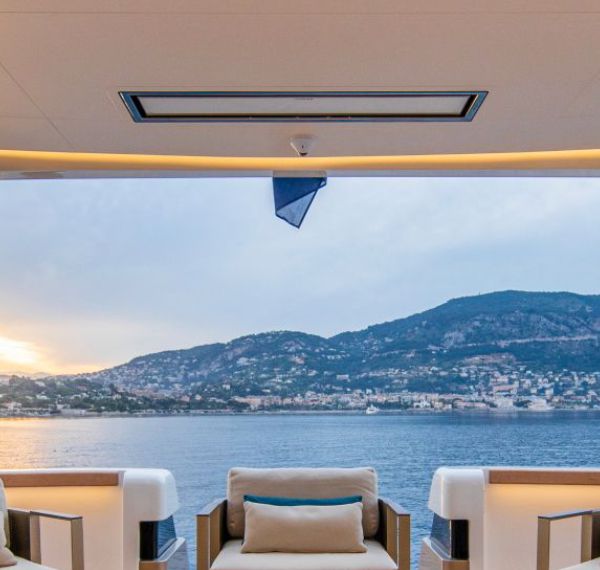

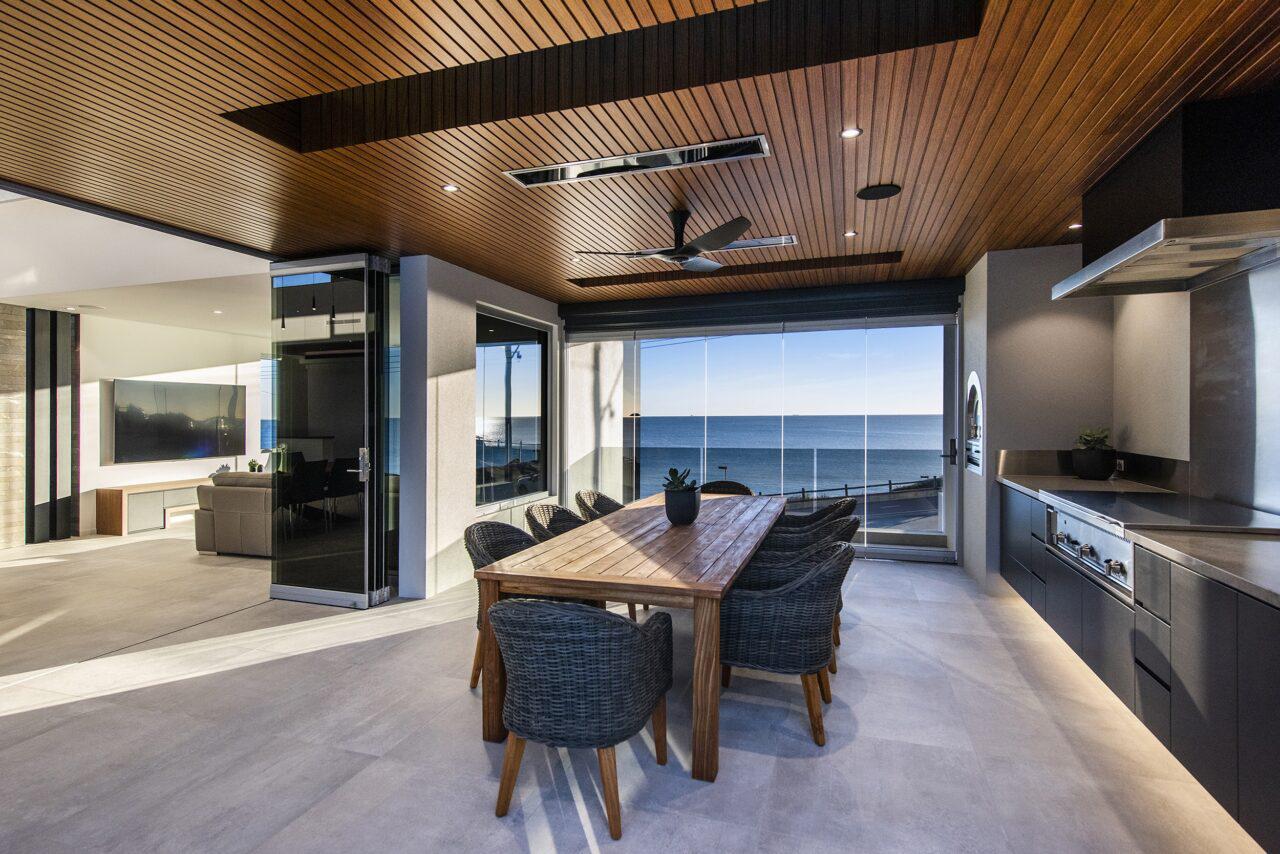

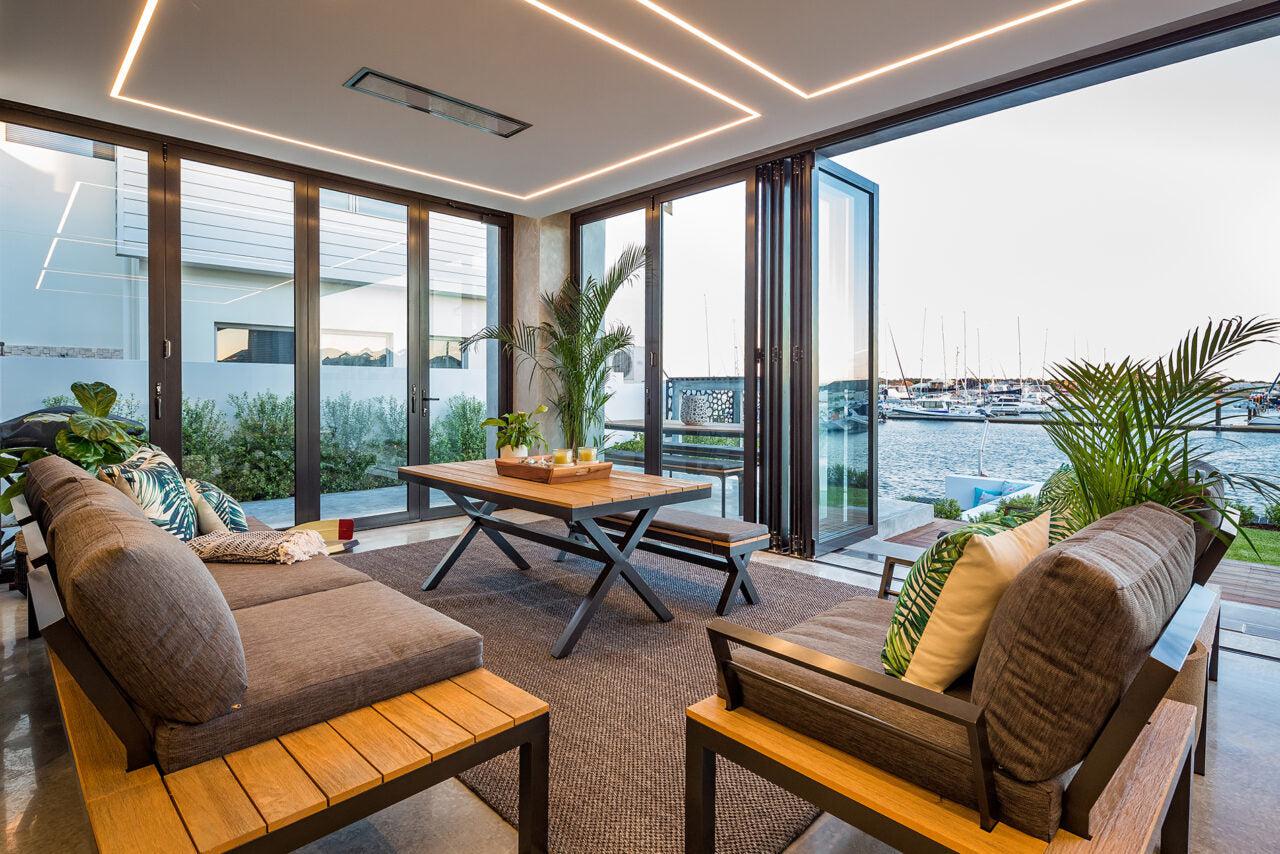

  • Ceiling Recess Kit: Can be paired with an optional low-clearance recess frame to let the heater panel sit entirely flush with the ceiling, requiring a cavity depth as small as 7.1 inches.

  • Suspension Poles: Compatible with 2-foot and 4-foot custom down-rods for properties with ultra-high architectural overhangs.

Inclusions & Installation Logistics

• What's Inside the Box: Premium 4500W Electric Marine Heater panel, standard 316 stainless steel adjustable wall/ceiling pivot mounting hardware, and the technical installation manual.

• Factory Warranty Support: Backed by an extensive 5-Year parts warranty. This premium elite coverage is applicable explicitly for land-based coastal residential applications and does not cover active open-water commercial vessels or maritime craft.

• Installation Notice: Because this high-output 4500W framework operates on high-voltage lines drawing significant current, final electrical infrastructure wiring, circuit breaker integration, and heavy structural ceiling mounting must be executed by a certified, licensed electrician.
