Bull 3-Piece Diablo 46" 6-Burner Gas Grill Outdoor Kitchen Package

Bull 3-Piece Diablo 46" 6-Burner Gas Grill Outdoor Kitchen Package

The Bull 3-Piece Diablo 46-Inch 6-Burner Gas Grill Outdoor Kitchen Package (SKU: DIABLO-3-PIECE-PACKAGE) is an extra-large, estate-tier hardware bundle curated specifically for serious outdoor chefs building an expansive, custom on-site kitchen island. As the absolute largest and most powerful grill setup engineered by Bull, the Diablo eliminates the need for separate cookers by offering massive real estate and six independent cooking zones.

Instead of sourcing matching components individually, this package bundles the 46-inch flagship grill head with a custom-fit weatherproof cover and an extra-wide double access door set. Constructed entirely from premium, heavy-duty 14-gauge 304 stainless steel, this commercial-grade setup is built for high-capacity entertaining across all seasons.

High-Performance Cooking Engine & Premium Features

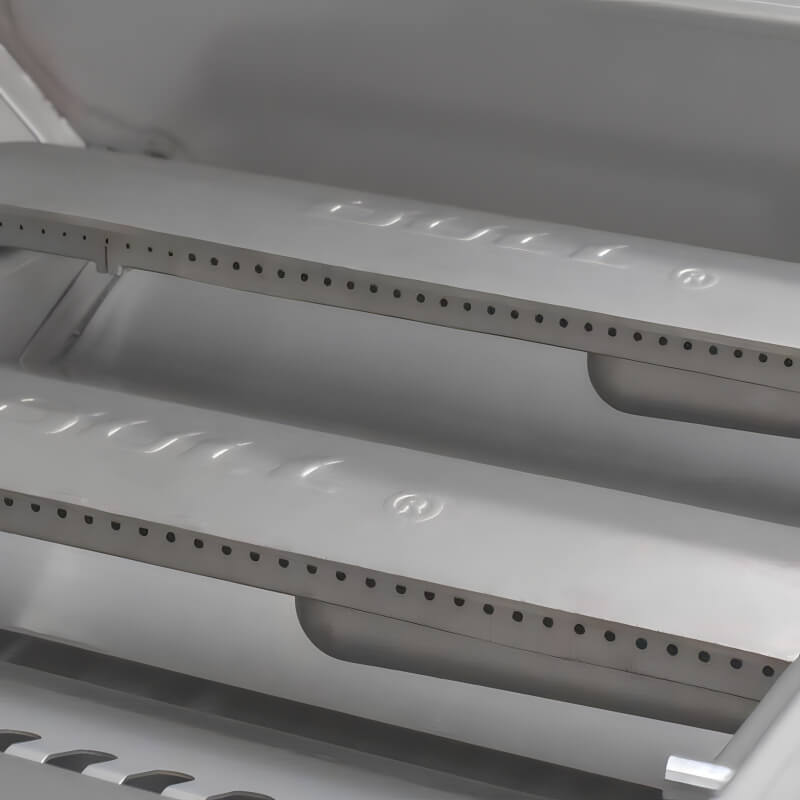

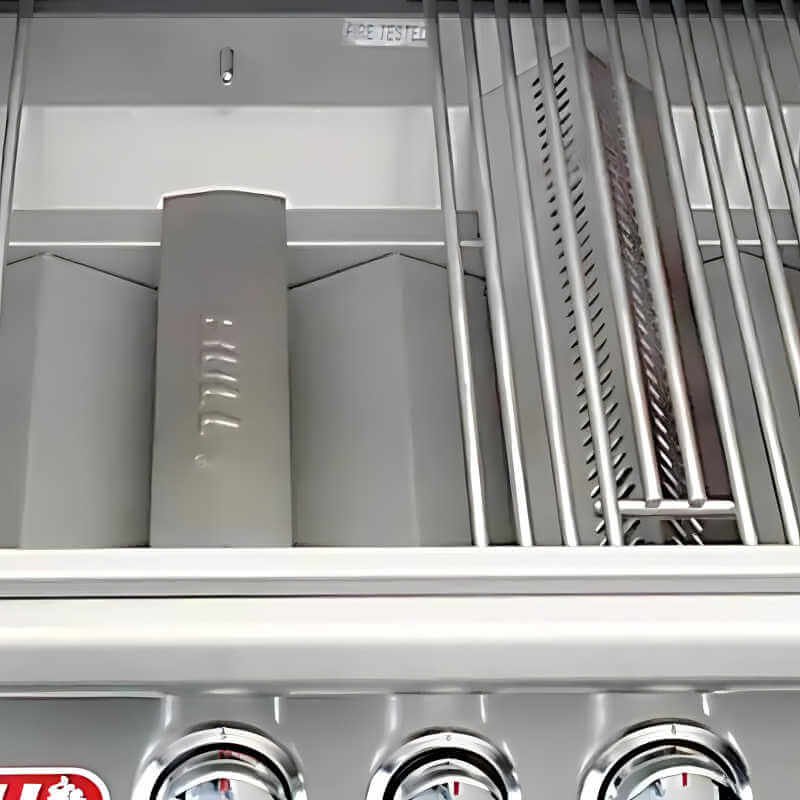

• Immense Firepower Layout: Driven by six commercial-grade main burners precision-forged from thick 304 cast stainless steel pushing out 15,000 BTUs each, generating a massive 90,000 BTUs on the primary cooking surface alone. These heavy cast elements provide extreme resistance to warping, rust pitting, and thermal stress compared to thin-walled tube burners.

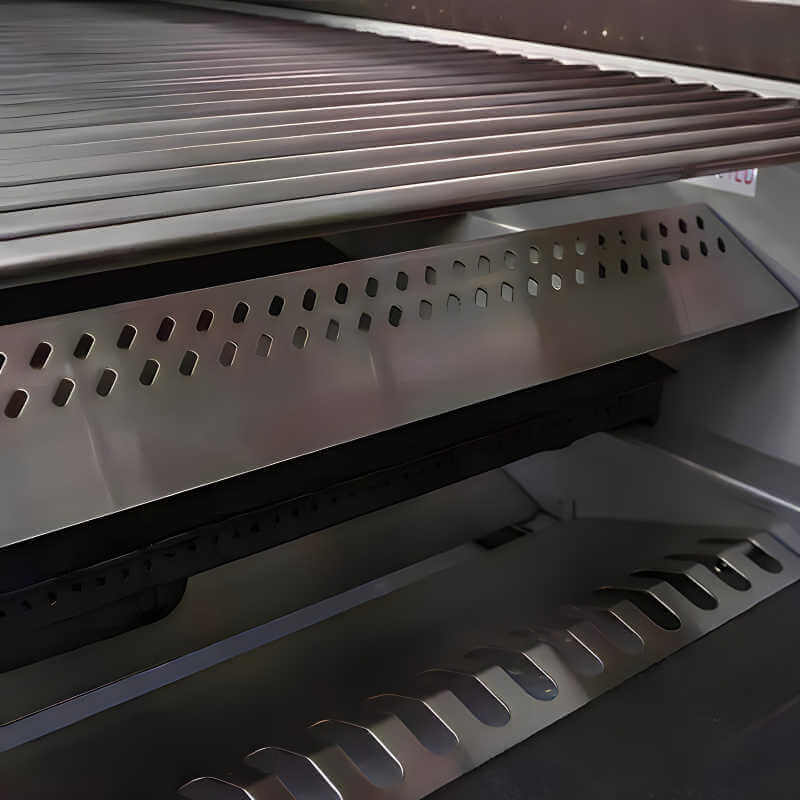

• ReliaBull Even-Heat Technology: Outfitted with heavy-gauge 304 stainless steel flame tamers. This patented ReliaBull engineering layout redistributes the flame path across the entire extra-large grid system, decreasing hot and cold zones by up to 250% to ensure flawless edge-to-edge temperature uniformity.

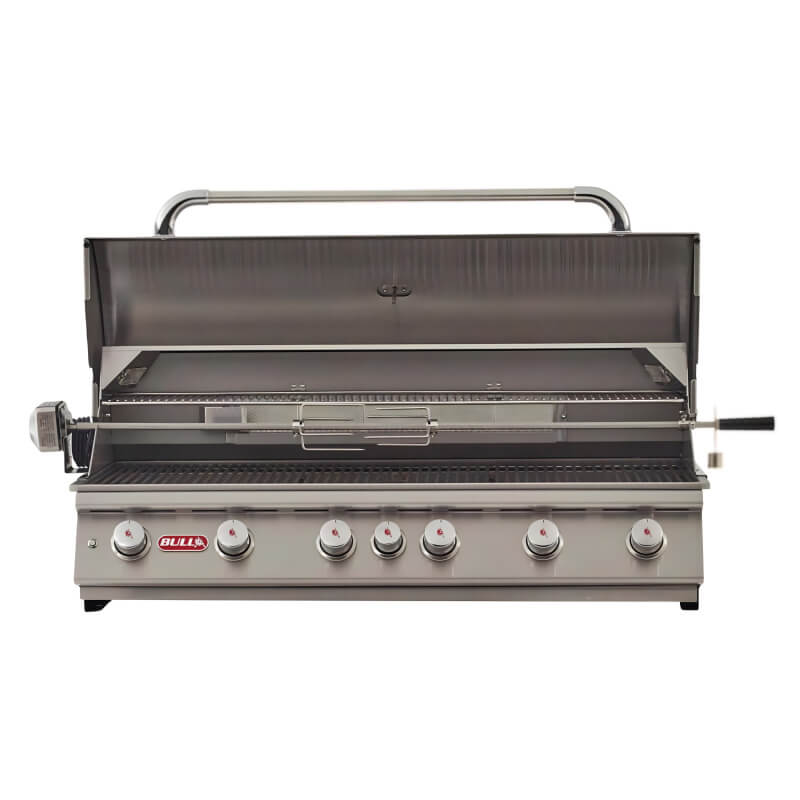

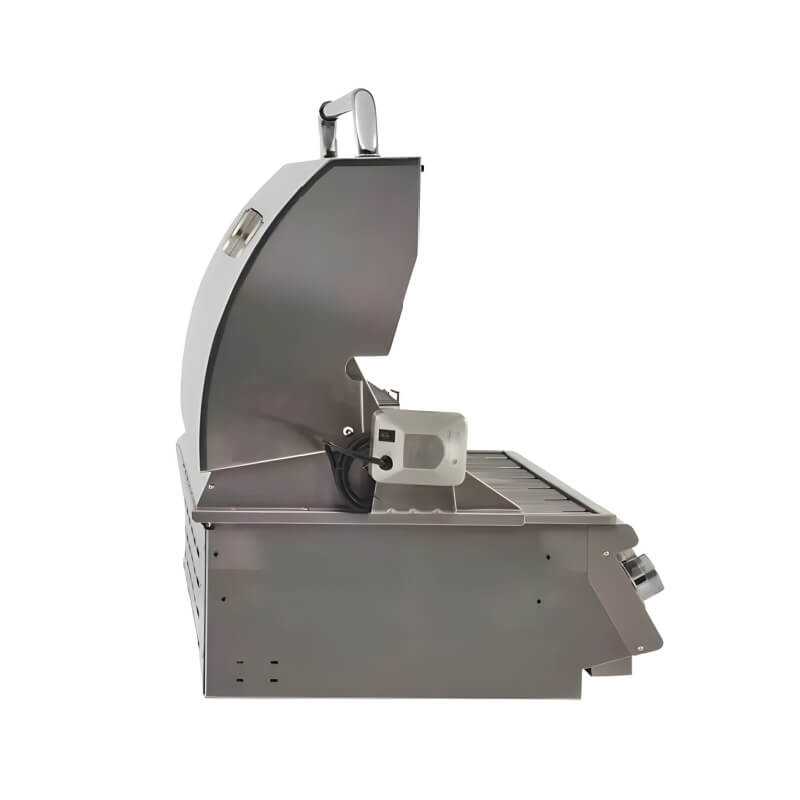

• Infrared Rotisserie Backburner System: Features a built-in rear 15,000 BTU infrared rotisserie burner controlled directly from the front panel, bringing the grill's total output to a staggering 105,000 BTUs. The package ships complete with a full heavy-duty stainless steel motorized rotisserie kit (including the spit rod, motor, and balance forks).

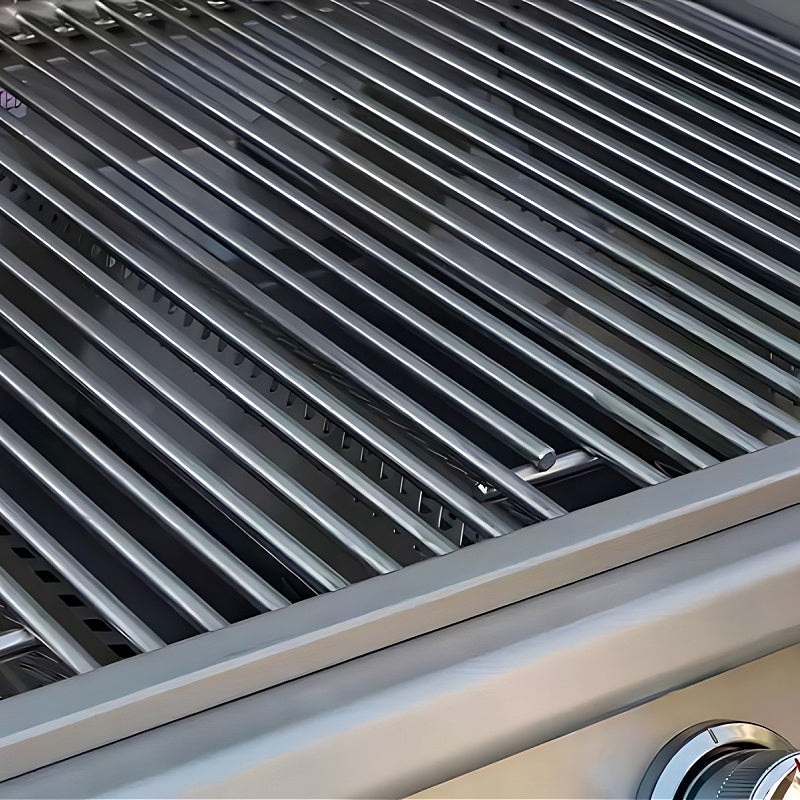

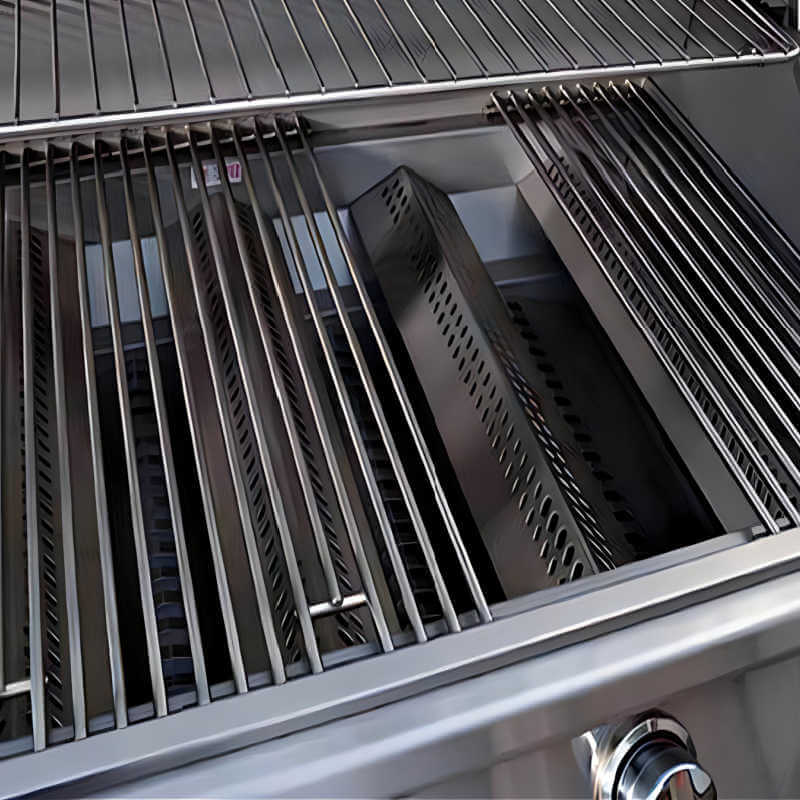

• Solid Stainless Steel Cooking Grates: Outfitted with thick round-rod solid stainless steel cooking grates. These heavy-gauge grates possess immense thermal mass to lock in high temperatures upon contact with cold meats, sealing in natural juices and creating professional steakhouse sear marks.

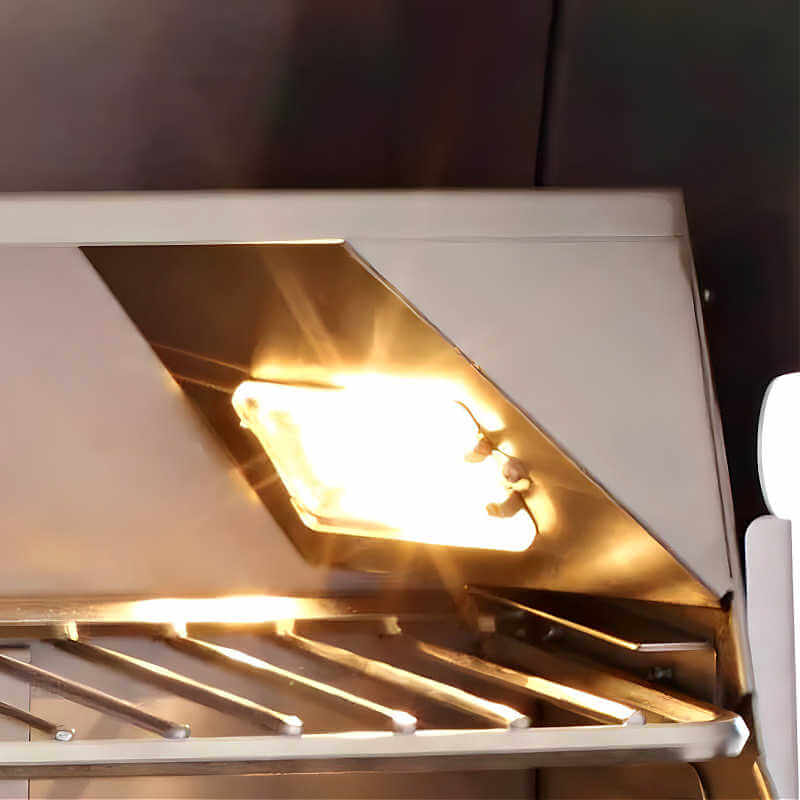

• Twin Internal Halogen Lighting: Recessed directly into the firebox walls is a dual halogen lighting system. Activated via a push-button switch on the front console, it fully bathes the massive cooking plane in crisp light, making evening grilling accurate and effortless without requiring external task lamps.

• Single-Piece Dual-Lined Hood: Built with a double-walled, seamless insulated hood constructed from a single piece of heavy-duty steel. This structural layout works like a thermal oven to maximize heat retention during sub-zero winter cooks while shielding the outer mirror-finished steel from cosmetic amber heat discoloration.

• Battery-Free Piezo Valve Ignition: Each of the independent main burner dials features a push-and-turn flame thrower Piezo igniter. It throws a high-voltage mechanical spark at the valve line upon every click, completely eliminating the need for running external 120V ignition wires or swapping out dead battery cells.

Included 3-Piece Bundle Essentials

This bundled setup packages three matching, estate-tier components to instantly outfit a massive island footprint:

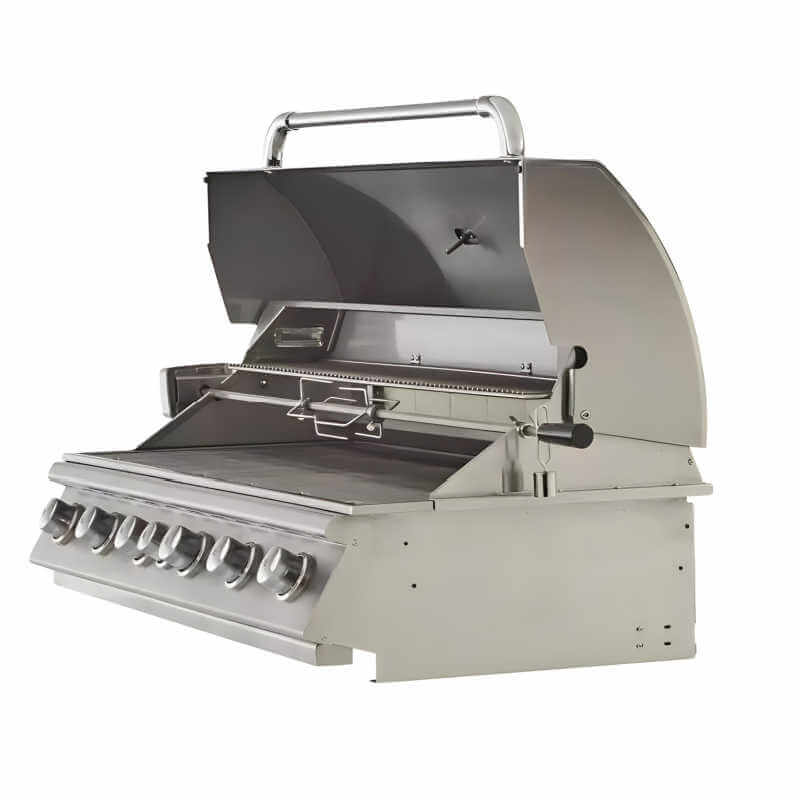

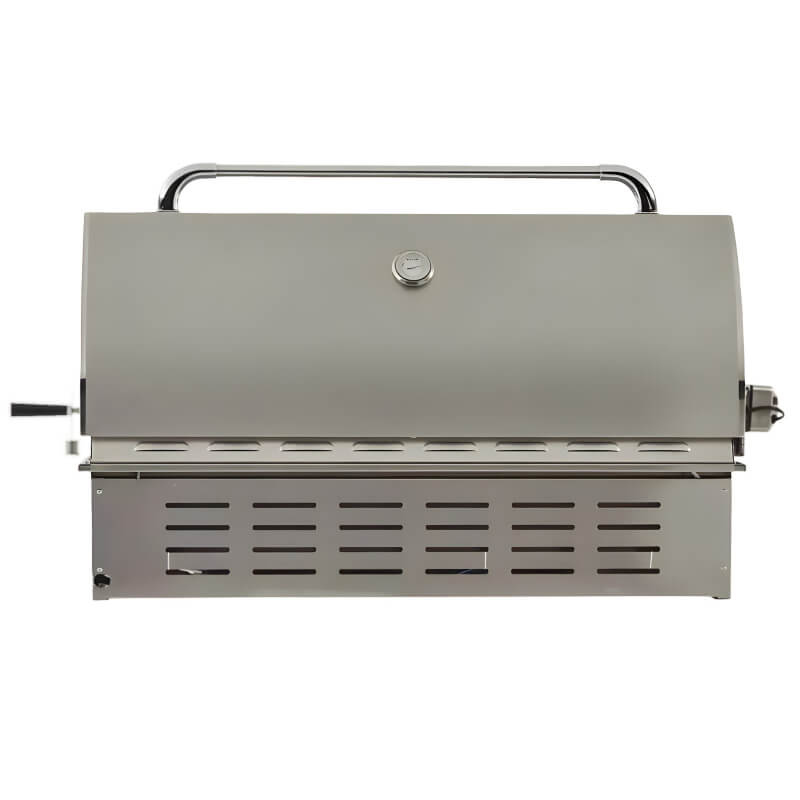

1. Bull Diablo 46" 6-Burner Built-In Gas Grill (Model 62648 / 62649): The foundational, extra-large flagship grill head detailed above.

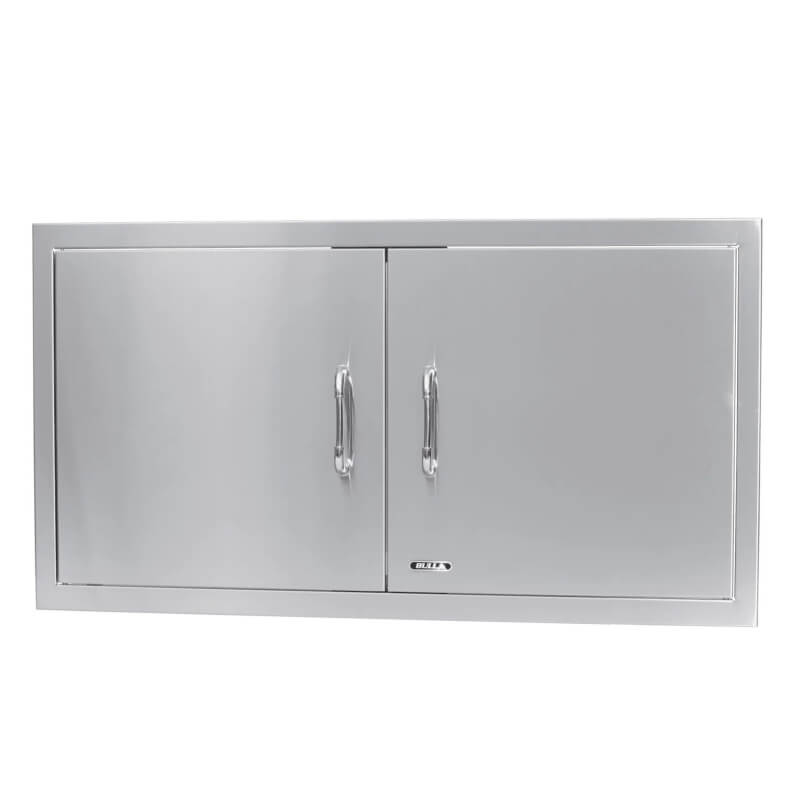

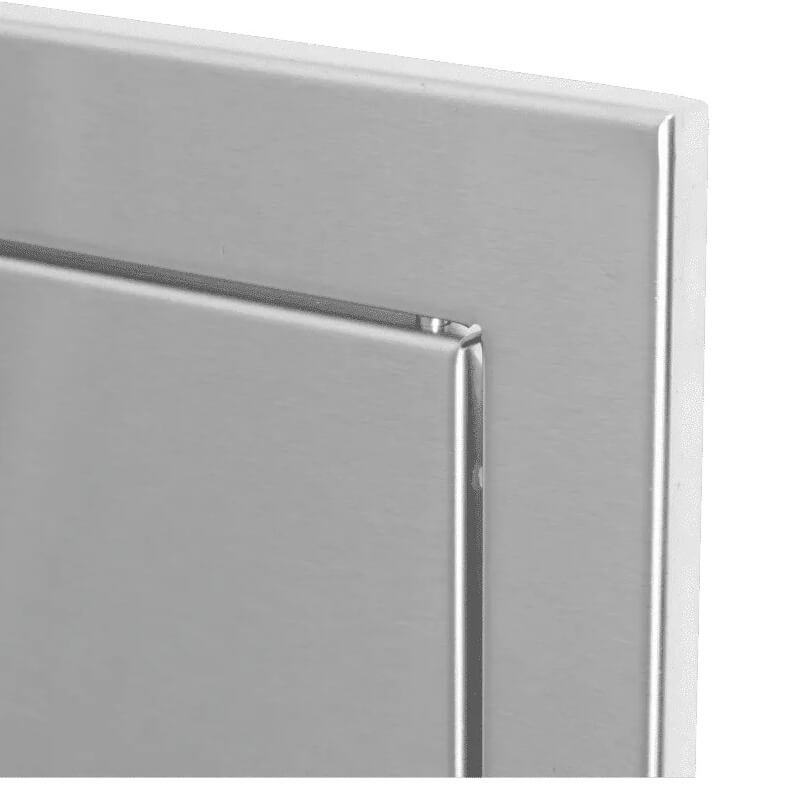

2. Bull 46" Stainless Steel Double Access Doors (Model 55890): A massive, commercial-grade 304 stainless steel dual-door set featuring a clean 1/2-inch architectural reveal to streamline drop-in masonry installation. Equipped with European soft-close alignment hinges, commercial bar handles, and an integrated internal paper towel holder tray. It provides expansive access to lower island plumbing, structural gas lines, or bulk wood and charcoal bins.

3. Bull Heavy-Duty Custom Grill Cover (Model 72017): A premium, custom-fit outdoor cover woven from water-resistant 300D high-denier polyester. Equipped with inner elastic tracking loops, it tightly cinches around the Diablo hood structure to block UV fading, heavy rainstorms, pollen, and nesting insects.

Technical Specifications & Spatial Cutout

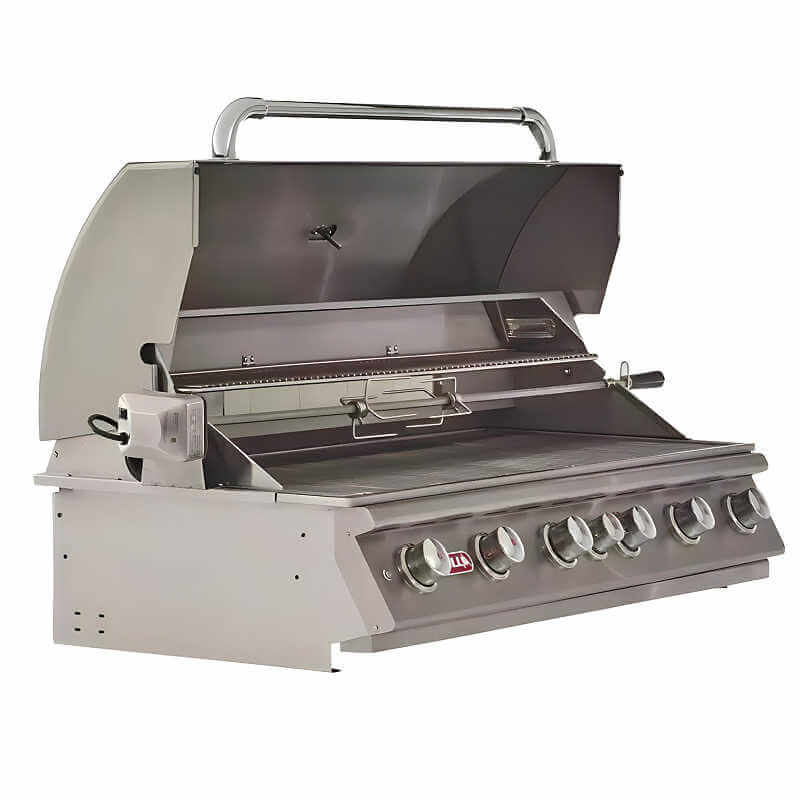

• Primary Main Cooking Area: 1,000 square inches (Dimensions: 45 5/8” W x 19” D)

• Secondary Warming Rack Area: 242 square inches

• Total Combined Cooking Space: 1,242 square inches (Accommodates approximately 35 to 40 standard burger patties simultaneously)

• Total System Thermal Rating: 105,000 BTUs combined maximum output

• Total Base Net Weight (Grill Head Only): 216 lbs (Heavy, industrial-grade structural build)

• Mandatory Enclosure Cutout Dimensions: 46 1/2” Wide x 21” Deep x 9 1/2” High

• Overall Assembled Unit Proportions: 47 1/4” Wide x 24 1/8” Deep x 21 1/4” High

• Electrical Requirement Note: While the main ignition fires mechanically, a standard 110V/120V electrical cord connection (transformer included) is required to supply power to the dual interior halogen lights and rotisserie motor.

Logistics, Configurations, & Manufacturer Warranty

• Fuel Utility Customization: Serialized and pre-configured from the factory floor specifically for either Liquid Propane (Model 62648) or Natural Gas (Model 62649) hookups.

• Important Framing Safety Guidelines: Because the Diablo firebox releases immense thermal energy at scale, your custom outdoor kitchen island cavity must be constructed from non-combustible materials. If building adjacent to a wood framing substructure, a matching 46" Insulated Liner Jacket must be utilized.

• Bull BBQ Premium Factory Warranty Protection: * Lifetime Structural Protection: Solid 304 cast stainless steel burners, solid round-rod cooking grids, and the primary welded outer firebox housing are under factory warranty for life.

  • 3-Year Protection: Heavy-gauge ReliaBull flame tamers/heat shields.

  • 1-Year Protection: Gas valves, mechanical Piezo igniters, internal electrical wiring loops, halogen bulb sockets, and custom canvas covers.
