Fire Magic Echelon Diamond E790i 36" Built-In Gas Grill (Digital Thermometer & Magic View Window)

Fire Magic Echelon Diamond E790i 36" Built-In Gas Grill (Digital Thermometer & Magic View Window)

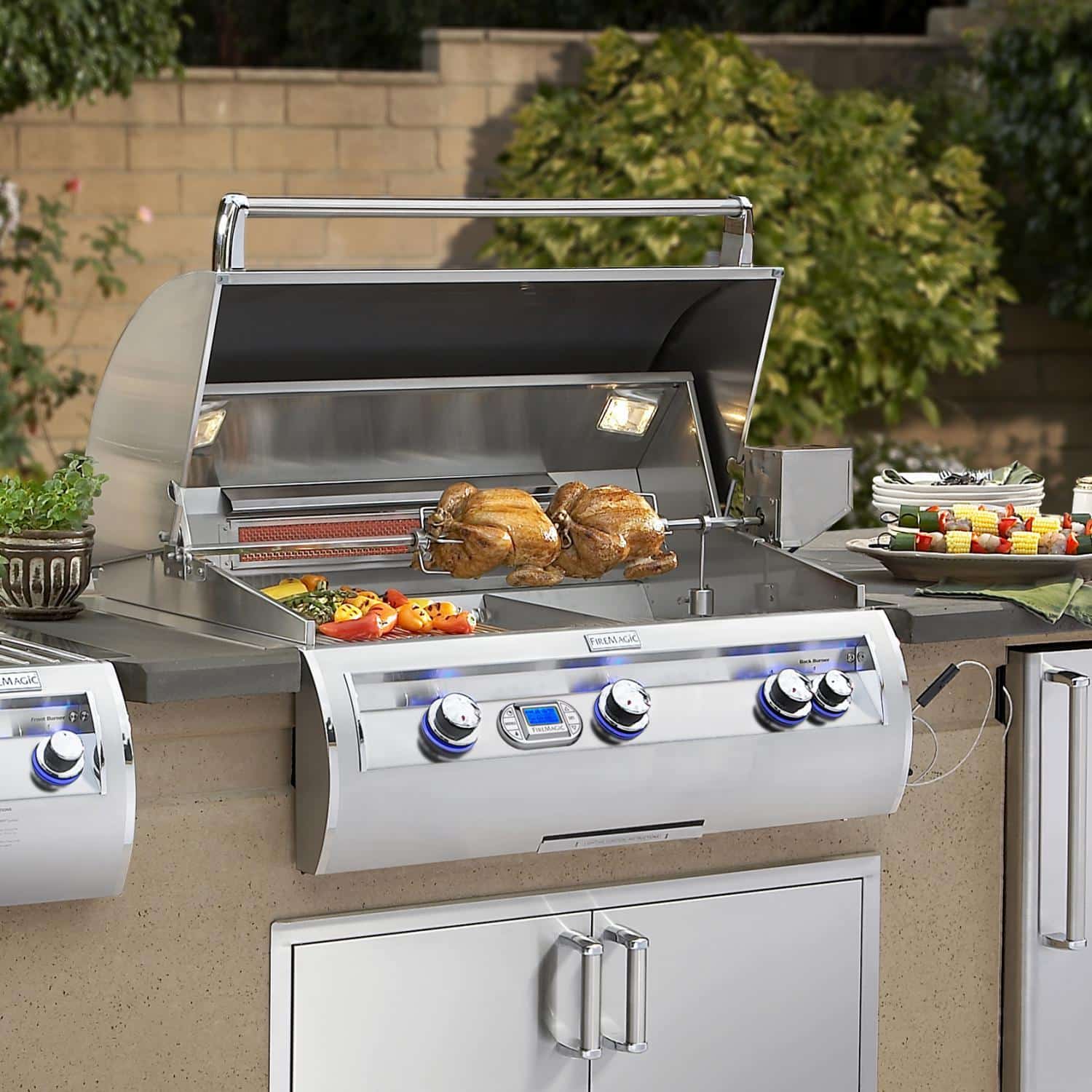

The Fire Magic Echelon Diamond E790i 36" Built-In Gas Grill with Digital Thermometer & Magic View Window (E790i-8E1N/P-W) represents the absolute pinnacle of luxury outdoor cooking infrastructure. Proudly engineered and manufactured in the USA, this heavy-duty flagship model pairs immense thermal power with advanced electronic monitoring and high-end visual design.

Featuring a distinctive Magic View Window integrated directly into the lid, it serves as an uncompromising, high-capacity focal point for premium custom outdoor kitchen islands.

Performance Engineering & Luxury Features

• The Magic View Window: Built with a high-temperature ceramic-glass pane embedded into the center of the double-walled hood. This luxury feature allows chefs to perfectly monitor steaks, fish, or roasts visually without lifting the lid, trapping 100% of the convective heat and smoke inside for optimal cooking efficiency.

• Thick Cast Stainless Steel E-Burners: Driven by three massive main burners precision-forged from 1/4-inch thick premium 304 stainless steel. Weighing up to 12 lbs each, these industry-leading components push out a combined 96,000 BTUs across the main surface and feature an integrated top-lip shroud to completely prevent grease or soot clogging.

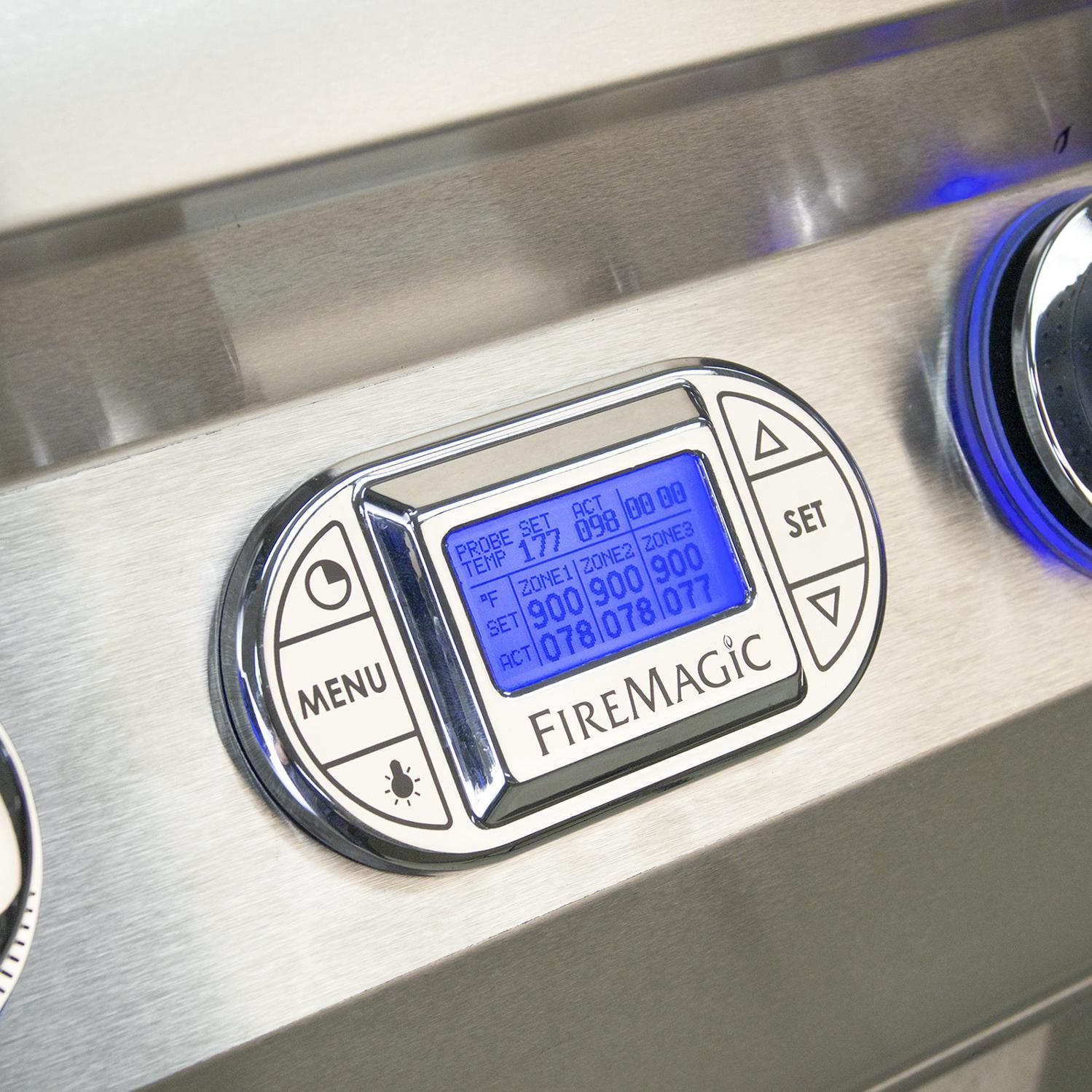

• 4-Zone Chrome Digital Thermometer: Features a sleek, underglass electronic touchscreen control panel right on the face of the grill. It displays real-time ambient oven tracking across 4 independent zones and coordinates with a plug-in stainless steel meat probe. The system includes built-in timers, alerts, and remote smart technology to monitor food core temperatures from a smartphone app.

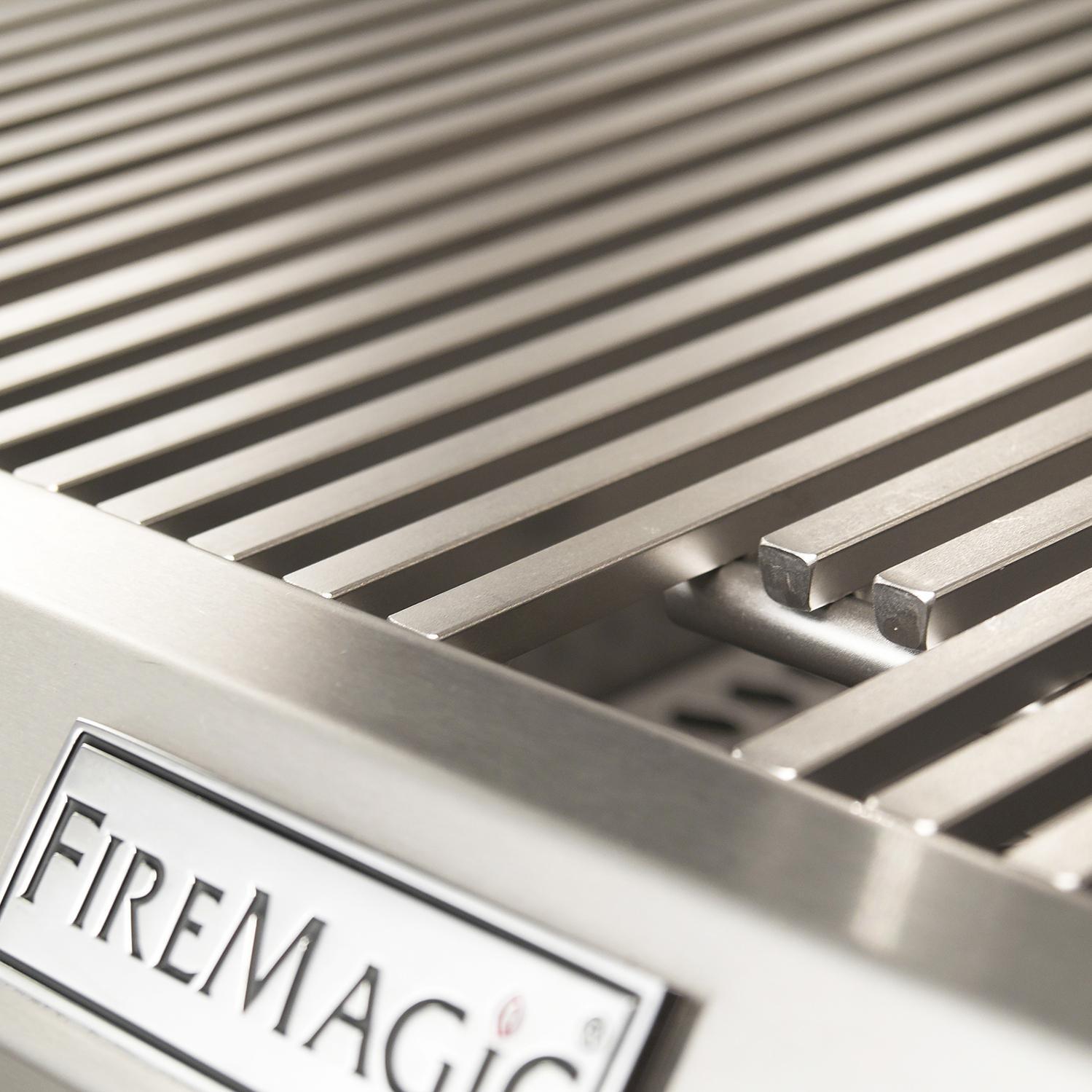

• Patented Diamond Sear Cooking Grids: Outfitted with heavy-gauge trapezoidal 304 stainless steel grids. The bars are engineered with a smooth, flat top measuring over 0.35 inches wide, covering more than half of the cooking grid surface area. This layout provides unparalleled direct thermal transfer, ensuring food cooks faster and sears more evenly.

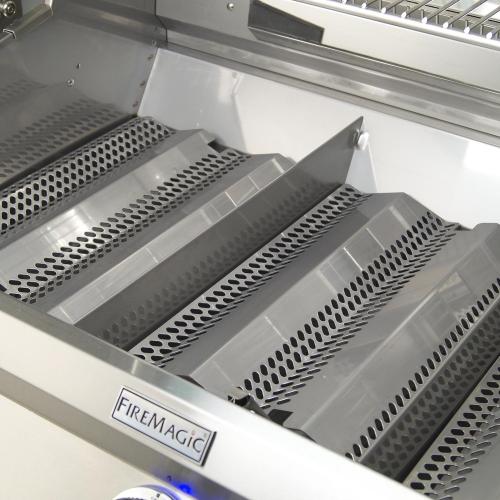

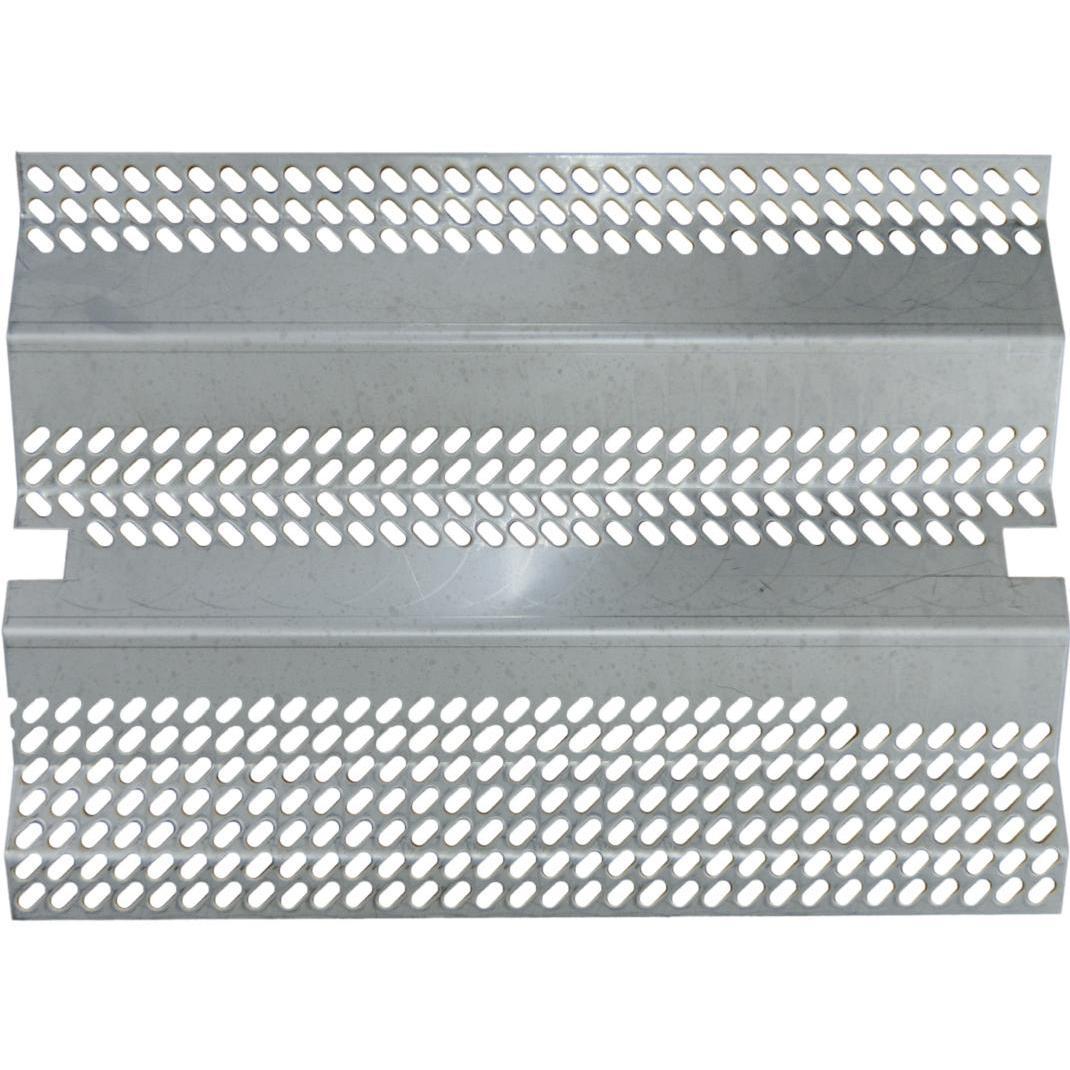

• 16-Gauge Flavor Grids with Separators: High-efficiency stainless steel flavor grids cover the burners to spread radiant heat and instantly vaporize drippings into rich barbecue smoke. Integrated heat zone separators sit between each burner line, allowing you to seal off independent cooking zones to simultaneously grill delicate seafood and flash-sear steaks at radically different temperatures.

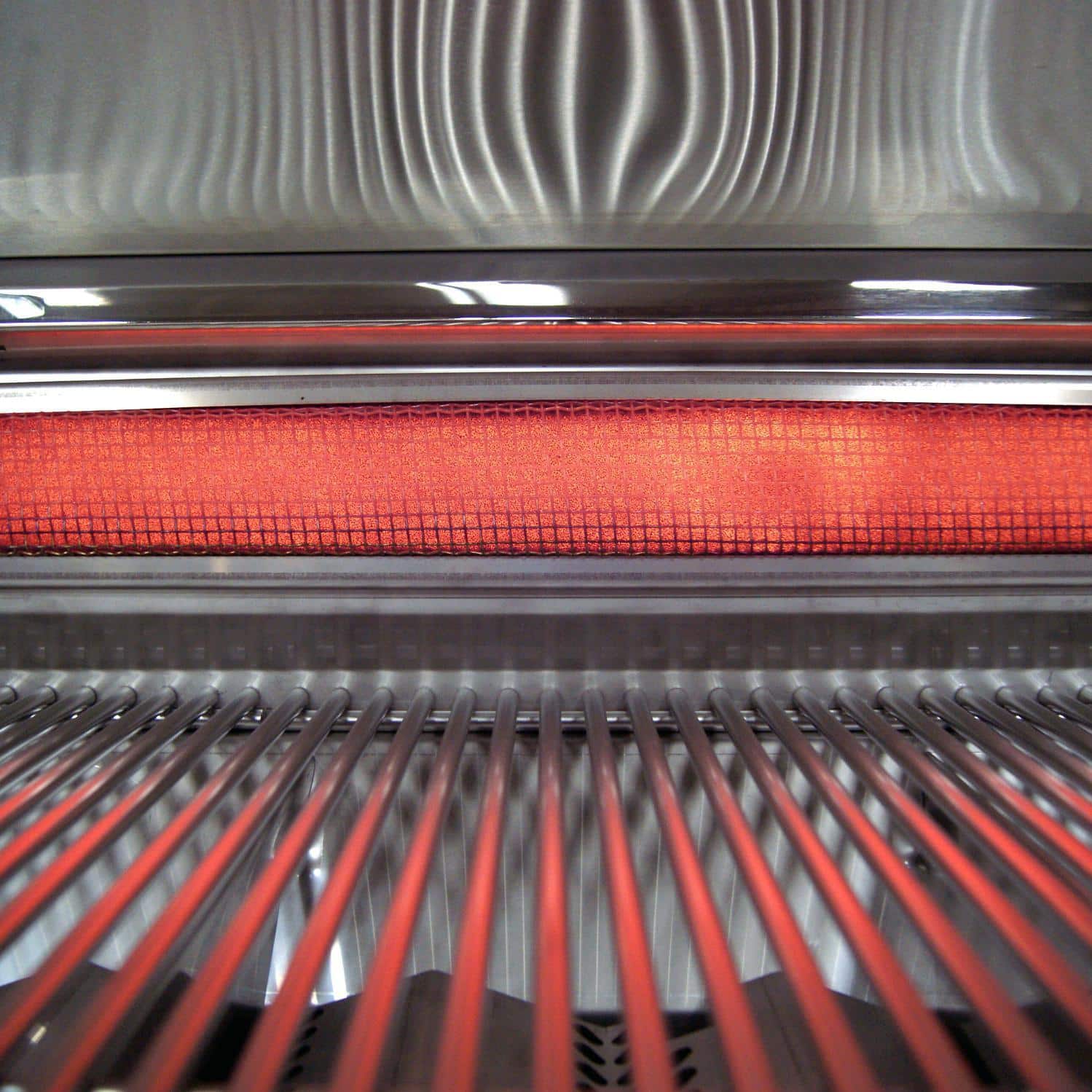

• Recessed Stainless Steel Foam Backburner: Built with an efficient ceramic rotisserie backburner encased in heavy stainless steel mesh foam. Pushing out 13,000 BTUs, it uses less fuel while directing heat entirely toward the included heavy-duty motorized rotisserie kit.

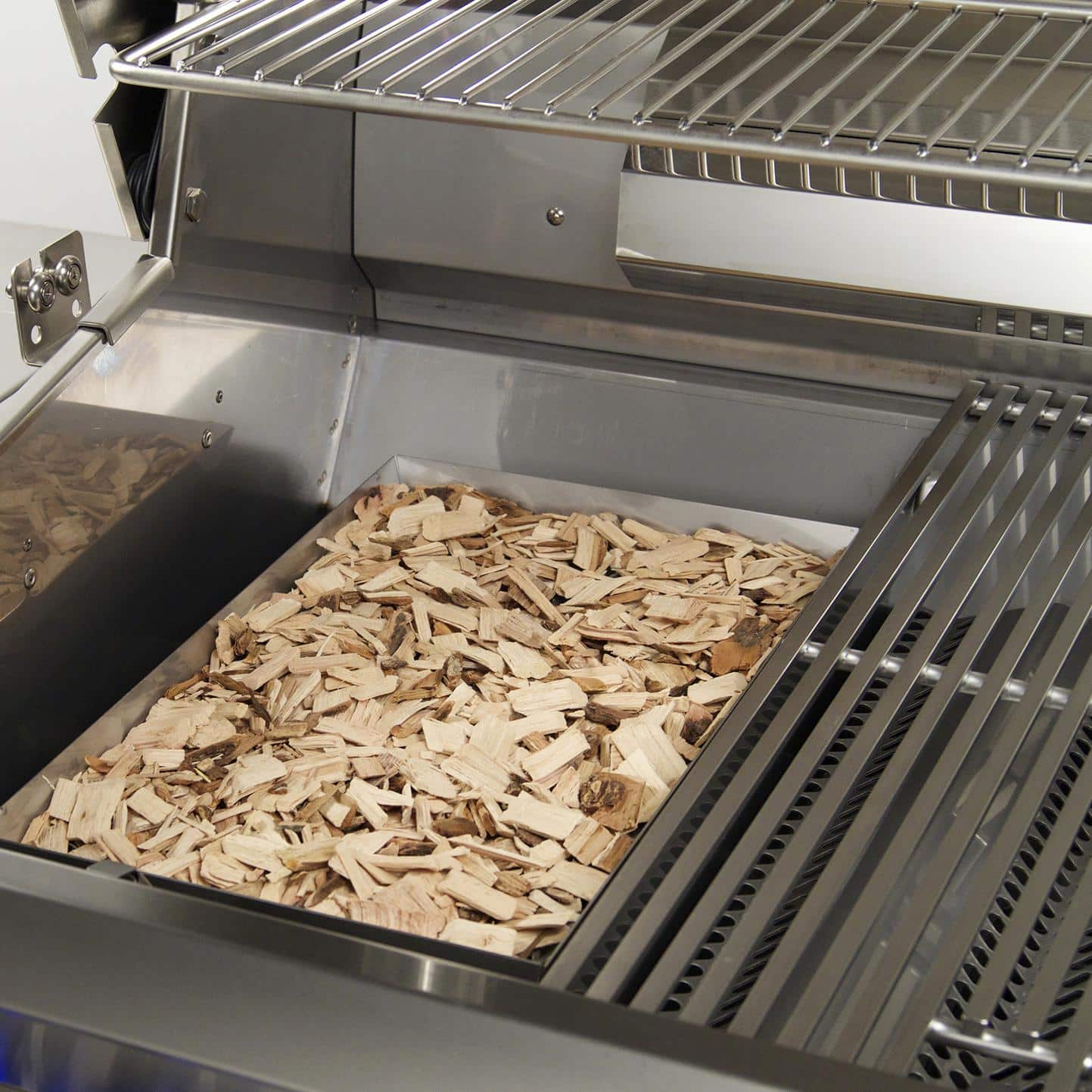

• Woodchip Smoker Drawer: Includes a built-in premium stainless steel smoker box equipped with its own dedicated 3,000 BTU burner to easily introduce authentic hardwood smoke flavor into any culinary cook.

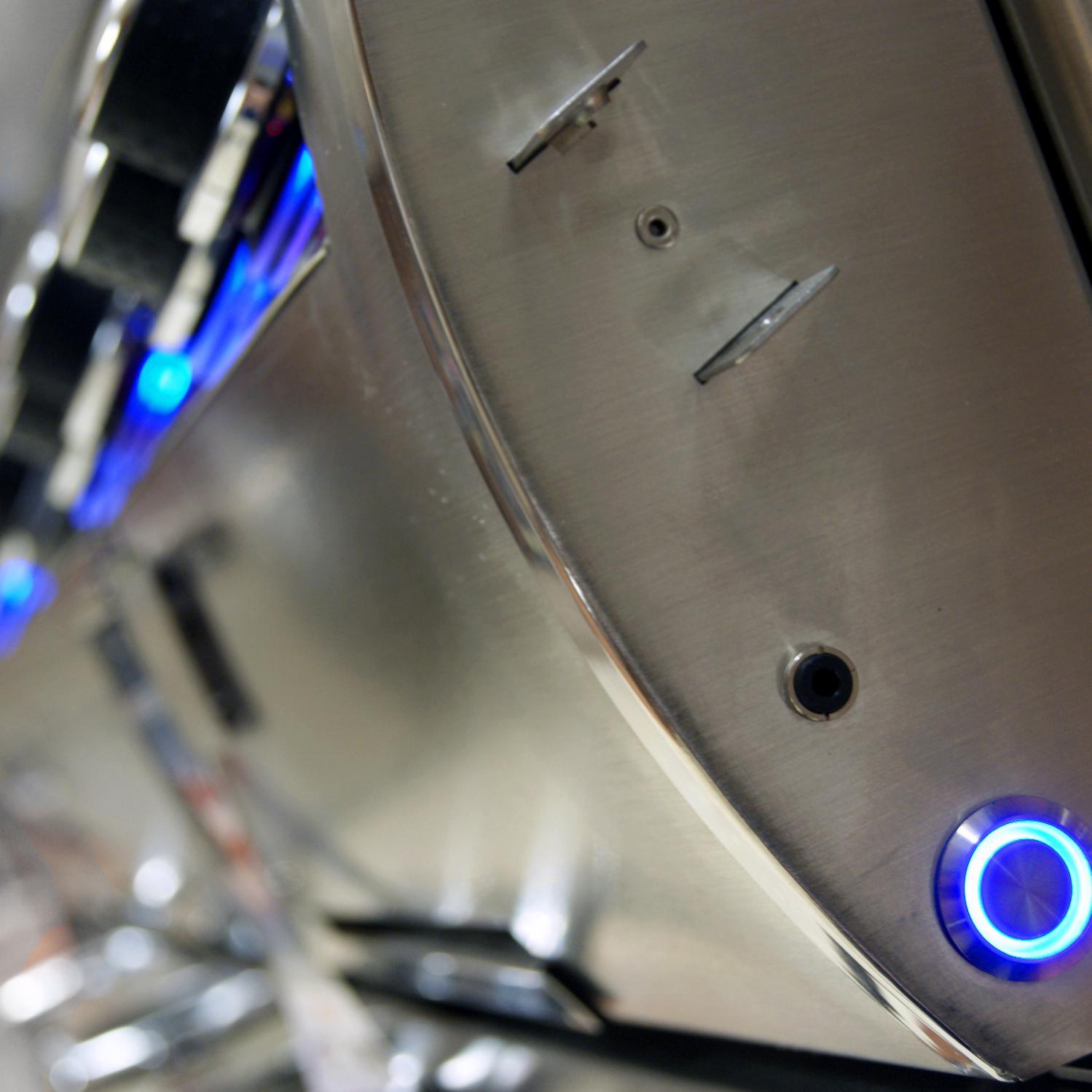

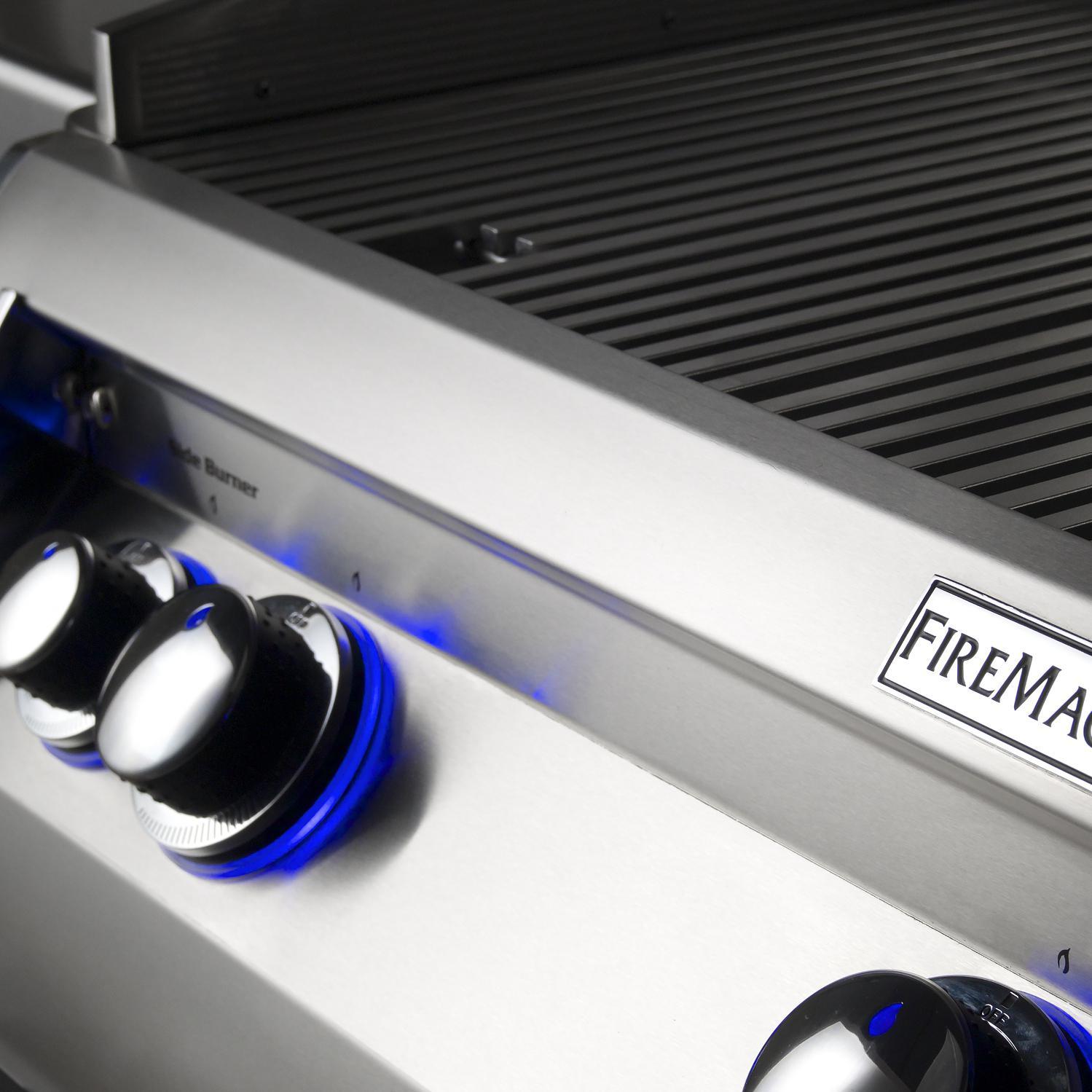

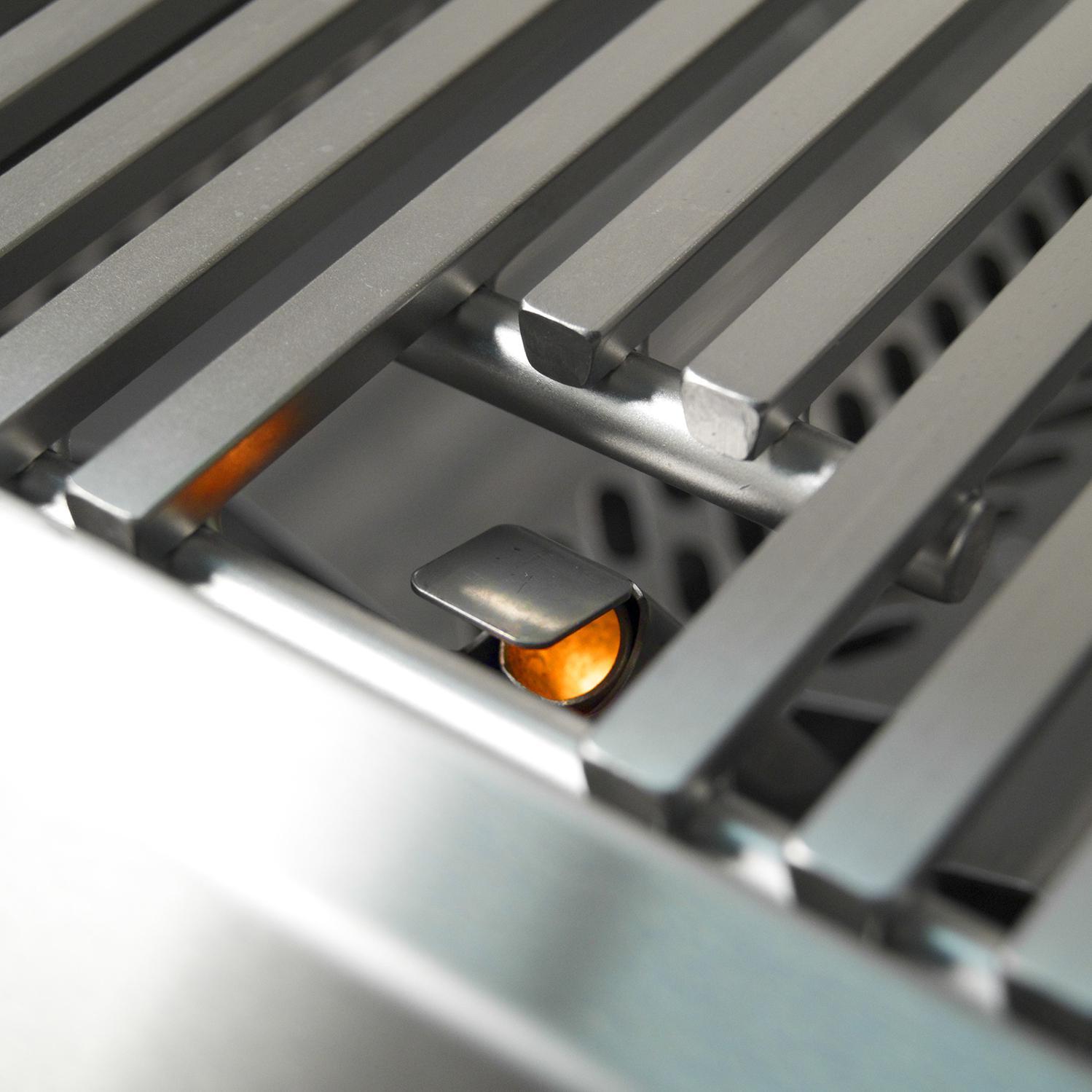

• Evening Ambiance & Hot Surface Ignition: Features 12V AC push-to-light electronic hot surface igniters that light the gas instantly under any weather condition, backed up by reliable mechanical flash tubes. For night grilling, the interior is illuminated by dual angled halogen lamps, while the mirror-polished control knobs feature safe blue LED backlighting that glows red when active.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Footprint: 792 square inches (Dimensions: 36” Wide x 22” Deep)

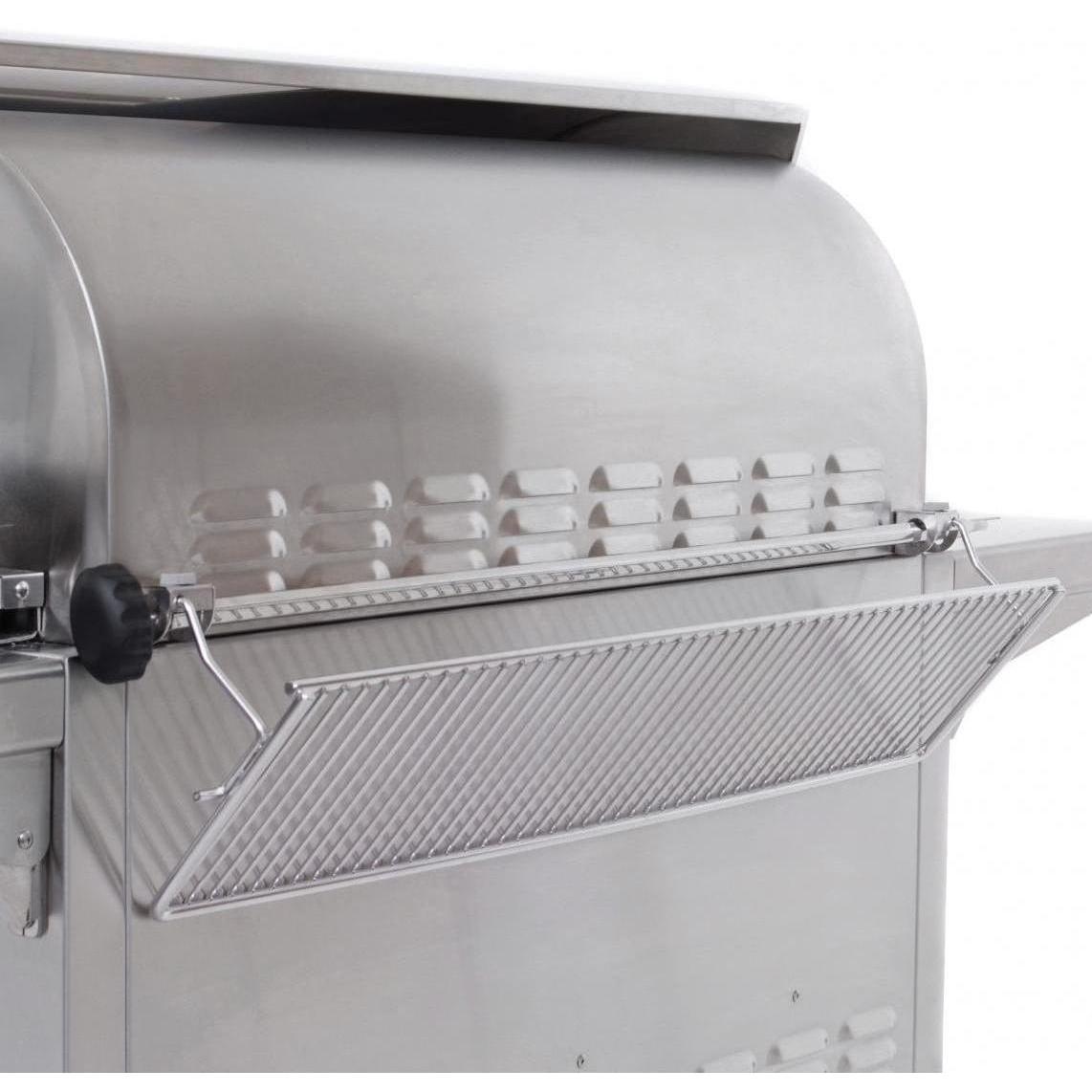

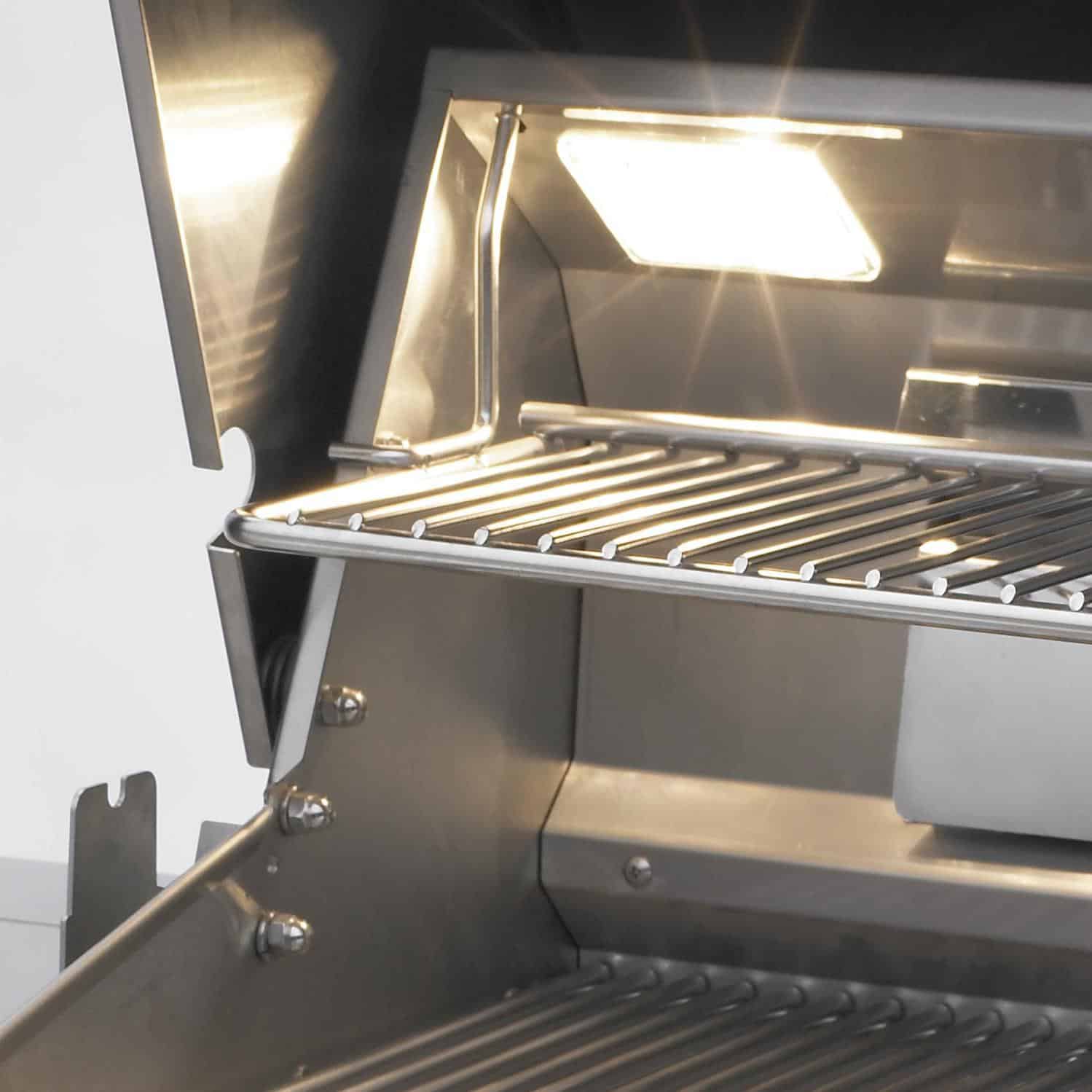

• Secondary Warming Rack Area: 288 square inches (Dimensions: 36” Wide x 8” Deep)

• Total Combined Cooking Space: 1,080 square inches (Accommodates approximately 28 to 30 standard burger patties simultaneously)

• Primary Burner Output Rating: 96,000 BTUs total capacity across the main surface

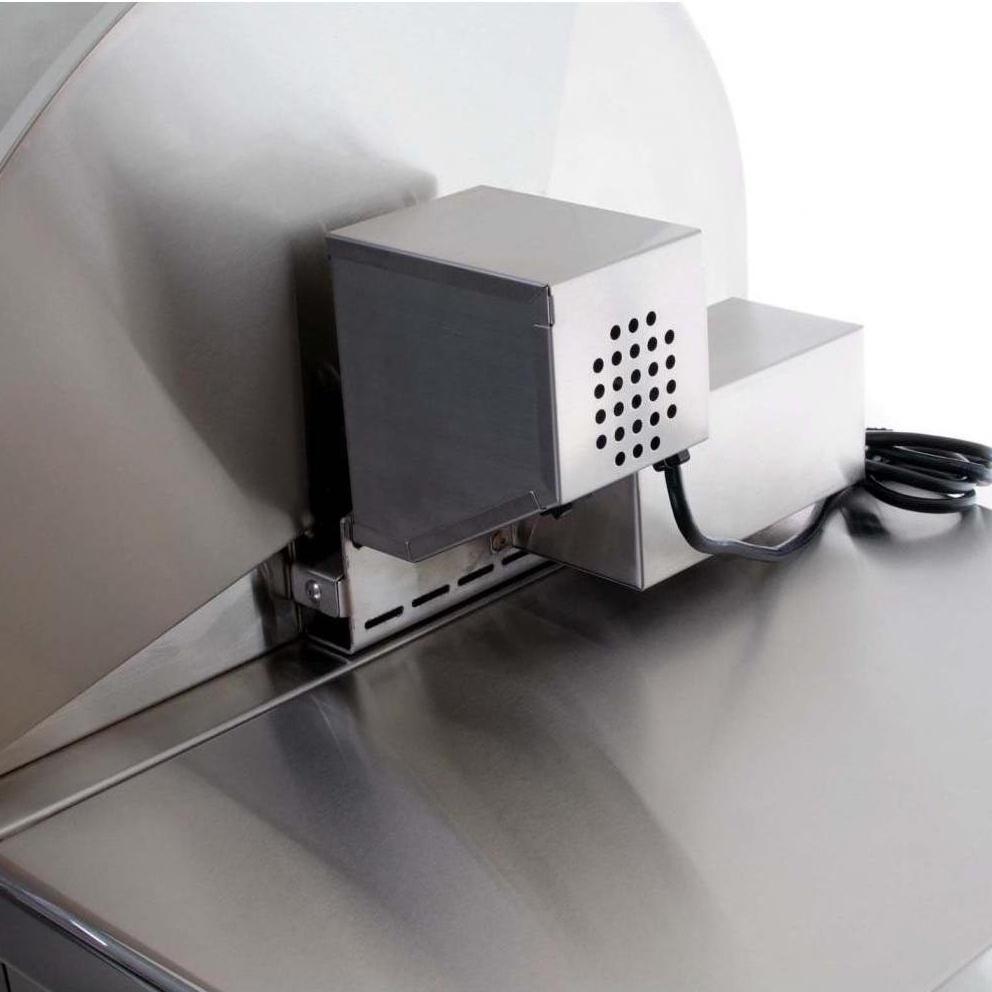

• Recessed Backburner Rating: 13,000 BTUs (Includes high-torque motor, spit rod, meat prongs, and counter-balance)

• Mandatory Enclosure Cutout Dimensions: 37” Wide x 23 1/2” Deep x 11 1/2” High

• Overall Assembled Dimensions: 39" Wide x 29 3/4" Deep x 27" High

• Total Product Net Weight: 275 lbs

• Electrical Service Line Drop Required: Requires a standard 110V/120V AC ground connection to power the touchscreen digital monitor, internal halogen lamps, backburner grids, and back-lit safety knobs.

Logistics, Configurations, & Factory Warranty

• Fuel Utility Customization: Shipped fully calibrated and pre-configured from the factory floor for either Natural Gas (E790i-8E1N-W) or Liquid Propane (E790i-8E1P-W) utility connections.

• Left-Side Sear Burner Upgrade: Buyers can choose to replace the standard left-side cast burner with a factory-installed high-intensity Infrared Sear Burner for restaurant-quality flash searing.

• Premium Drip Tray System: Features a massive, easy-glide drip tray mounted on smooth roller ball bearings for effortless cleaning, designed to work perfectly with disposable foil tray liners to eliminate grease pan flare-ups.

• Fire Magic Legendary Industry Warranty: * Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear cooking grids, and the primary stainless steel structural housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner liners, manifold assemblies, and backburner elements.

  • 5-Year Protection: Stainless steel flavor grids and charcoal/smoker baskets.

  • 1-Year Protection: Touchscreen electronic circuits, wire harnesses, halogen bulb assemblies, and ignition components.

  • Labor Coverage: Backed by a 2-year factory labor allowance program to aid with field service repairs.
