Fire Magic Aurora A430i 24" Built-In Gas Grill

Fire Magic Aurora A430i 24" Built-In Gas Grill

The Fire Magic Aurora A430i 24" Built-In Gas Grill with Analog Thermometer (A430i) is a compact, high-performance luxury outdoor cooking appliance proudly engineered and manufactured in the USA. Borrowing many of the advanced engineering traits found in Fire Magic's flagship Echelon Series, the Aurora A430i is specifically sized for smaller outdoor kitchens, patio spaces, or urban backyards that require elite, commercial-grade thermal power without taking up excessive island footprint.

Constructed entirely from premium commercial-grade 304 stainless steel, it delivers top-tier durability, heat efficiency, and sleek style.

Performance Engineering & Key Features

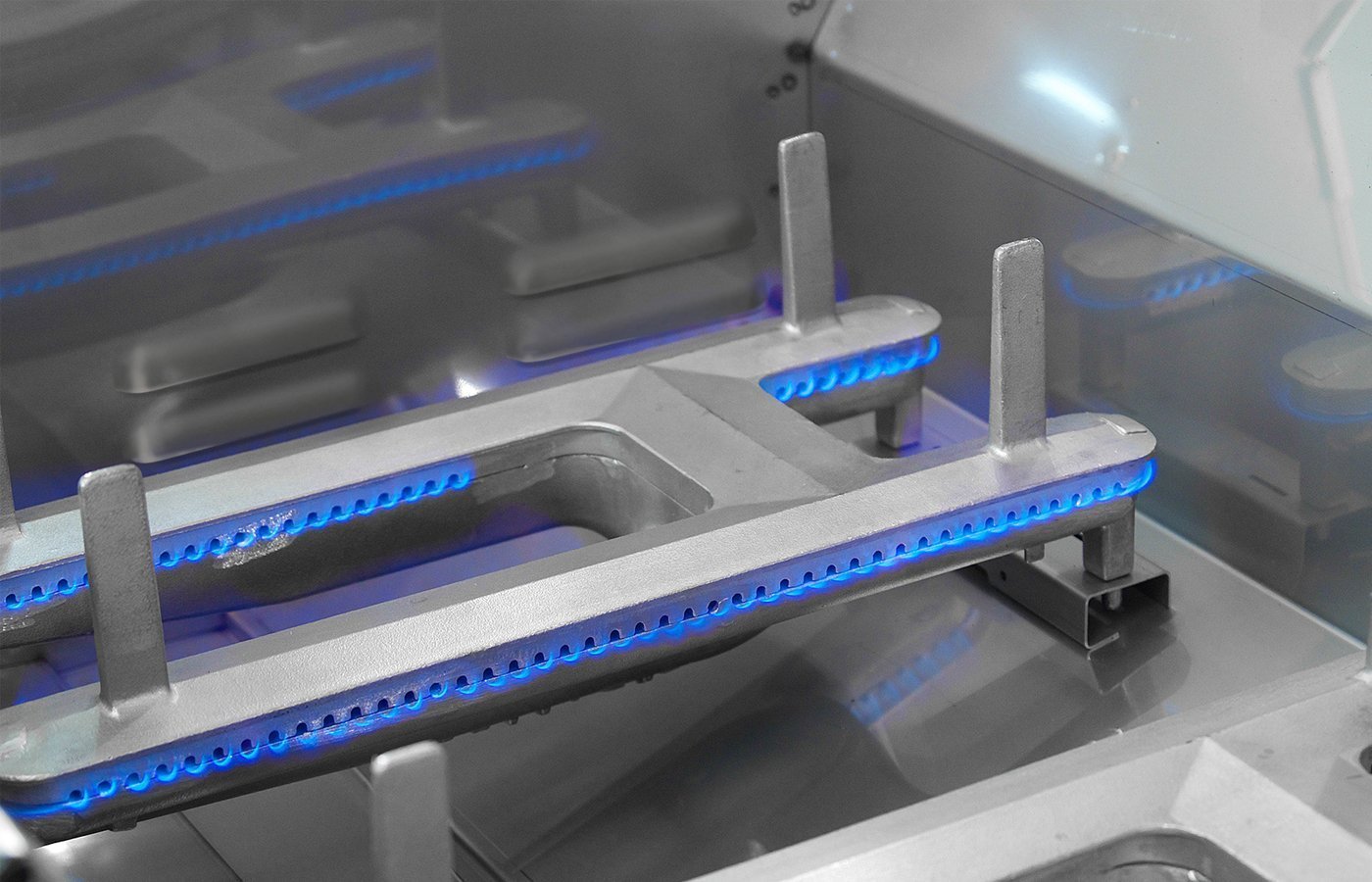

• Cast Stainless Steel E-Burners: Powered by two heavy-duty "E" burners cast from 1/4-inch thick premium 304 stainless steel. Weighing up to 12 lbs each, these robust burners output a combined 50,000 BTUs and feature precision porting alongside an integrated protective top lip to prevent falling grease and carbon debris from clogging the flame.

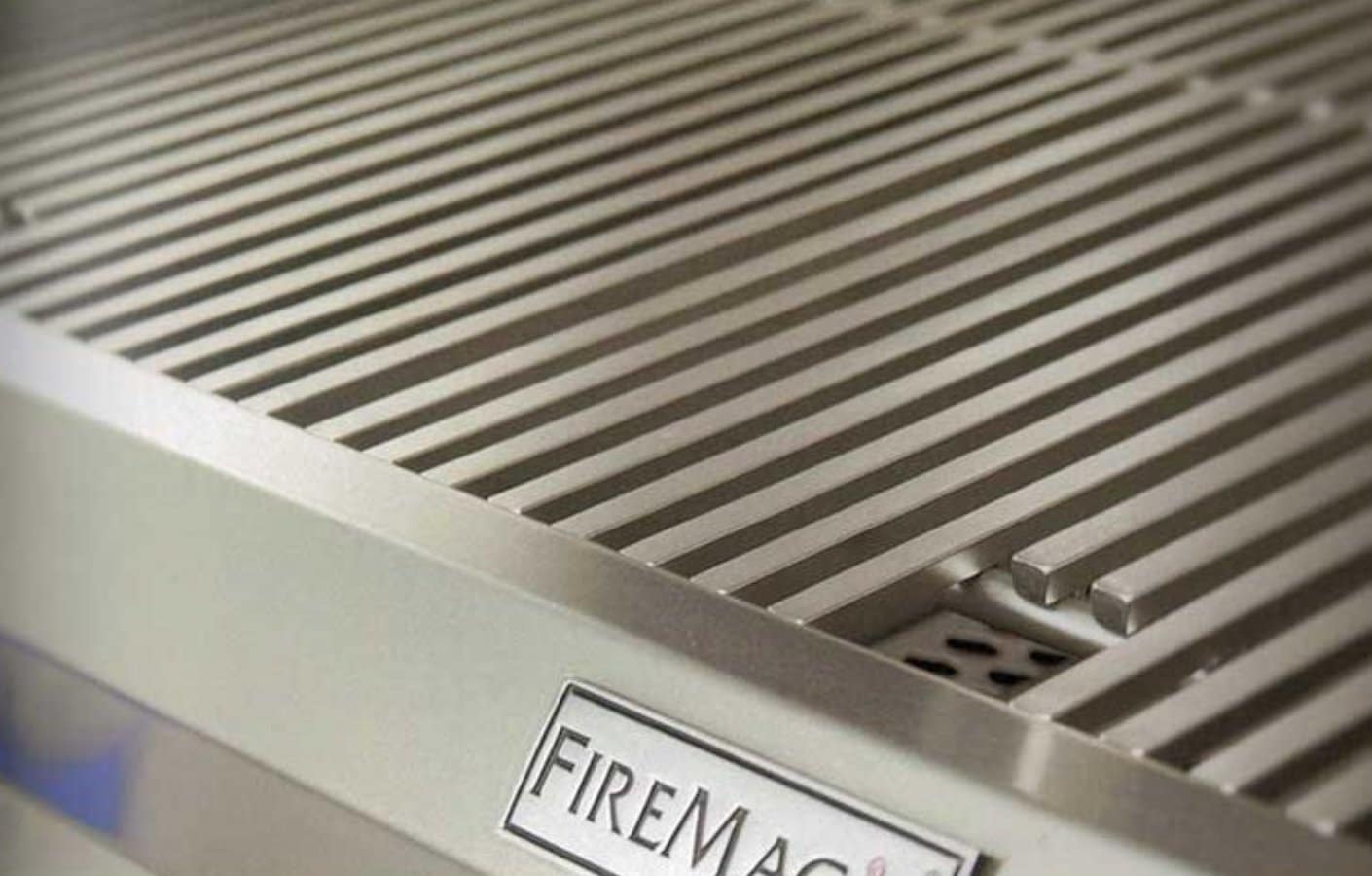

• Patented Diamond Sear Cooking Grids: Equipped with patented trapezoidal-shaped stainless steel grids. The bars feature a smooth, flat top measuring over 0.35 inches wide to cover maximum surface area. This maximizes direct thermal transfer to food, ensuring significantly faster cook times, higher fuel efficiency, and uniform steakhouse-tier sear lines.

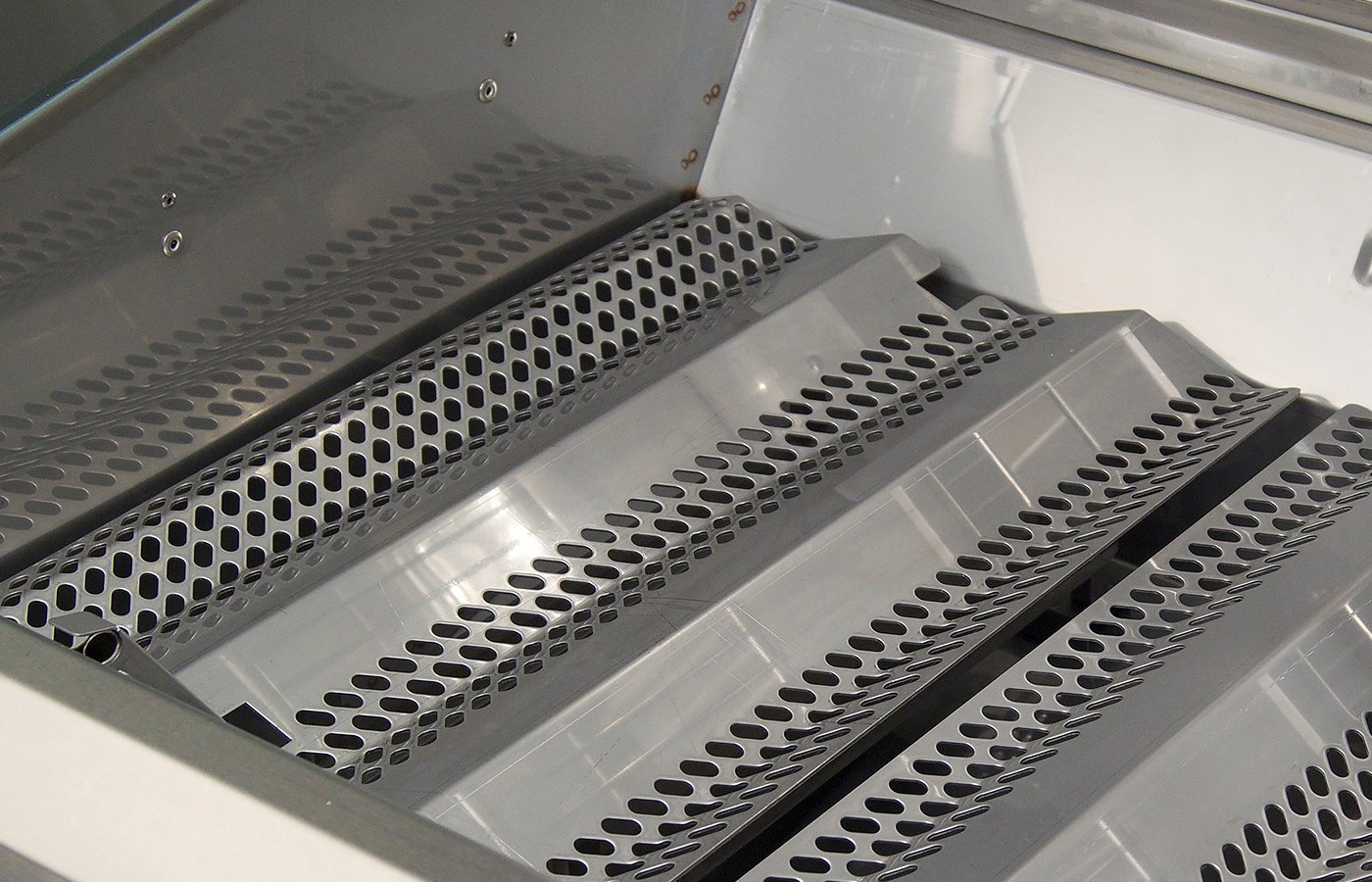

• High-Efficiency Flavor Grids with Separators: Positioned directly over the main burners, these 16-gauge stainless steel flavor grids distribute heat evenly across the grilling surface while instantly vaporizing food juices to infuse natural barbecue smoke back into your food. Removable stainless steel heat zone separators allow you to divide the cooking grid into independent zones.

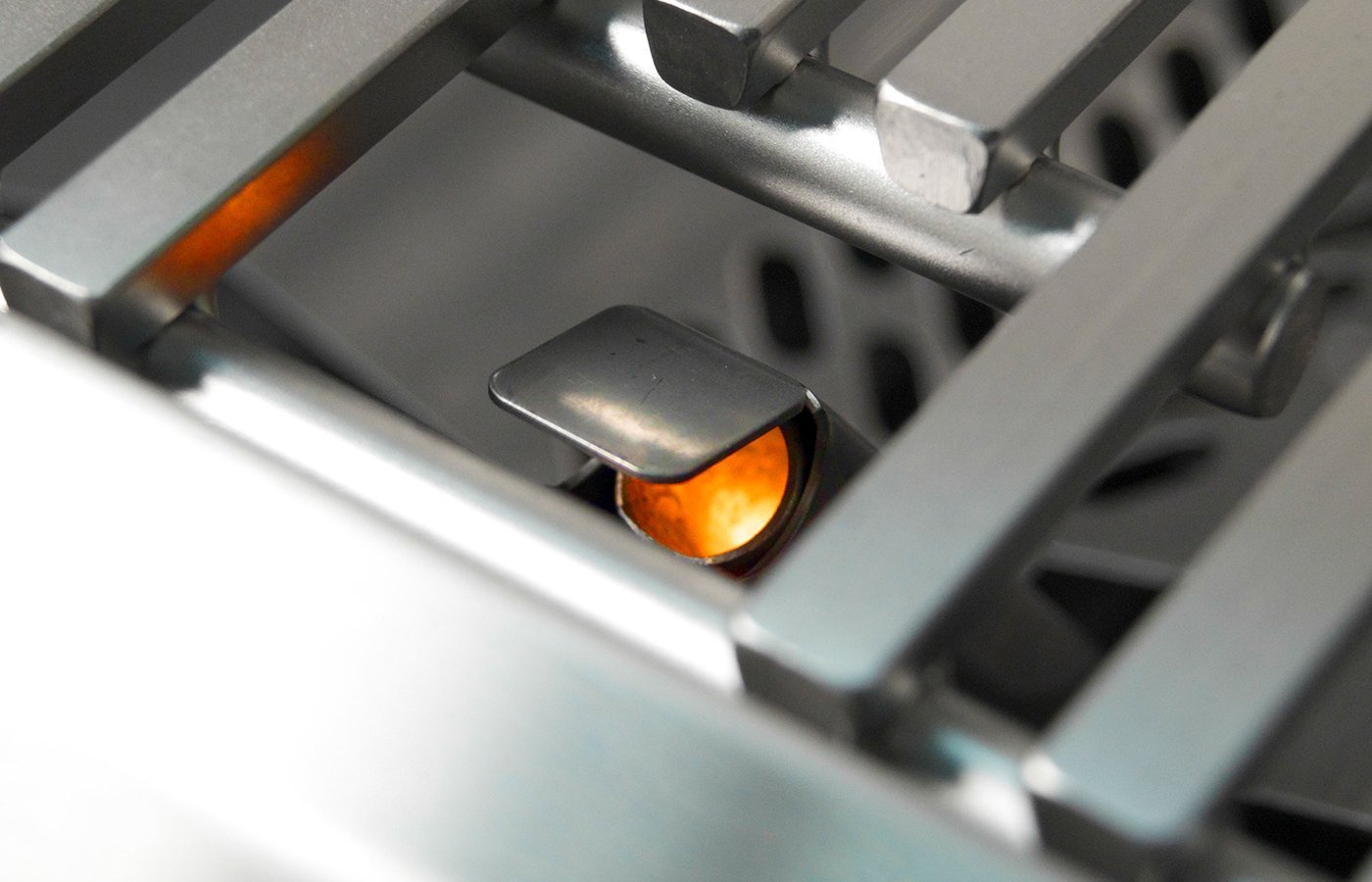

• Advanced Electric Hot Surface Ignition: Features a 120V AC electric push-to-light hot surface ignition loop. This system delivers fast, highly reliable lighting under harsh weather conditions and includes dedicated flash tubes for emergency manual backup ignition.

• 90-Degree Spring-Assisted Hood: Built with a double-walled, heavy-gauge teardrop hood designed for superior thermal retention. Supported by a specialized spring-assist mechanism, the heavy lid opens smoothly to a full 90 degrees to optimize access and rear exhaust ventilation.

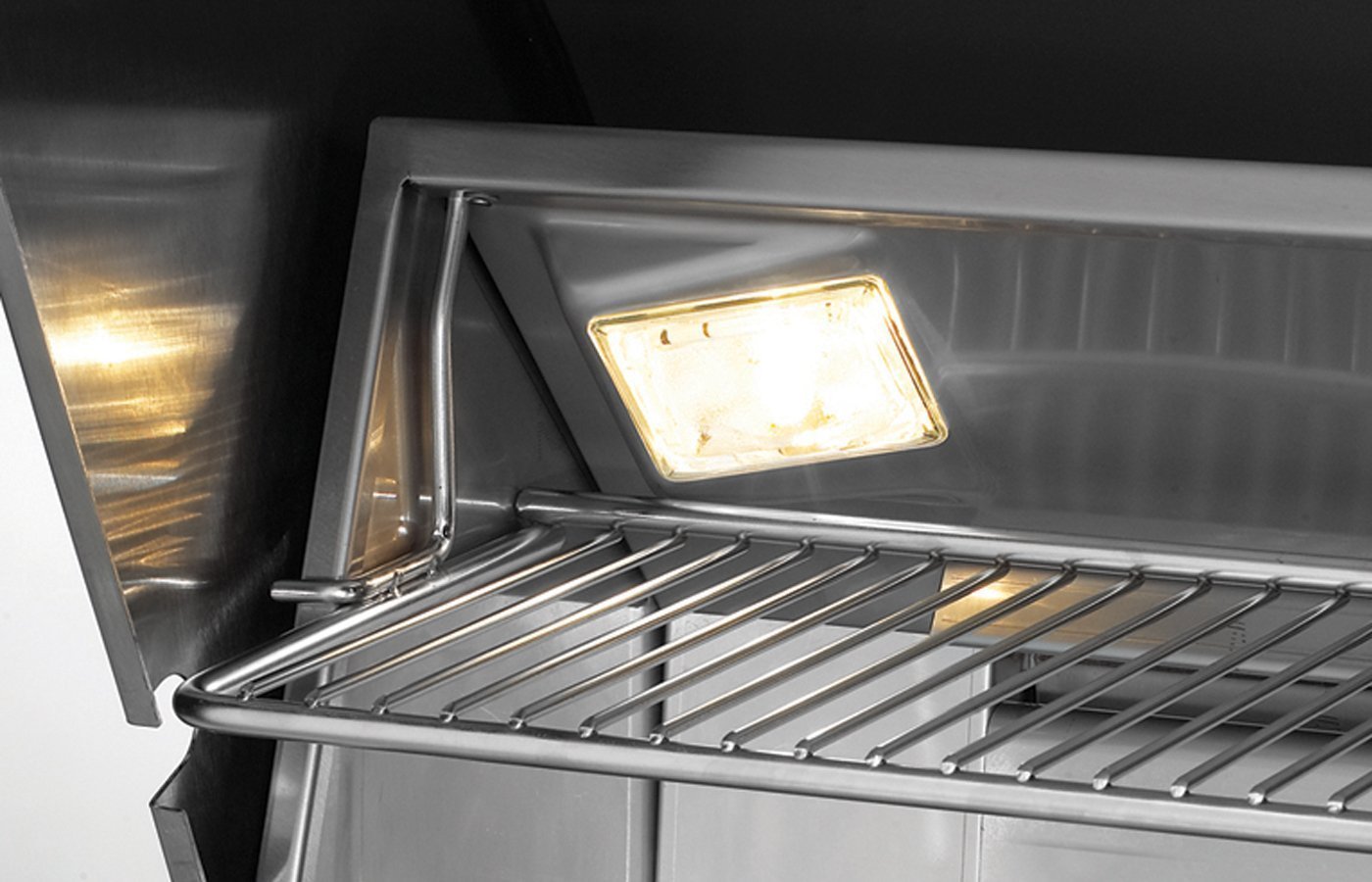

• Evening Ambiance & Backlit Knobs: Outfitted with dual integrated, angled interior 12V halogen lights for complete visibility during nighttime grilling. The mirror-polished, seamless control panel features back-lit comfort-grip safety knobs that illuminate with a safe blue LED glow, automatically transitioning to red when that specific burner is active.

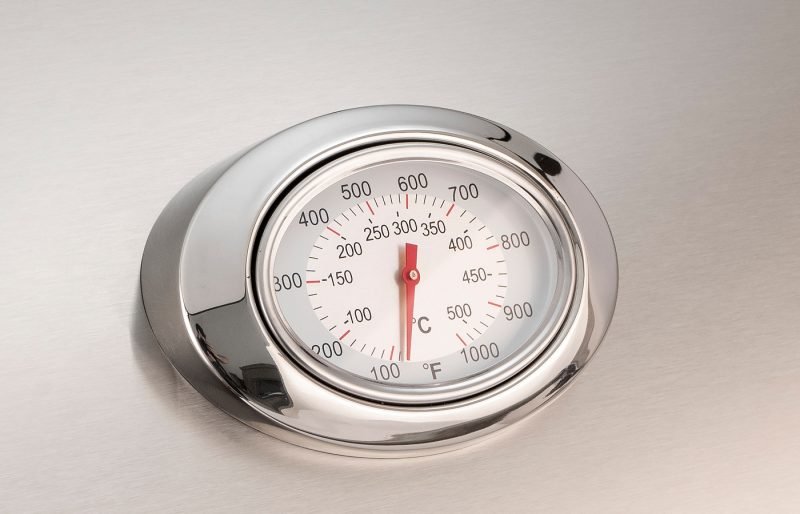

• Hood-Embedded Analog Thermometer: Features a large, premium analog dial gauge wrapped in a polished stainless steel bezel embedded into the hood. It reads up to 1000°F and is angled forward for clear, continuous monitoring without losing valuable convective heat by lifting the lid.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Footprint: 432 square inches (Dimensions: 24” Wide x 18” Deep)

• Secondary Warming Rack Area: 192 square inches (Dimensions: 24” Wide x 8” Deep)

• Total Combined Cooking Space: 624 square inches (Accommodates approximately 15 standard burger patties simultaneously)

• Primary Fuel Performance Rating: 50,000 BTUs total capacity across the main surface

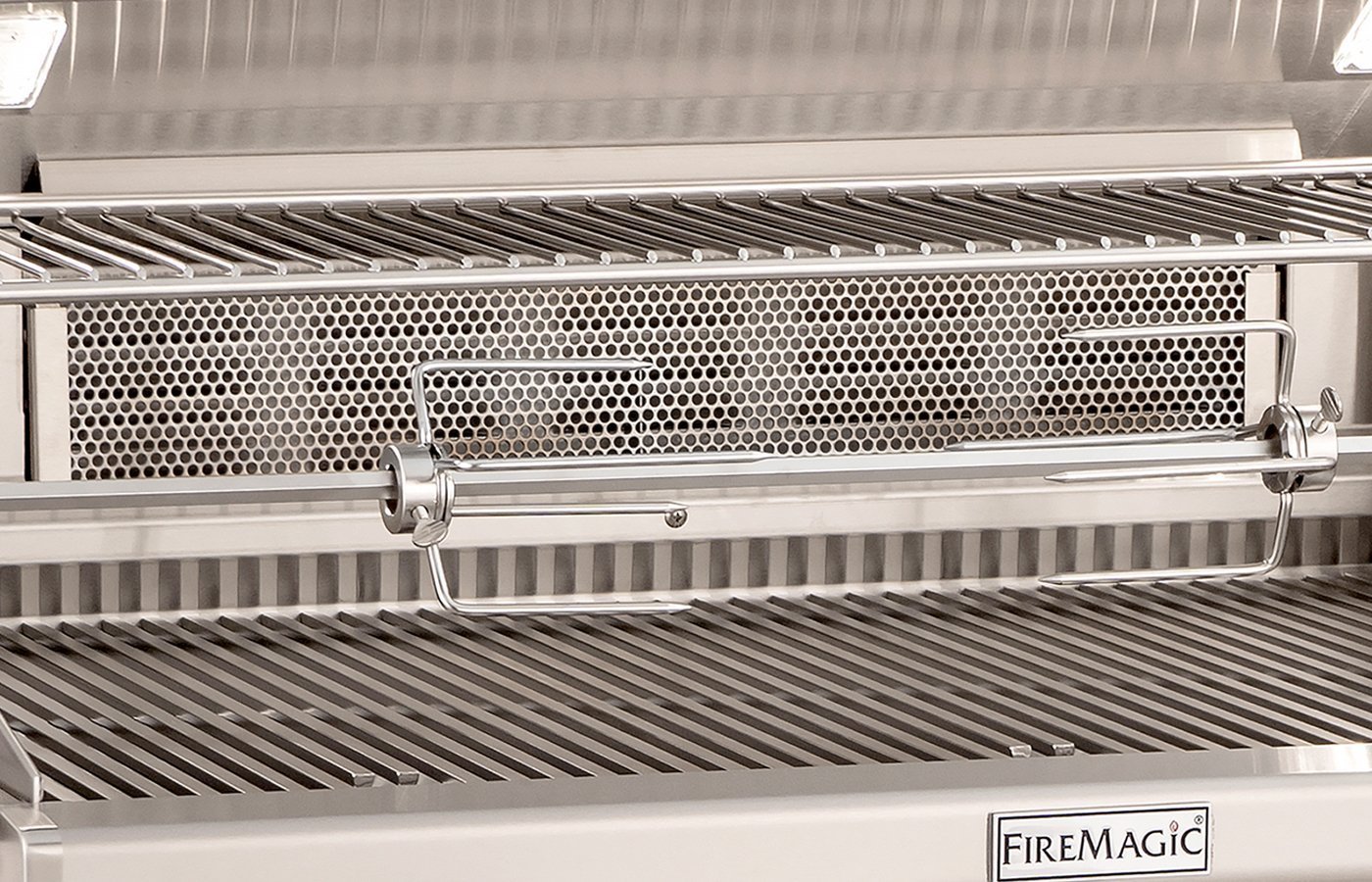

• Optional Infrared Backburner Rating: Recessed rear stainless steel rotisserie mesh burner pushing an additional 10,000 BTUs

• Mandatory Enclosure Cutout Dimensions: 25 1/2” Wide x 19 1/2” Deep x 11 1/2” High

• Electrical Service Line Drop Required: Requires a standard 120V AC ground line connection to power the hot surface ignition, interior halogens, and back-lit control dials.

Logistics, Configurations, & Factory Warranty

• Fuel Utility Customization: Available pre-configured and calibrated from the factory floor for either Natural Gas (A430i-7EAN) or Liquid Propane (A430i-7EAP) utility lines.

• Modular Upgrade Options: Can be optionally upgraded at checkout to include a dedicated stainless steel left-side infrared sear burner or configured with the full heavy-duty rotisserie kit (including a counter-balance spit rod, meat prongs, and a high-torque 110V motor).

• Fire Magic Elite Lifetime Warranty: Fire Magic premium gas appliances are a lifetime asset backed by robust factory protection:

  • Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear grids, and the primary stainless steel housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner liners, manifold assemblies, and backburner elements.

  • 5-Year Protection: Stainless steel flavor grids.

  • 1-Year Protection: Electrical components, wiring harnesses, and ignition systems.

  • Labor Allowance: Supported by a 2-year factory labor allowance program to assist with residential field service repairs.
