Fire Magic Aurora A830i Built-In Gas & Charcoal Combo Grill

Fire Magic Aurora A830i Built-In Gas & Charcoal Combo Grill

The Fire Magic Aurora A830i Built-In Gas & Charcoal Combo Grill with Analog Thermometers (A830i-CB) is a premium, heavy-duty outdoor cooking appliance proudly manufactured in the USA. Engineered for ultimate versatility, it combines the fast, precise temperature management of an advanced gas grill with the deep, rich flavor profile of a dedicated charcoal unit under a dual independent hood design. It acts as a massive culinary station, implementing Fire Magic's signature "5 Ways to Cook" system to allow homeowners to grill, smoke, sear, rotisserie cook, and charcoal grill within a singular footprint.

Dual-Fuel Engineering & Key Performance Features

• The Gas Side Infrastructure: Powered by two exclusive E-shaped burners cast from 1/4-inch thick premium 304 stainless steel. These heavy-duty burners output a combined 50,000 BTUs and feature heat zone separators to maximize distinct temperature control across independent grilling grids.

• The Charcoal Side Infrastructure: Outfitted with an easy-access front loading door to quickly replenish charcoal or wood chunks during a live cook without disturbing the main cooking grid. It utilizes an internal crank handle that allows chefs to easily raise or lower the heavy-gauge adjustable height charcoal pan to adjust distance from the heat.

• Integrated Gas Charcoal Igniter: Features a dedicated 26,000 BTU gas burner positioned right below the adjustable charcoal tray. This eliminates the need for lighter fluid by safely igniting wood chunks or charcoal briquettes with a single touch of a button.

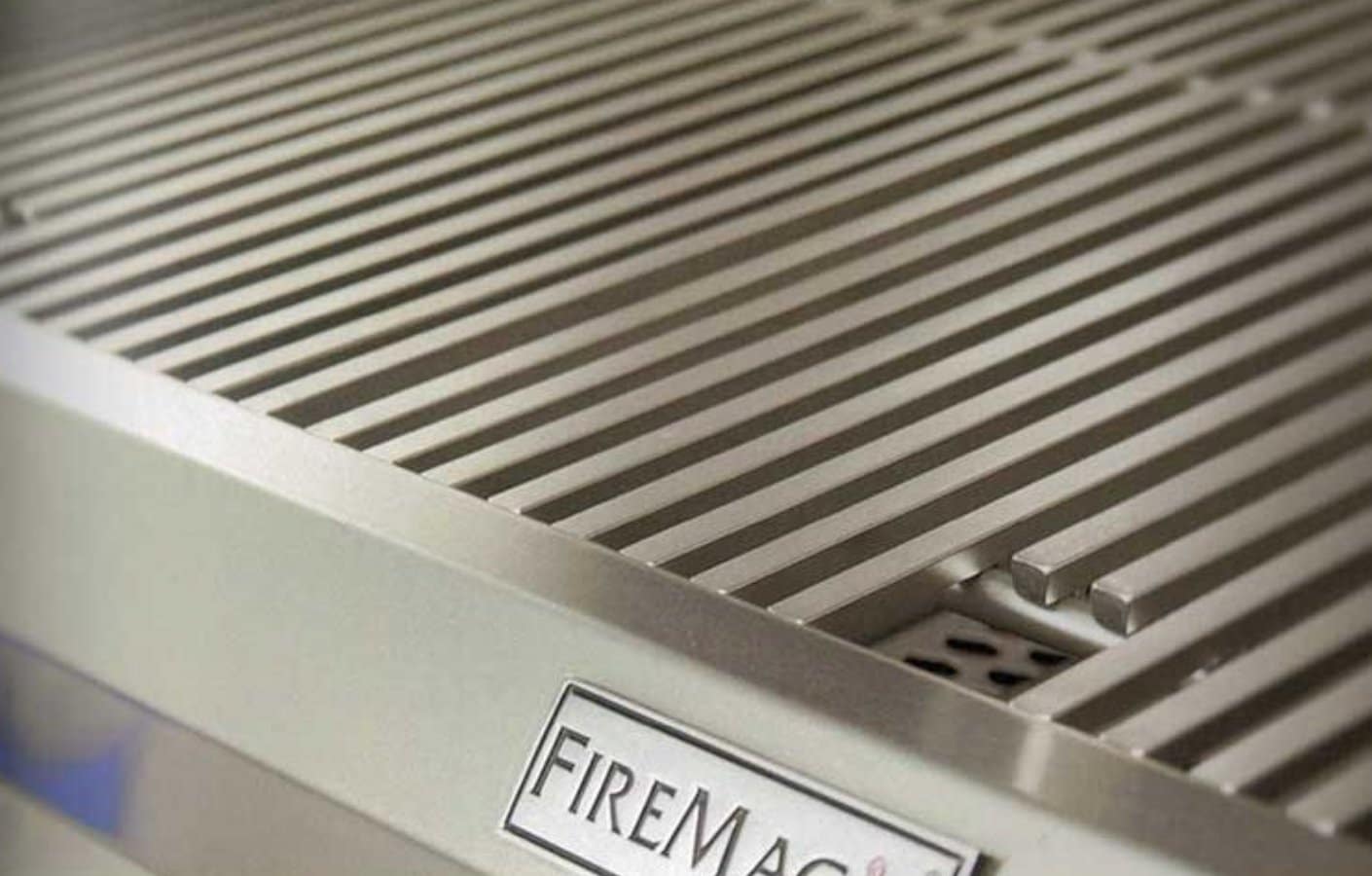

• Patented Diamond Sear Grids: Equipped completely across both fuel sides with patented trapezoidal-shaped 304 stainless steel grids. This geometry features flat-top bars over 0.35 inches wide to transfer thermal energy directly to your food, ensuring an optimal searing surface and faster cook times.

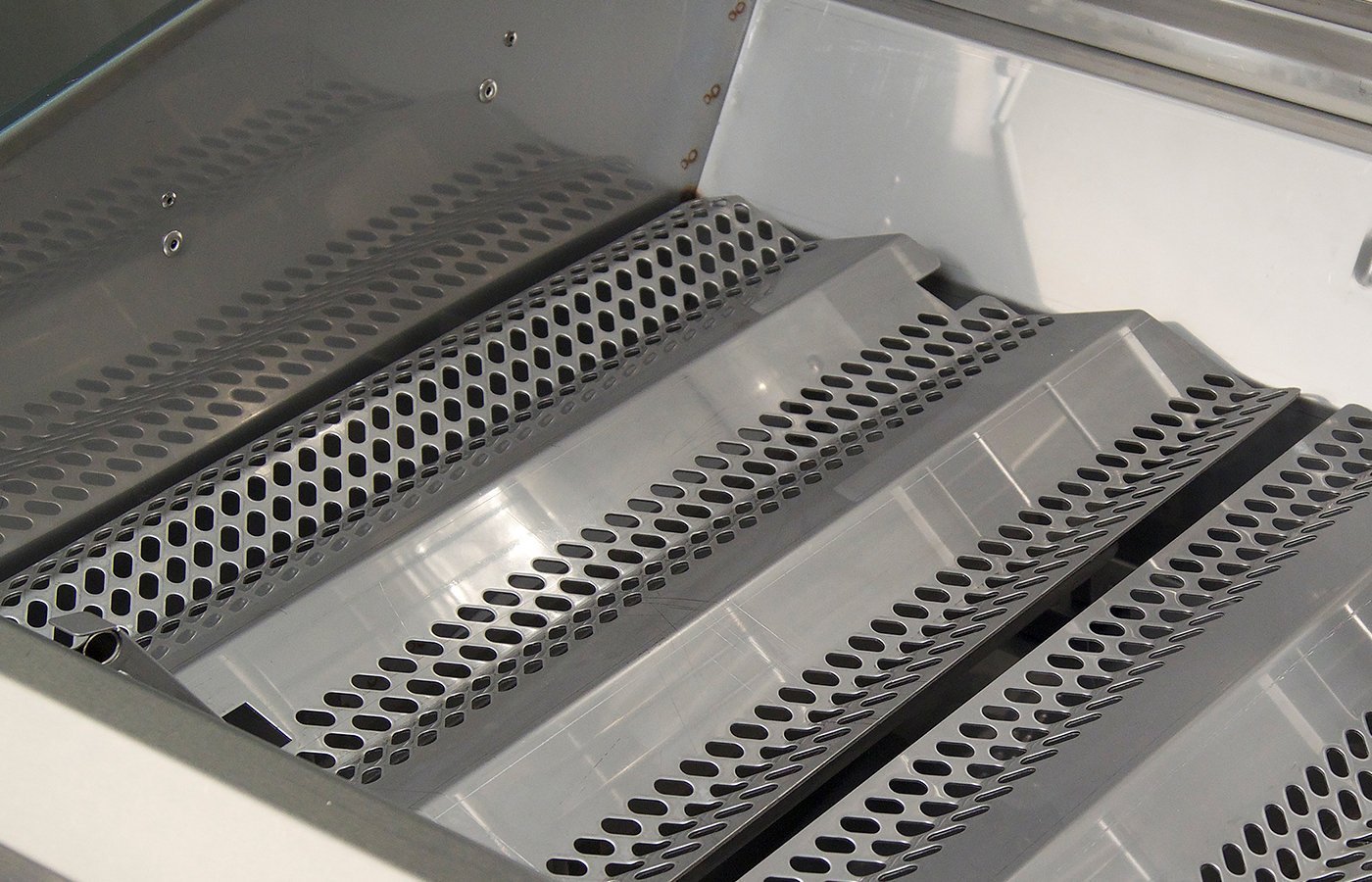

• 16-Gauge Stainless Steel Flavor Grids: Positioned precisely over the gas burners to distribute heat evenly, reduce flare-ups, and instantly vaporize food drippings to infuse natural smoke flavors back into your cook.

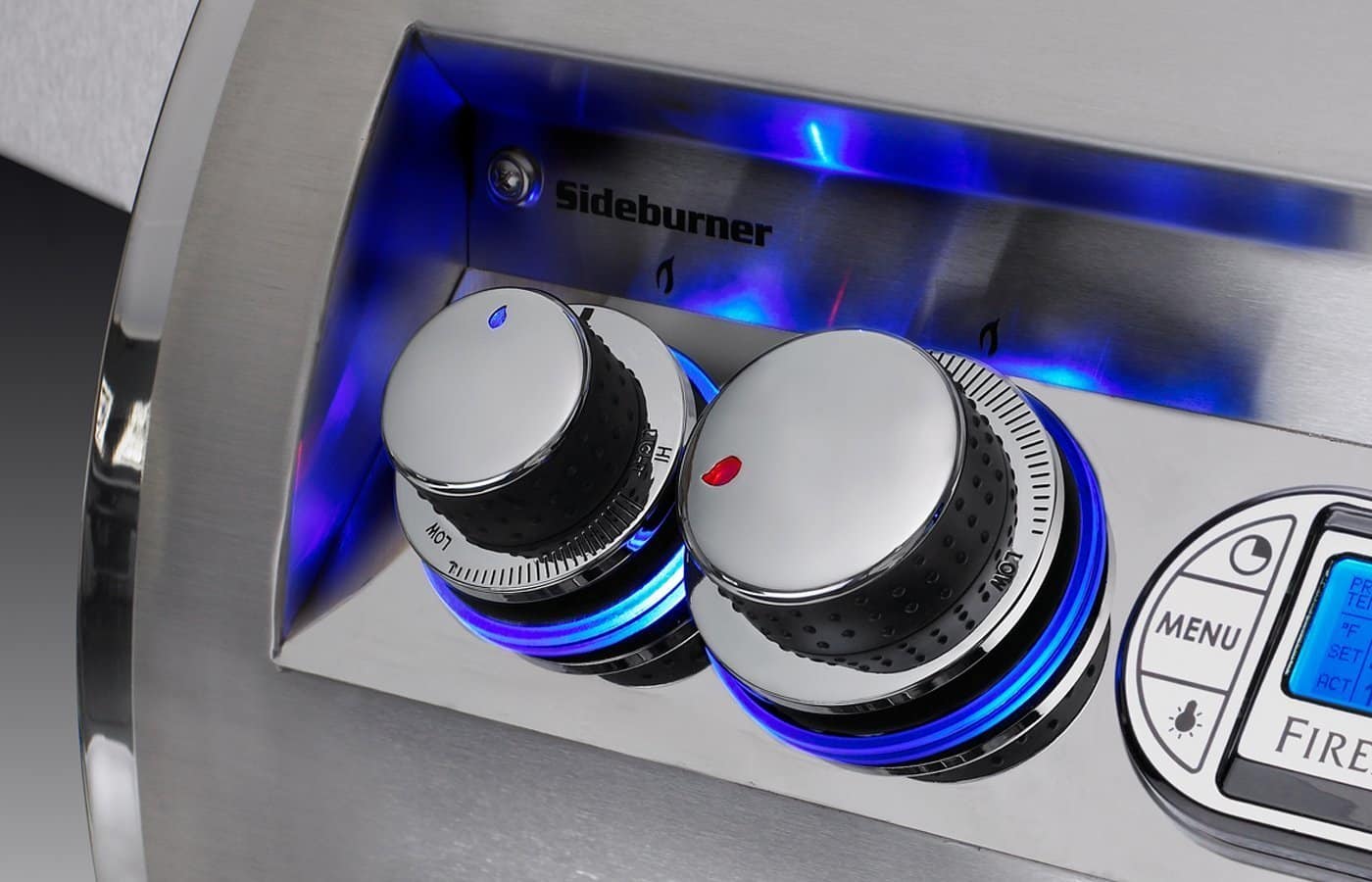

• Ambiance & Controls: Features mirror-polished, comfort-grip control knobs with built-in blue LED backlighting on the gas module. The interior cooking grid of the gas compartment is lit with dual high-output 12V interior halogen lights for evening visibility.

• Advanced Hot Surface Ignition: A reliable 120V AC direct hot surface electronic ignition system guarantees a quick startup even under adverse weather conditions.

Technical Specifications & Spatial Dimensions

• Total Cooking Grid Footprint Area: 828 square inches primary

  • Gas Grilling Section: 24” W x 18” D (432 sq. in.)

  • Charcoal Grilling Section: 22” W x 18” D (396 sq. in.)

• Secondary Warming Rack Area: 368 square inches total (Gas Side: 192 sq. in. | Charcoal Side: 176 sq. in.)

• Total Combined Cooking Space: 1,196 square inches

• Primary Fuel Performance Rating: 76,000 BTUs total (50,000W Gas Main + 26,000W Charcoal Igniter)

• Optional Infrared Backburner Rating: Recessed rear rotisserie mesh burner pushing 13,000 BTUs

• Mandatory Island Cutout Dimensions: 50 1/4” Wide x 19 1/2” Deep x 11 1/2” High

• Overall Physical Frame Dimensions: 52 1/4" Wide x 30" Deep x 25 1/8" High

• Total Product Uncrated Weight: 300 lbs

• Electrical Service Line Drop Needed: Requires a dedicated 120V AC power connection to support the electronic lighting, control knobs, and lighting transformers.

Logistics, Upgrades, & Factory Warranty Support

• Flexible Checkout Options: Available in both pre-configured Natural Gas or Liquid Propane (LPG) variants. Buyers can dynamically upgrade the framework to include a dedicated stainless steel infrared mesh backburner + heavy-duty rotisserie kit at checkout.

• Industry-Leading Structural Protection: Backed by Fire Magic's premium factory warranty coverage:

  • Lifetime Warranty: Cast 304 stainless steel burners, stainless steel housings, and Diamond Sear grids are covered for the duration of ownership.

  • 15-Year Warranty: Brass control valves, manifolds, and backburner assemblies.

  • 5-Year Warranty: Stainless steel flavor grids, infrared burners, and charcoal grill assemblies.

  • 1-Year Warranty: Electronic hot surface ignition lines, LED wire loops, and analog thermometers.

  • Labor Coverage: Includes a 2-year factory labor allowance program to aid with field repairs.
