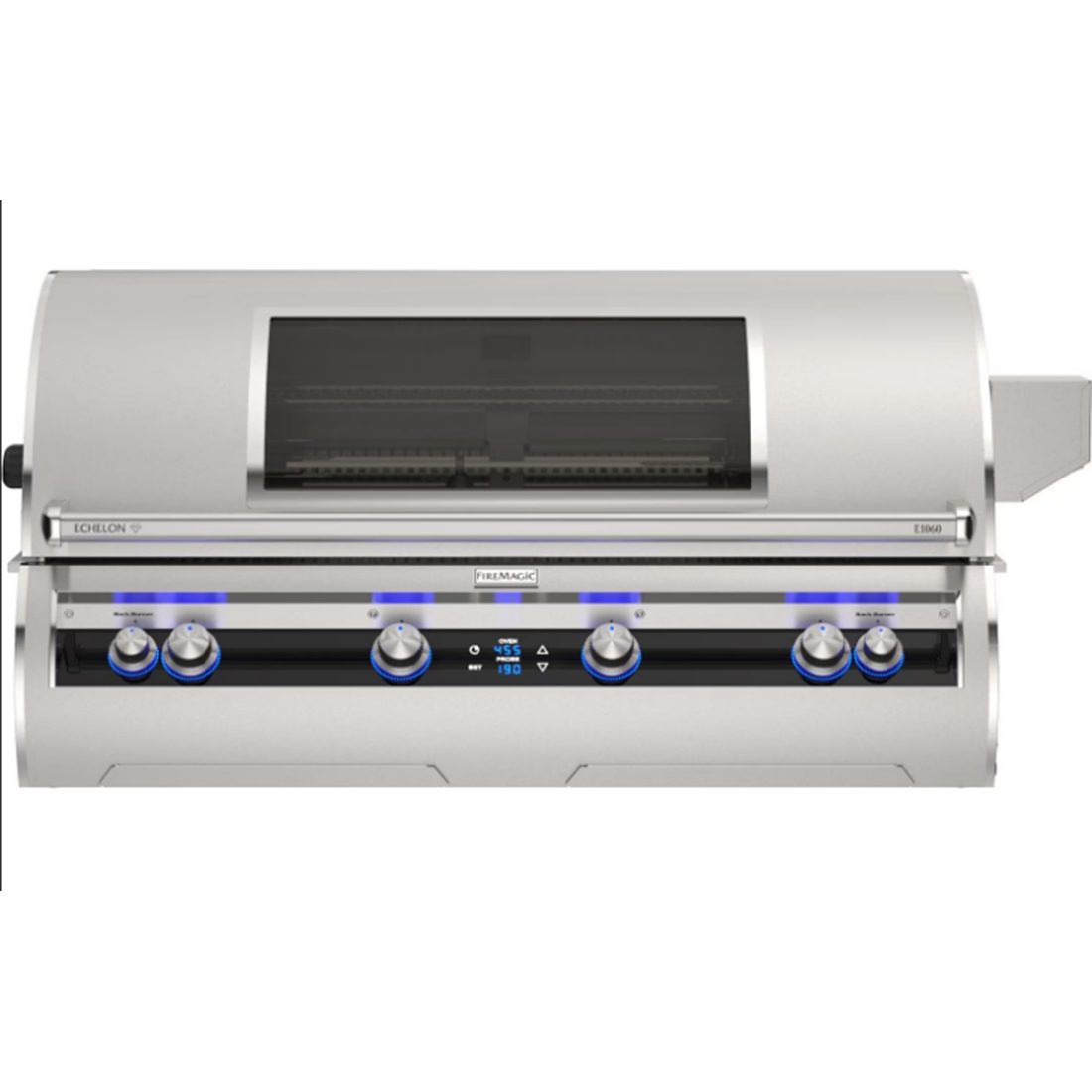

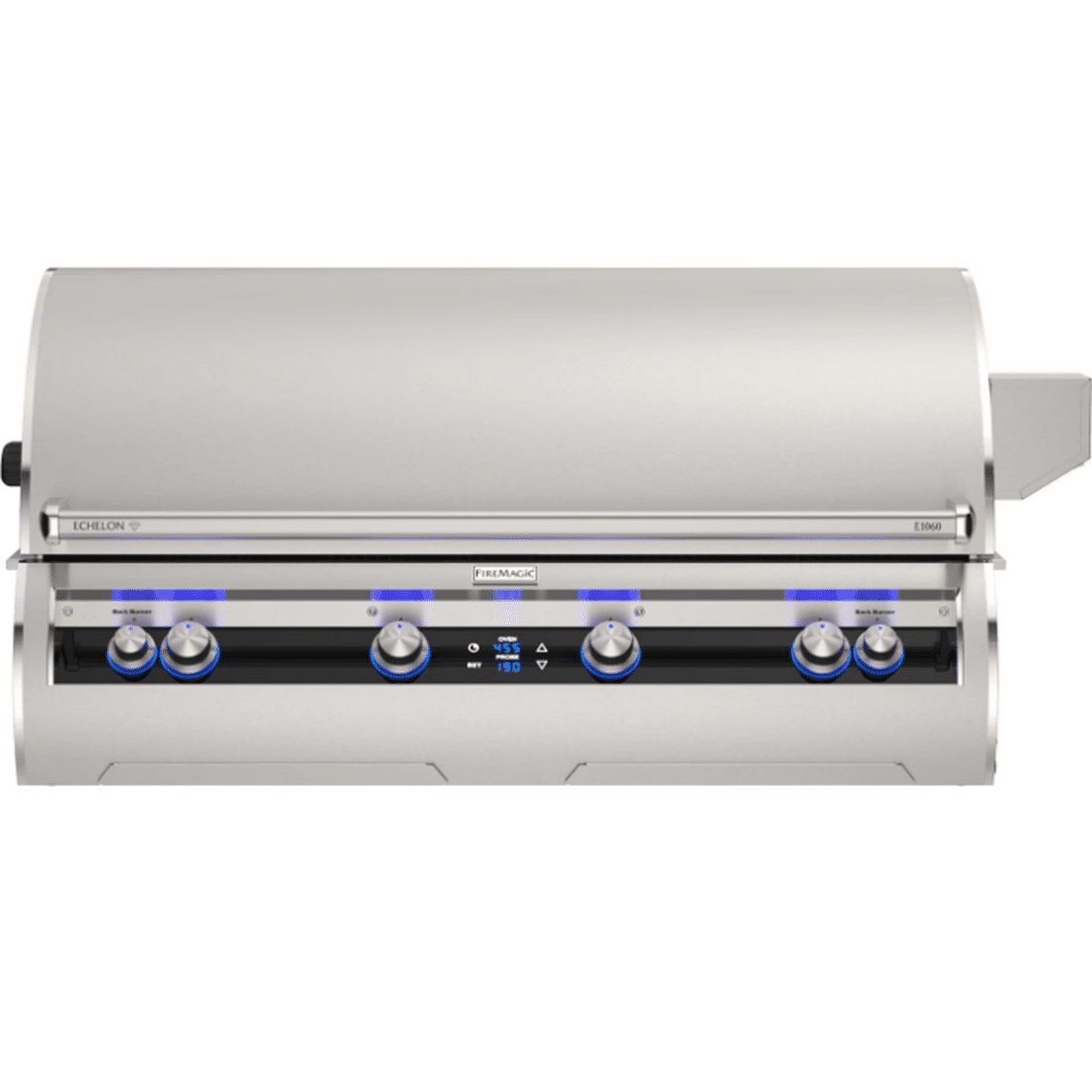

Fire Magic Echelon Diamond E1060i 48" Built-In Gas Grill (Digital Thermometer)

Fire Magic Echelon Diamond E1060i 48" Built-In Gas Grill (Digital Thermometer)

The Fire Magic Echelon Diamond E1060i 48" Built-In Gas Grill with Digital Thermometer (E1060i-9EIN / E1060i-9EIP) represents the absolute zenith of luxury, high-capacity engineering, and technological innovation in the premium outdoor appliance sector. Proudly designed, engineered, and manufactured in the USA from heavy-gauge, commercial-grade 304 stainless steel, this massive 48-inch built-in model delivers over 1,400 square inches of total cooking real estate for serious outdoor chefs and large-scale residential entertaining.

The signature hallmark of the 9E Series is its sleek, modern black glass control panel embedded with a state-of-the-art electronic touchscreen digital thermometer, adding a high-tech architectural presence to custom luxury outdoor kitchen islands.

Performance Engineering & Luxury Features

• Touchscreen Digital Cooking Control: Features a flush, under-glass electronic touchscreen digital thermometer display on the front face of the grill. It displays real-time ambient oven zones and interfaces perfectly with an included plug-in stainless steel meat probe to accurately track core food temperatures. The system features integrated smart technology, giving you remote tracking capabilities directly via your smartphone.

• Four Cast Stainless Steel "E" Burners: Driven by four massive main burners precision-forged from 1/4-inch thick premium 304 cast stainless steel. Weighing an impressive 12 lbs each and backed by an industry-leading lifetime warranty, these robust burners output an immense combined total of 112,000 BTUs across the firebox. Each burner features an integrated top-lip shroud positioned directly above the ports to completely shield the flames from falling grease or debris.

• Patented Diamond Sear Cooking Grids: Outfitted with heavy-gauge trapezoidal 304 stainless steel grids. The bars feature a smooth, flat top measuring over 0.35 inches wide, covering more than half of the total cooking surface area. This unique geometry maximizes direct thermal surface contact with your food, ensuring it cooks significantly faster, uses less fuel, and yields uniform, restaurant-tier sear lines.

• Dual Recessed Quantum Rotisserie Backburners: Outfitted with two recessed, independent infrared rear backburners encased in heavy stainless steel mesh foam pushing out a combined 22,000 BTUs (11,000 BTUs each). It comes paired with a full heavy-duty motorized rotisserie spit rod kit, high-torque 110V motor, counter-balance weights, and meat prongs, alongside matching protective stainless steel covers for when the system is inactive.

• Dual-Fuel Charcoal/Woodchip Smoker Basket: Every Echelon Diamond grill includes a heavy-duty stainless steel charcoal and smoker basket at no additional charge. Sitting directly on top of the main gas burners for easy ignition, it allows chefs to burn lump charcoal briquettes or real wood chunks to seamlessly blend convenient gas speed with deep wood-fired flavor profiles.

• Flavor Grids with Attached Heat Zone Separators: High-efficiency 16-gauge stainless steel flavor grids cover the burner network to disperse radiant heat evenly while instantly vaporizing juices into rich barbecue smoke. Removable heat zone separators slide between each burner path, allowing chefs to establish completely isolated zones to simultaneously flash-sear thick steaks at maximum heat and slow-roast delicate foods at low heat.

• Advanced Electric Hot Surface Ignition: Features a highly reliable 120V AC push-to-light electronic hot surface ignition system. This commercial-grade setup delivers dependable lighting under harsh weather conditions and is fully backed by dedicated mechanical flash tubes for emergency manual backup lighting.

• 90-Degree Double-Walled Spring-Assisted Hood: Built with a double-lined, insulated 304 stainless steel hood designed for deep convective heat retention. Supported by a specialized Teflon-coated spring-assist mechanism, the heavy lid opens smoothly to a full 90 degrees to optimize access and rear exhaust ventilation.

• Evening Ambiance & Backlit Knobs: Outfitted with three integrated, angled interior 12V halogen lights for total visibility across the massive cooking grid during nighttime grilling. The contoured black glass control panel features back-lit comfort-grip safety knobs that illuminate with a safe blue LED glow, automatically transitioning to red when that specific burner is active.

• Easy-Glide Drip Tray System: Cleanups are handled by a large, easy-glide drip tray mounted on smooth roller ball bearings, designed to work seamlessly with disposable foil pan liners to trap debris.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Area: 1,056 square inches (Dimensions: 48” Wide x 22” Deep)

• Secondary Warming Rack Area: 384 square inches (Dimensions: 48” Wide x 8” Deep)

• Total Combined Cooking Space: 1,440 square inches total capacity

• Main Surface Thermal Output: 112,000 BTUs total capacity across 4 main burners

• Dual Recessed Rotisserie Backburners Output: 22,000 BTUs combined

• Mandatory Enclosure Cutout Dimensions: 50” Wide x 23 1/2” Deep x 11 1/2” High

• Electrical Service Line Required: Requires a standard 120V AC ground line connection to supply power to the touchscreen digital monitor, hot surface igniters, control panel LED tracks, and interior halogen lamps.

Logistics, Configurations, & Factory Warranty

• Fuel Utility Customization: Shipped fully calibrated and pre-configured from the factory floor for either Natural Gas (E1060i-9EIN) or Liquid Propane (E1060i-9EIP) utility lines.

• Optional Factory Upgrade Potentials: Can be optionally upgraded at checkout to include a factory-installed high-intensity Infrared Bottom Burner for restaurant-tier flash searing, or configured with an integrated high-temperature ceramic Magic View Window directly inside the front slope of the hood pane.

• Fire Magic Elite Lifetime Warranty: Fire Magic gas grills are an elite investment backed by robust factory protection:

  • Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear grids, and the primary stainless steel structural housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner firebox liners, manifold assemblies, and backburner elements.

  • 5-Year Protection: Stainless steel flame tamers, 16-gauge flavor grids, and internal charcoal grill burner assemblies.

  • 1-Year Protection: Touchscreen digital thermometer circuit boards, electrical components, wiring harnesses, halogen bulb assemblies, and probes.
