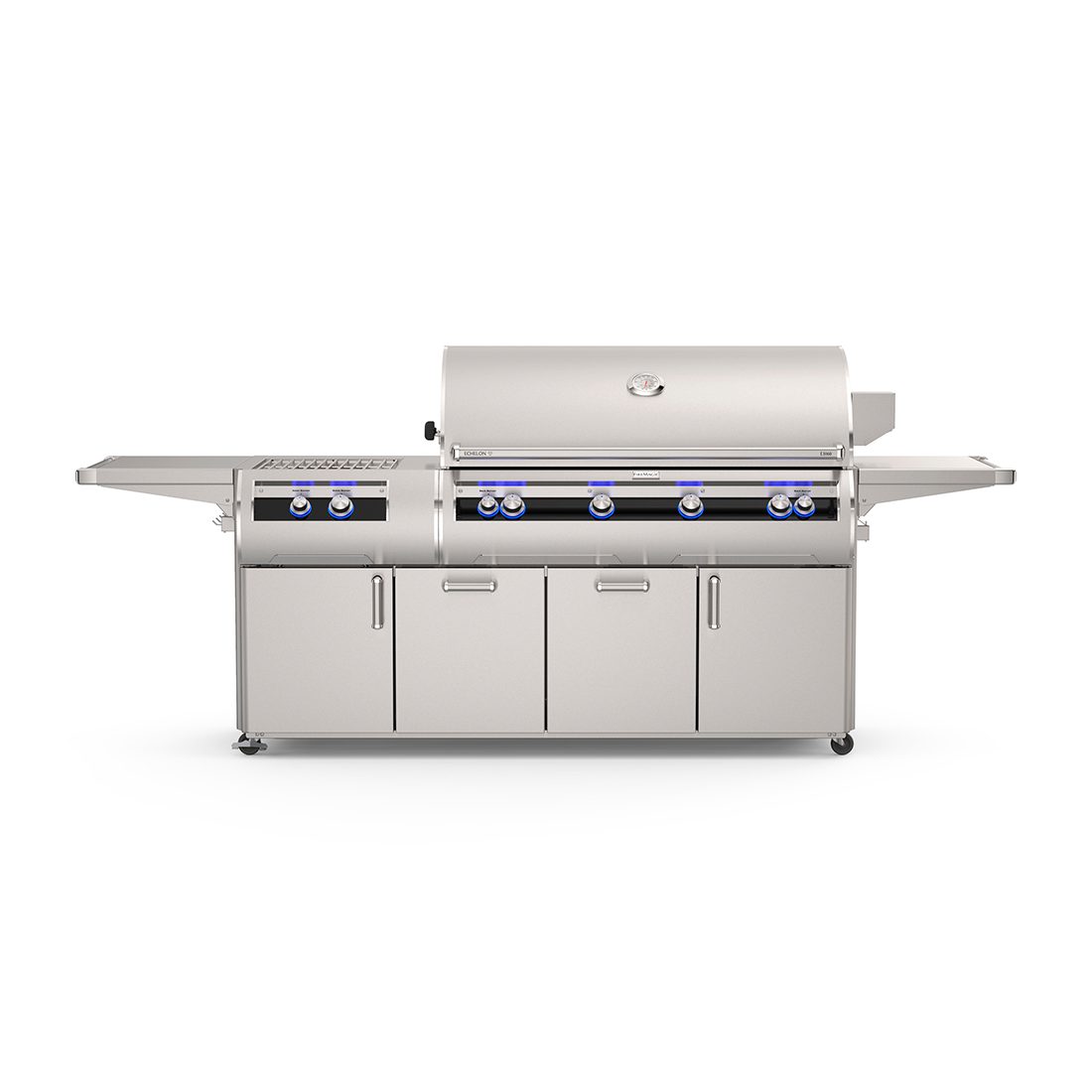

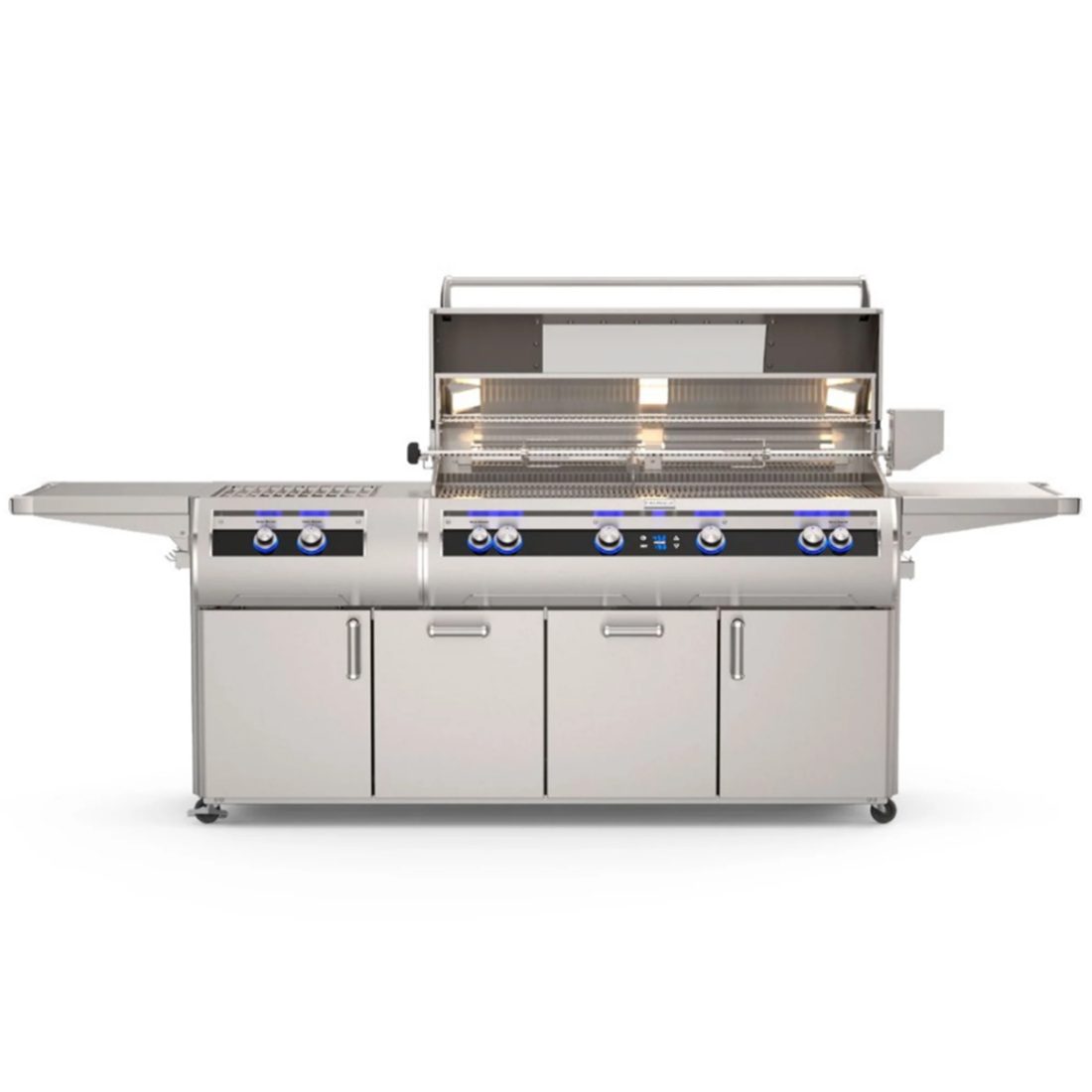

Fire Magic Echelon Diamond E1060s 48" Portable Gas Grill & Power Burner (Analog Thermometer)

Fire Magic Echelon Diamond E1060s 48" Portable Gas Grill & Power Burner (Analog Thermometer)

The Fire Magic Echelon Diamond E1060s 48" Portable Gas Grill and Power Burner with Analog Thermometer (E1060s-9EAN-51) represents the absolute pinnacle of luxury, high-capacity, mobile outdoor cooking infrastructure. Serving as the ultimate freestanding titan in Fire Magic’s flagship collection, this estate-tier machine pairs a massive 48-inch master grill head with an attached commercial-grade Power Burner side-station to deliver over 1,400 square inches of total cooking capacity.

Constructed completely from premium 304 food-service grade stainless steel and detailed with an elegant contoured black glass control panel, this mobile kitchen is engineered for large-scale entertaining where uncompromising power and refined style are required without a permanent built-in island structure.

Performance Engineering & Luxury Features

• Attached Concentric Dual-Ring Power Burner: Mounted seamlessly to the left wing of the cabinet cart is a high-output 60,000 BTU Power Burner. Featuring independent inner and outer cast brass rings, it adjusts from a low 3,000 BTU simmer up to an intense high-heat blast, making it perfect for rapid wok flash-frying, boiling lobsters, or frying holiday turkeys. Includes a matching removable stainless steel lid.

• Four Cast Stainless Steel "E" Burners: The main grill box is powered by four massive main burners precision-forged from 1/4-inch thick premium 304 cast stainless steel. Weighing up to 12 lbs each and backed by a lifetime warranty, these robust burners pump out an immense combined 112,000 BTUs across the main surface and feature an integrated top-lip shroud above the ports to completely shield the flames from falling grease clogs.

• Patented Diamond Sear Cooking Grids: Equipped with heavy-gauge trapezoidal 304 stainless steel grids. The bars feature a smooth, flat top measuring over 0.35 inches wide, covering more than half of the total grilling surface. This advanced geometry maximizes direct thermal surface contact with your food, ensuring it cooks significantly faster and sears more evenly.

• Flavor Grids & Heat Zone Separators: Heavy-duty 16-gauge stainless steel flavor grids cover the burner network to disperse radiant heat unobstructed while instantly vaporizing juices into rich barbecue smoke. Removable heat zone separators slide between each burner path, allowing chefs to establish completely isolated zones to simultaneously flash-sear thick steaks at maximum heat and slow-roast delicate foods at low heat.

• Dual Ceramic Recessed Backburners: Outfitted with two recessed, independent infrared rear backburners encased in heavy stainless steel mesh foam pushing out a combined 22,000 BTUs. Includes a complete heavy-duty rotisserie kit featuring a high-torque motor, counter-balance weights, meat prongs, and matching protective stainless steel covers.

• Dual-Fuel Charcoal/Woodchip Smoker Basket: Every Echelon Diamond grill includes a heavy-duty stainless steel charcoal and smoker basket at no additional charge. Siting directly on top of the main gas burners for easy ignition, it allows chefs to burn lump charcoal briquettes or real wood chunks to seamlessly blend convenient gas speed with deep wood-fired flavor.

• Advanced Electric Hot Surface Ignition: Outfitted with a highly reliable 110V/120V AC push-to-light electronic hot surface ignition system. This commercial-grade setup delivers reliable lighting under harsh weather conditions and is fully backed by dedicated mechanical flash tubes for emergency manual backup lighting.

• 90-Degree Double-Walled Hood: Built with a double-lined, insulated 304 stainless steel teardrop hood designed for deep convective heat retention. Supported by a specialized Teflon-coated spring-assist mechanism, the heavy lid opens smoothly to a full 90 degrees to optimize access and rear exhaust ventilation.

• Evening Ambiance & Backlit Knobs: Outfitted with three integrated, angled interior 12V halogen lamps for total visibility across the massive cooking grid during nighttime grilling. The contoured black glass control panel features back-lit comfort-grip safety knobs that illuminate with a safe blue LED glow, automatically transitioning to red when that specific burner is active.

• Hood-Embedded Analog Thermometer: Features a large, premium heavy-duty analog dial gauge wrapped in a polished stainless steel bezel embedded in the hood. The face reads up to 1000°F and is angled forward for clear, continuous monitoring without losing valuable heat by lifting the lid.

• Easy-Glide Drip Tray System: Cleanups are handled by a large, easy-glide drip tray mounted on smooth roller ball bearings, designed to work seamlessly with disposable foil pan liners to trap debris.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Area: 1,056 square inches (Dimensions: 48” Wide x 22” Deep)

• Secondary Warming Rack Area: 384 square inches (Dimensions: 48” Wide x 8” Deep)

• Total Combined Cooking Space: 1,440 square inches total capacity

• Main Surface Grill Output: 112,000 BTUs total capacity across 4 cast burners

• Attached Side Power Burner Output: 60,000 BTUs concentric burner ring

• Dual Recessed Rotisserie Backburners Output: 22,000 BTUs combined (11,000 BTUs each)

• Overall Cart Proportions (Lid Closed): 52.5” High x 117” Wide (Shelves extended) x 30.5” Deep

• Total Product Net Weight: Approx. 820 lbs (Heavy-gauge solid structural build)

• Electrical Service Line Required: Requires a standard 110V/120V AC ground line connection via an outdoor-rated extension cord to supply power to the hot surface igniters, control panel LED tracks, and interior halogen lamps.

Cabinet Cart Utilities & Factory Warranty

• Premium Storage & Cart Features: The pre-assembled heavy-duty cabinet cart features soft-closing double storage doors, dual storage drawers, an adjustable fold-down side prep shelf, an integrated paper towel holder, sliding propane cylinder racks, a retractable tool holder, and four commercial-grade heavy-duty locking swivel casters.

• Fuel Utility System Engineering: Available pre-configured and calibrated from the factory floor for either Natural Gas (includes a 10-foot quick-disconnect gas hose) or Liquid Propane (LP) utility configurations.

• Optional Magic View Window Upgrade: Can be optionally upgraded at checkout to include an integrated high-temperature ceramic Magic View Window directly inside the front slope of the hood pane.

• Fire Magic Elite Lifetime Warranty: Fire Magic gas grills are an elite investment backed by robust factory protection:

  • Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear grids, and the primary stainless steel structural housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner firebox liners, side power burner manifolds, and rotisserie backburner assemblies.

  • 5-Year Protection: Stainless steel flame tamers and 16-gauge flavor grids.

  • 1-Year Protection: Electrical components, wiring harnesses, halogen bulb paths, and thermometers.
