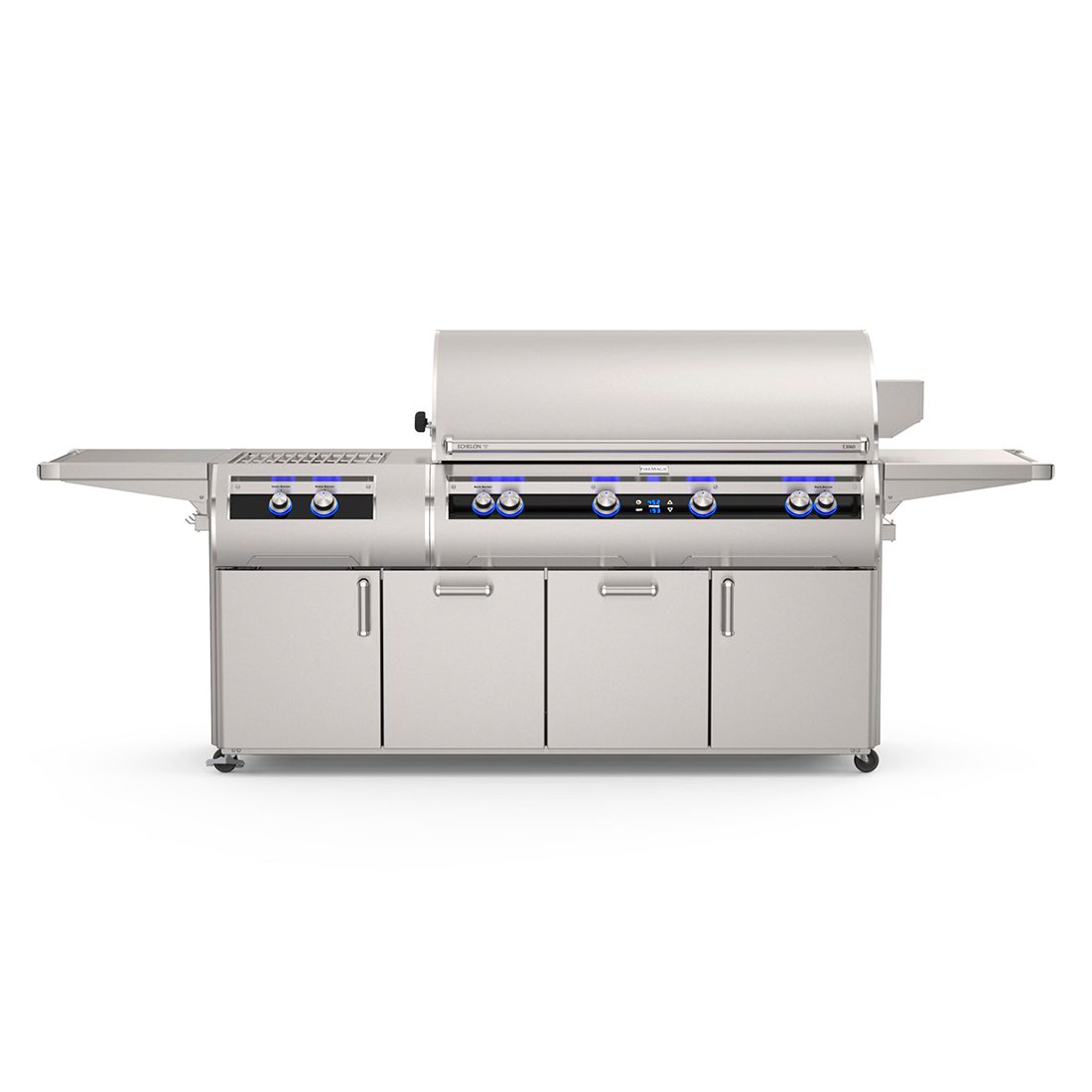

Fire Magic Echelon Diamond E1060s 48" Portable Gas Grill & Power Burner (Digital Thermometer)

Fire Magic Echelon Diamond E1060s 48" Portable Gas Grill & Power Burner (Digital Thermometer)

The Fire Magic Echelon Diamond E1060s 48" Portable Gas Grill and Power Burner with Digital Thermometer (E1060s-9EIN / E1060s-9E1N-51) is the undisputed "king" of high-capacity, mobile outdoor cooking infrastructure. As the absolute flagship freestanding model in Fire Magic's elite lineup, this estate-tier machine offers over 1,400 square inches of total cooking area, combining an oversized 48-inch master grill head with an attached commercial-grade Power Burner side-station.

Constructed completely from premium 304 food-service grade stainless steel and detailed with an elegant black glass control panel, this massive mobile kitchen is built for serious chefs and large-scale residential entertaining.

Performance Engineering & Luxury Features

• Attached Concentric Dual-Ring Power Burner: Mounted seamlessly to the left wing of the cabinet cart is a high-output 60,000 BTU Power Burner. Featuring independent inner and outer cast brass rings, it adjusts flawlessly from a low 3,000 BTU simmer up to an intense 45,000+ BTU blast, making it perfect for rapid wok flash-frying, boiling lobsters, or frying holiday turkeys.

• Four Cast Stainless Steel "E" Burners: The main grill box is powered by four massive main burners precision-forged from 1/4-inch thick premium 304 cast stainless steel. Weighing up to 12 lbs each and backed by a lifetime warranty, these robust burners pump out an immense combined 112,000 BTUs across the main surface and feature an integrated top-lip shroud above the ports to completely shield the flames from falling grease clogs.

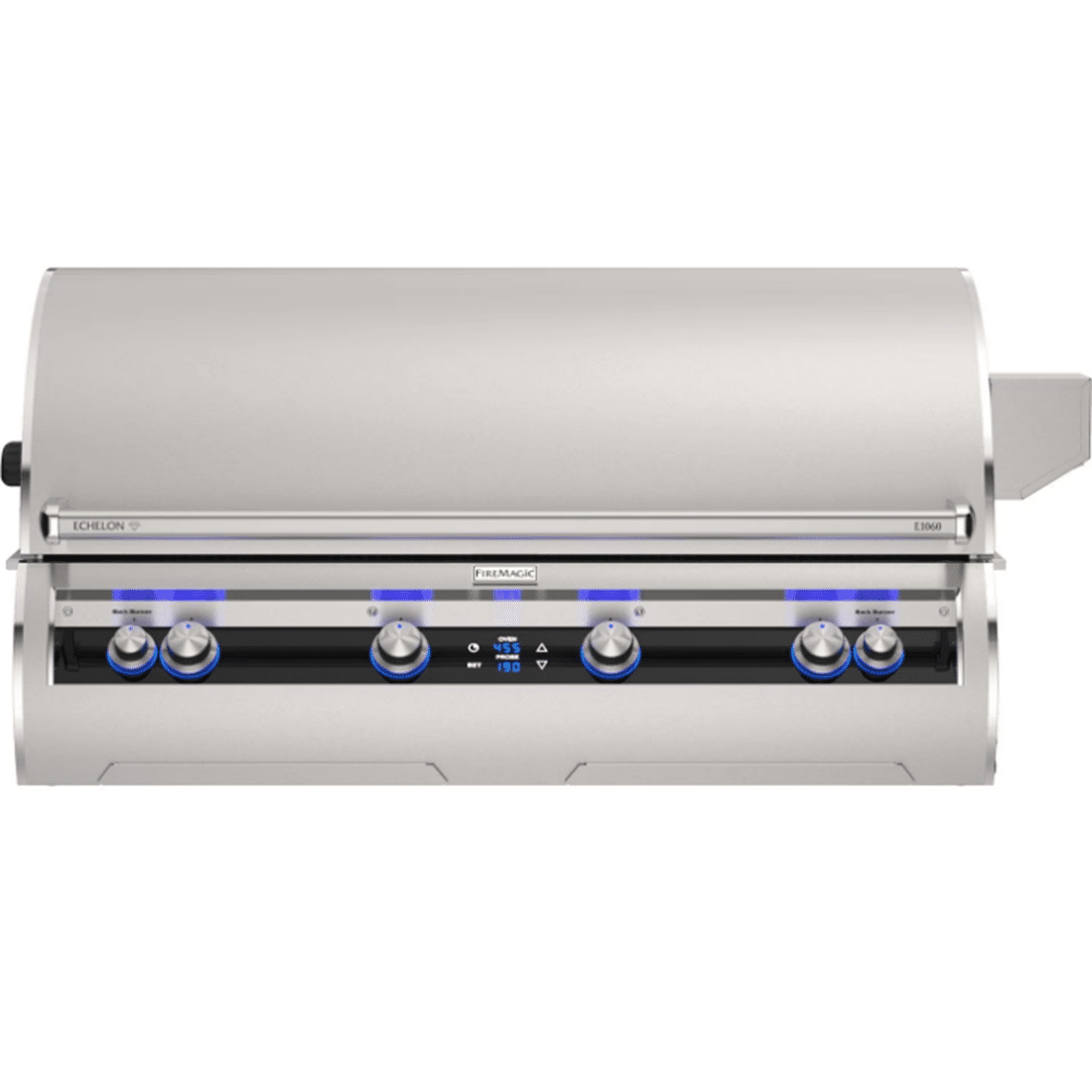

• Touchscreen Digital Cooking Control: Features a state-of-the-art, underglass electronic touchscreen control panel right on the face of the grill. It displays real-time ambient oven zones and works in tandem with an included plug-in stainless steel meat probe. The system includes built-in timers, alarms, and integrated smart technology for remote tracking directly from your smartphone.

• Patented Diamond Sear Cooking Grids: Equipped with heavy-gauge trapezoidal 304 stainless steel grids. The bars feature a smooth, flat top measuring over 0.35 inches wide, covering more than half of the total grilling surface. This advanced design maximizes direct thermal contact, ensuring food cooks significantly faster and sears more evenly.

• Flavor Grids & Heat Zone Separators: Heavy-duty 16-gauge stainless steel flavor grids distribute heat unobstructed while vaporizing food juices on contact to infuse rich barbecue smoke flavor. Removable heat zone separators slide between each burner path, allowing chefs to isolate zones and simultaneously flash-sear thick steaks at maximum heat and slow-roast delicate foods at low heat.

• Dual Ceramic Recessed Backburners: Outfitted with two recessed, independent infrared rear backburners encased in heavy stainless steel mesh foam pushing out a combined 22,000 BTUs. Includes a complete heavy-duty rotisserie kit featuring a high-torque motor, counter-balance weights, meat prongs, and matching protective stainless steel covers.

• Advanced Electric Hot Surface Ignition: Outfitted with a highly reliable 110V/120V AC push-to-light electronic hot surface ignition system. This commercial-grade setup delivers reliable lighting under harsh weather conditions and is fully backed by dedicated mechanical flash tubes for emergency manual backup lighting.

• 90-Degree Double-Walled Hood: Built with a double-lined, insulated 304 stainless steel teardrop hood designed for deep convective heat retention. Supported by a specialized easy-lift spring mechanism, the heavy lid opens smoothly to a full 90 degrees to optimize access and rear exhaust ventilation.

• Evening Ambiance & Backlit Knobs: Outfitted with three integrated, angled interior 12V halogen lamps for total visibility across the massive cooking grid during nighttime grilling. The contoured control panel features back-lit comfort-grip safety knobs that illuminate with a safe blue LED glow, automatically transitioning to red when that specific burner is active.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Area: 1,056 square inches (Dimensions: 48” Wide x 22” Deep)

• Secondary Warming Rack Area: 384 square inches (Dimensions: 48” Wide x 8” Deep)

• Total Combined Cooking Space: 1,440 square inches total capacity

• Main Surface Grill Output: 112,000 BTUs total capacity across 4 cast burners

• Attached Side Power Burner Output: 60,000 BTUs concentric burner ring

• Dual Recessed Rotisserie Backburners Output: 22,000 BTUs combined (11,000 BTUs each)

• Overall Frame Proportions: 61" High x 117" Wide x 30.5" Deep

• Total Product Net Weight: Approx. 820 lbs (Heavy-gauge solid structural build)

• Electrical Service Line Required: Requires a standard 110V/120V AC ground line connection via an outdoor-rated extension cord to supply power to the hot surface igniters, touchscreen, control panel LED tracks, and interior halogen lamps.

Cabinet Cart Utilities & Factory Warranty

• Premium Storage & Cart Features: The pre-assembled heavy-duty cabinet cart features double storage doors, dual storage drawers, a fold-down side prep shelf, an integrated paper towel holder, sliding propane cylinder racks, a retractable tool holder, dual 110V electrical accessory outlets on the cart body, and four commercial-grade heavy-duty locking swivel casters.

• Fuel Utility System Engineering: Available pre-configured and calibrated from the factory floor for either Natural Gas (includes a 10-foot quick-disconnect gas hose) or Liquid Propane (LP) utility configurations.

• Optional Magic View Window Upgrade: Can be optionally upgraded at checkout to include an integrated high-temperature ceramic Magic View Window directly inside the front slope of the hood pane.

• Fire Magic Elite Lifetime Warranty: Fire Magic gas grills are an elite investment backed by robust factory protection:

  • Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear grids, and the primary stainless steel structural housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner firebox liners, side burner manifolds, and rotisserie backburner assemblies.

  • 5-Year Protection: Stainless steel flame tamers and 16-gauge flavor grids.

  • 1-Year Protection: Electrical components, wiring harnesses, halogen bulb paths, touchscreen digital circuits, and thermometers.

  • Labor Coverage: Backed by a 2-year factory labor allowance program to assist with residential field service repairs.
