Fire Magic Aurora A540i 30" Built-In Gas Grill

Fire Magic Aurora A540i 30" Built-In Gas Grill

The Fire Magic Aurora A540i 30" Built-In Gas Grill with Analog Thermometer (A540i) is a premium, high-performance outdoor cooking appliance proudly manufactured in the USA. It incorporates many of the advanced engineering hallmarks found in Fire Magic's flagship Echelon Series, delivering luxury-tier durability, heat efficiency, and versatility for custom outdoor kitchen islands.

Constructed entirely from commercial-grade 304 stainless steel, it provides a sophisticated, seamless aesthetic paired with immense thermal cooking power across a dual-walled layout.

Performance Engineering & Key Features

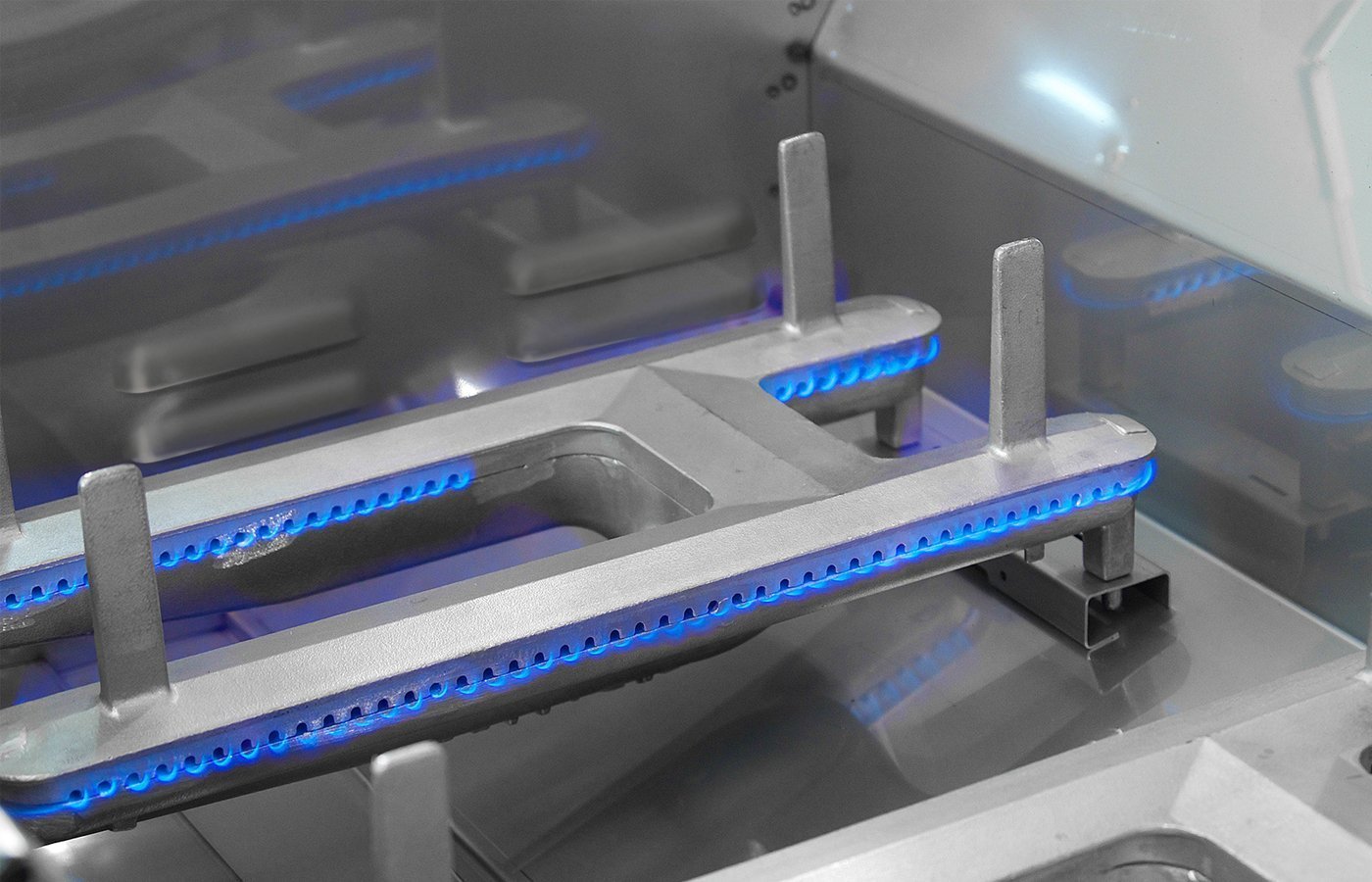

• Cast Stainless Steel E-Burners: Powered by three heavy-duty "E" burners cast from 1/4-inch thick 304 stainless steel. Weighing up to 12 lbs each, these robust burners output a combined 63,000 BTUs and feature precision porting alongside a protective lip to prevent grease clogging.

• Patented Diamond Sear Cooking Grids: Equipped with patented trapezoidal-shaped stainless steel grids. The bars feature a smooth, flat top measuring over 0.35 inches wide to maximize direct heat transfer to food, ensuring faster cook times and uniform searing.

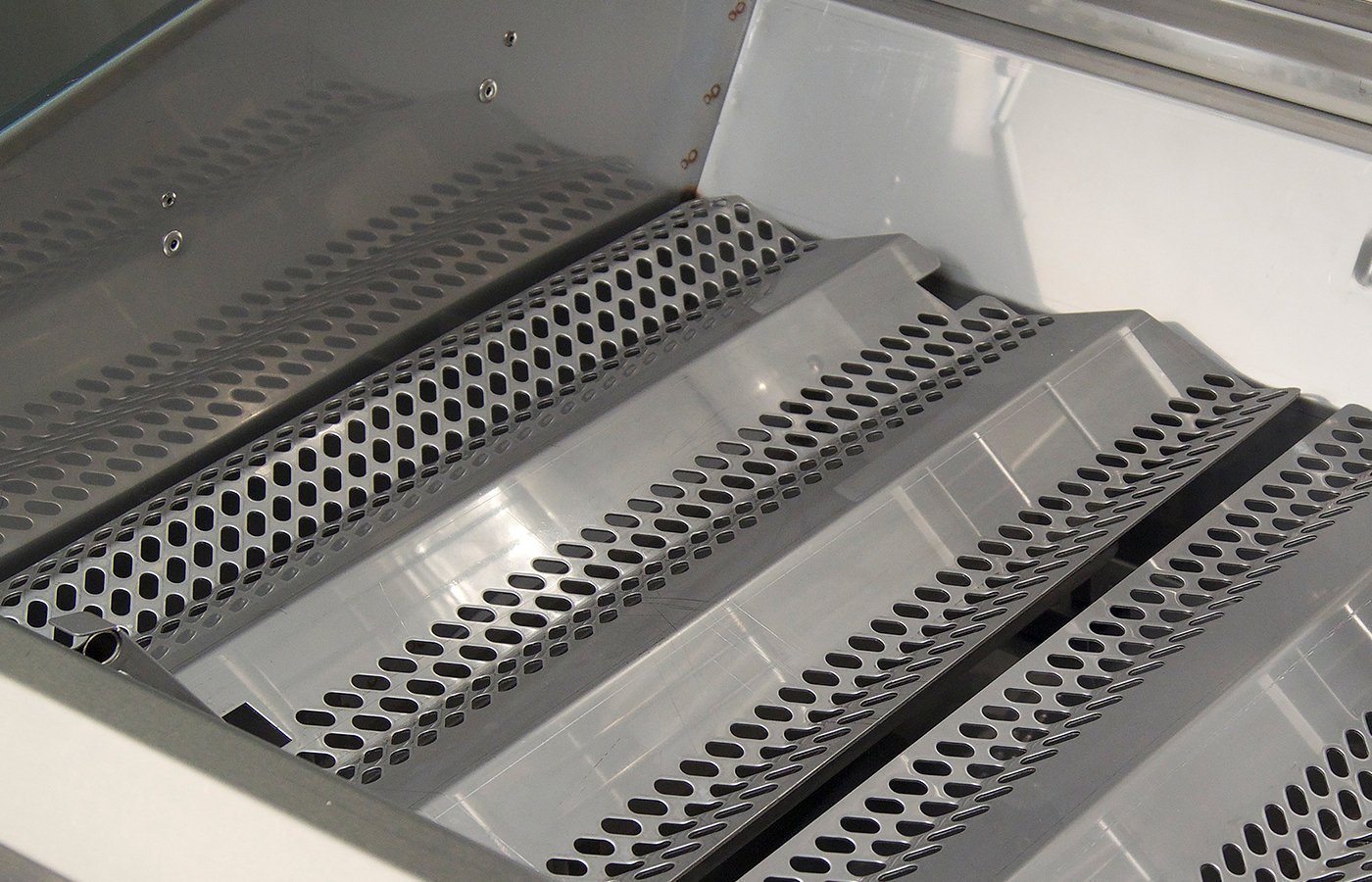

• High-Efficiency Flavor Grids: Positioned directly over the main burners, these 16-gauge stainless steel flavor grids distribute heat evenly across the surface while instantly vaporizing food juices to infuse natural barbecue smoke into the food and eliminate flare-ups.

• Advanced Hot Surface Ignition: Features a 120V AC electric push-to-light hot surface ignition loop. This system delivers fast, highly reliable lighting under harsh weather conditions and includes dedicated flash tubes for emergency backup ignition.

• Spring-Assisted 90-Degree Hood: Built with a double-walled, heavy-gauge teardrop hood designed for superior thermal retention. Supported by a Teflon-coated spring-assist mechanism, the lid opens smoothly to a full 90 degrees to optimize rear exhaust ventilation.

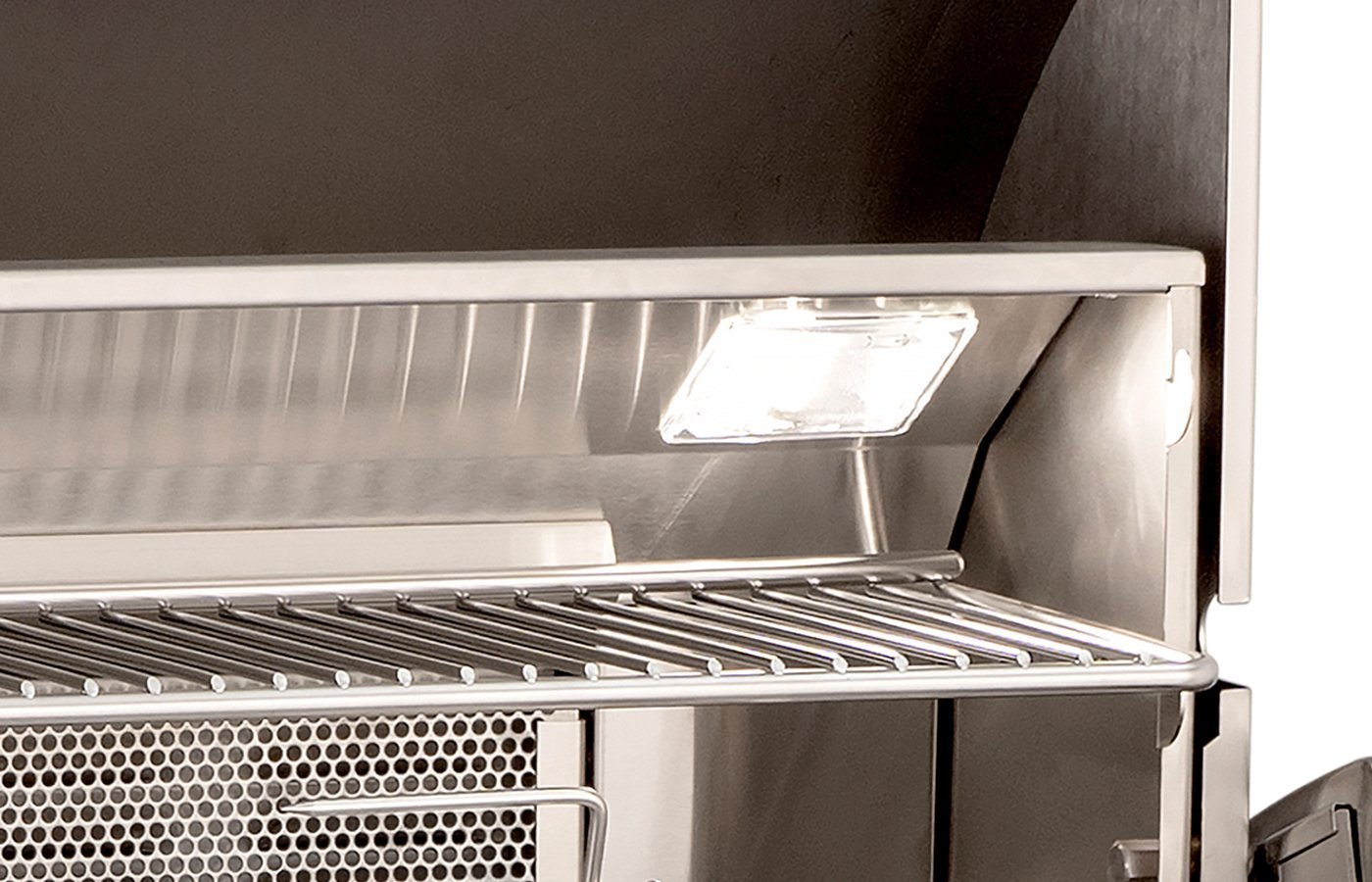

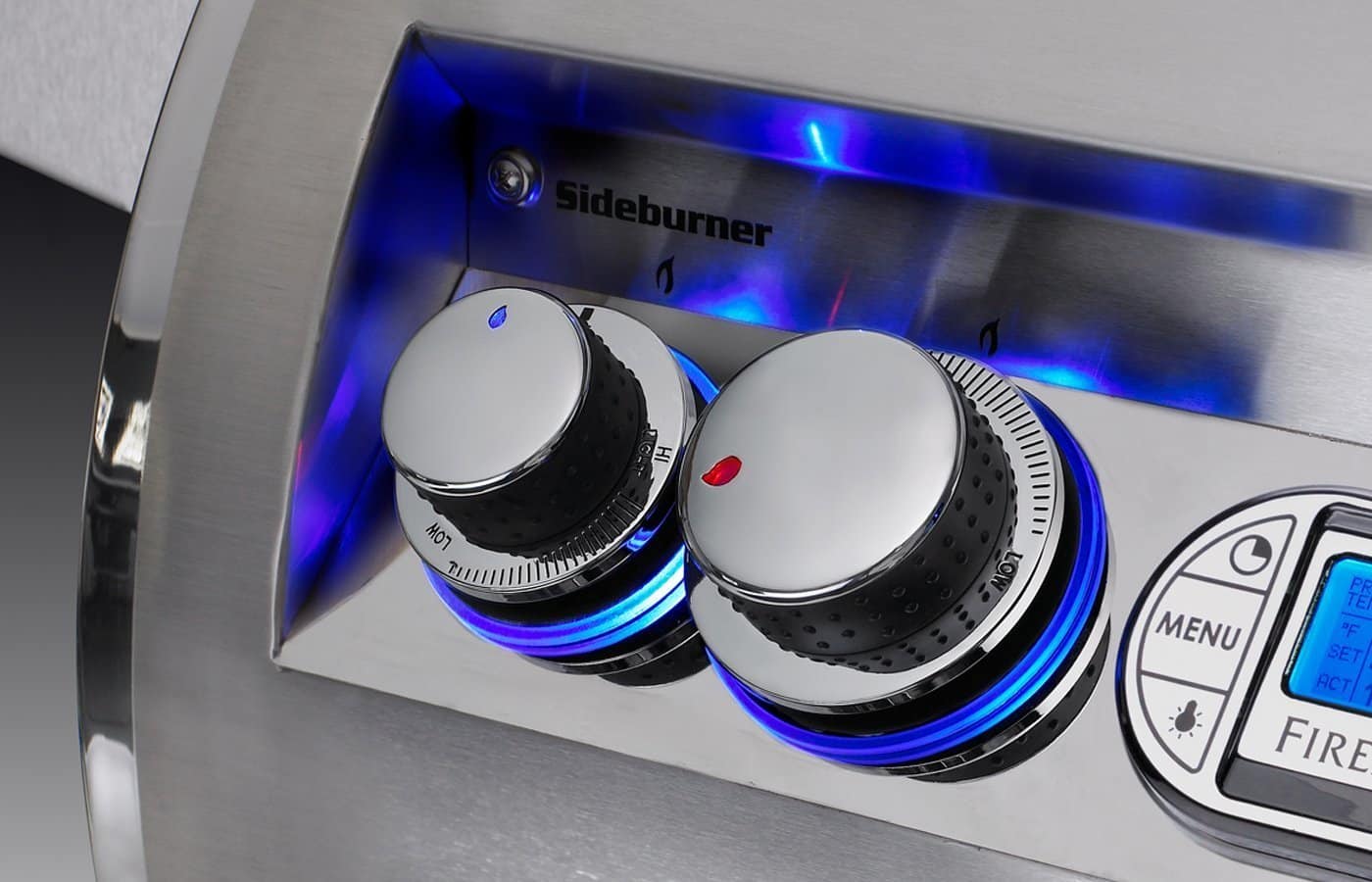

• Evening Ambiance & Control Aesthetics: Outfitted with dual integrated 12V interior halogen lights for high visibility during nighttime grilling. The mirror-polished, seamless control panel features comfort-grip control knobs back-lit by safe blue LED piping that turns red when the corresponding burner is ignited.

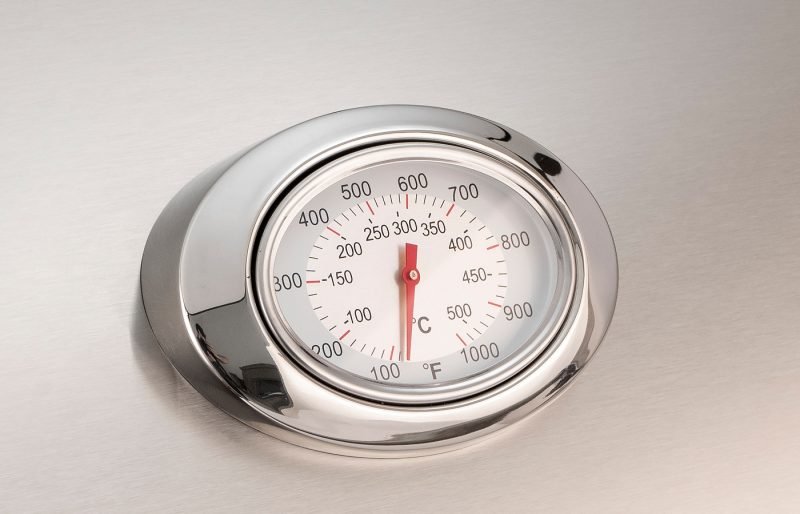

• Hood-Embedded Analog Thermometer: Features a large, attractive analog dial gauge with a polished stainless steel bezel embedded directly into the hood. It is angled forward for easy monitoring without needing to lift the lid and lose valuable heat.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Footprint: 540 square inches (Dimensions: 30” Wide x 18” Deep)

• Secondary Warming Rack Area: 240 square inches (Dimensions: 30” Wide x 8” Deep)

• Total Combined Cooking Space: 780 square inches (Accommodates approximately 18 standard burger patties simultaneously)

• Primary Fuel Performance Rating: 63,000 BTUs total capacity across main surface

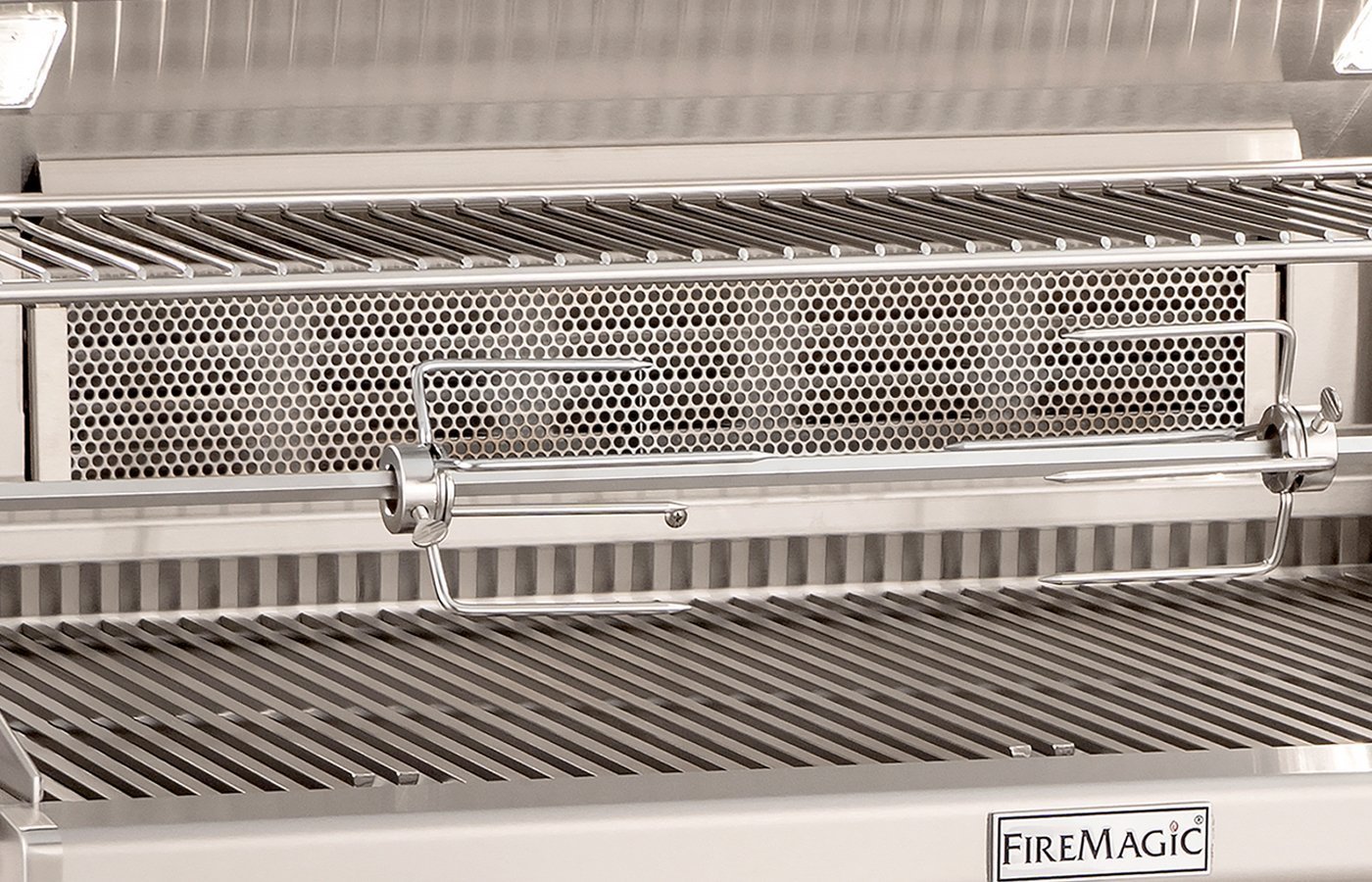

• Optional Infrared Backburner Rating: Recessed rear stainless steel rotisserie mesh burner pushing 18,000 BTUs

• Mandatory Enclosure Cutout Dimensions: 32” Wide x 19 1/2” Deep x 11 1/2” High

• Total Product Net Weight: Approx. 200 lbs

• Electrical Service Line Drop Required: Requires a standard 120V AC ground line connection to power the hot surface ignition, interior halogens, and back-lit control dials.

Logistics, Configurations, & Factory Warranty

• Fuel Utility Customization: Available pre-configured and calibrated from the factory floor for either Natural Gas (A540i-7EAN) or Liquid Propane (A540i-7EAP) lines.

• Modular Upgrade Options: Can be optionally upgraded at checkout to include a dedicated stainless steel left-side infrared sear burner or configured with the full heavy-duty rotisserie kit (including a counter-balance spit rod, two meat prongs, and a high-torque 110V motor).

• Fire Magic Elite Lifetime Warranty: * Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear grids, and the primary stainless steel housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner liners, manifold assemblies, and backburner elements.

  • 5-Year Protection: Stainless steel flavor grids.

  • 3-Year Protection: Electrical components, wiring harnesses, and ignition systems.

  • Labor Allowance: Supported by a 2-year factory labor allowance program to assist with residential field service repairs.
