Fire Magic Aurora A540s 30" Freestanding Gas Grill with Side Burner

Fire Magic Aurora A540s 30" Freestanding Gas Grill with Side Burner

The Fire Magic Aurora A540s 30" Freestanding Gas Grill with Analog Thermometer & Single Side Burner (A540s-62) is a premium, heavy-duty portable cart grill proudly manufactured in the USA. Engineered to provide the legendary cooking power and structural integrity of Fire Magic's flagship lines in a self-contained, mobile package, it is ideal for homeowners who want a luxury-tier outdoor culinary station without building a permanent brick island structure.

Constructed entirely from premium 304 food-service grade stainless steel, the setup rests on an easy-glide cart featuring integrated storage utilities, dynamic side shelving, and a dedicated high-output prep burner.

Performance Engineering & Key Features

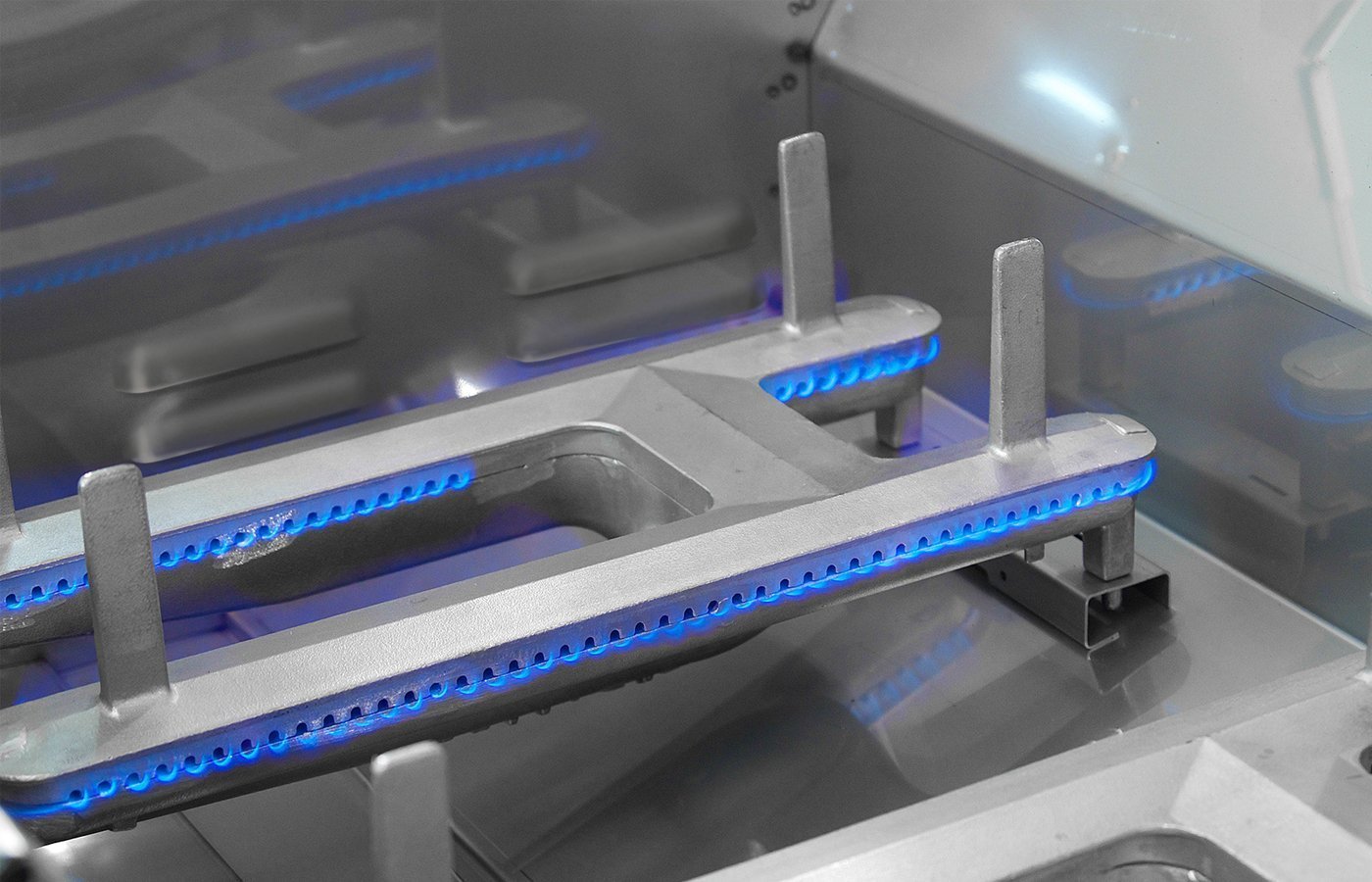

• Cast Stainless Steel "E" Burners: Driven by three massive main burners precision-forged from 1/4-inch thick premium 304 stainless steel. Weighing up to 12 lbs each and backed by a lifetime warranty, these robust burners output a combined 63,000 BTUs and feature a protective top lip to prevent port clogging from cooking grease or food debris.

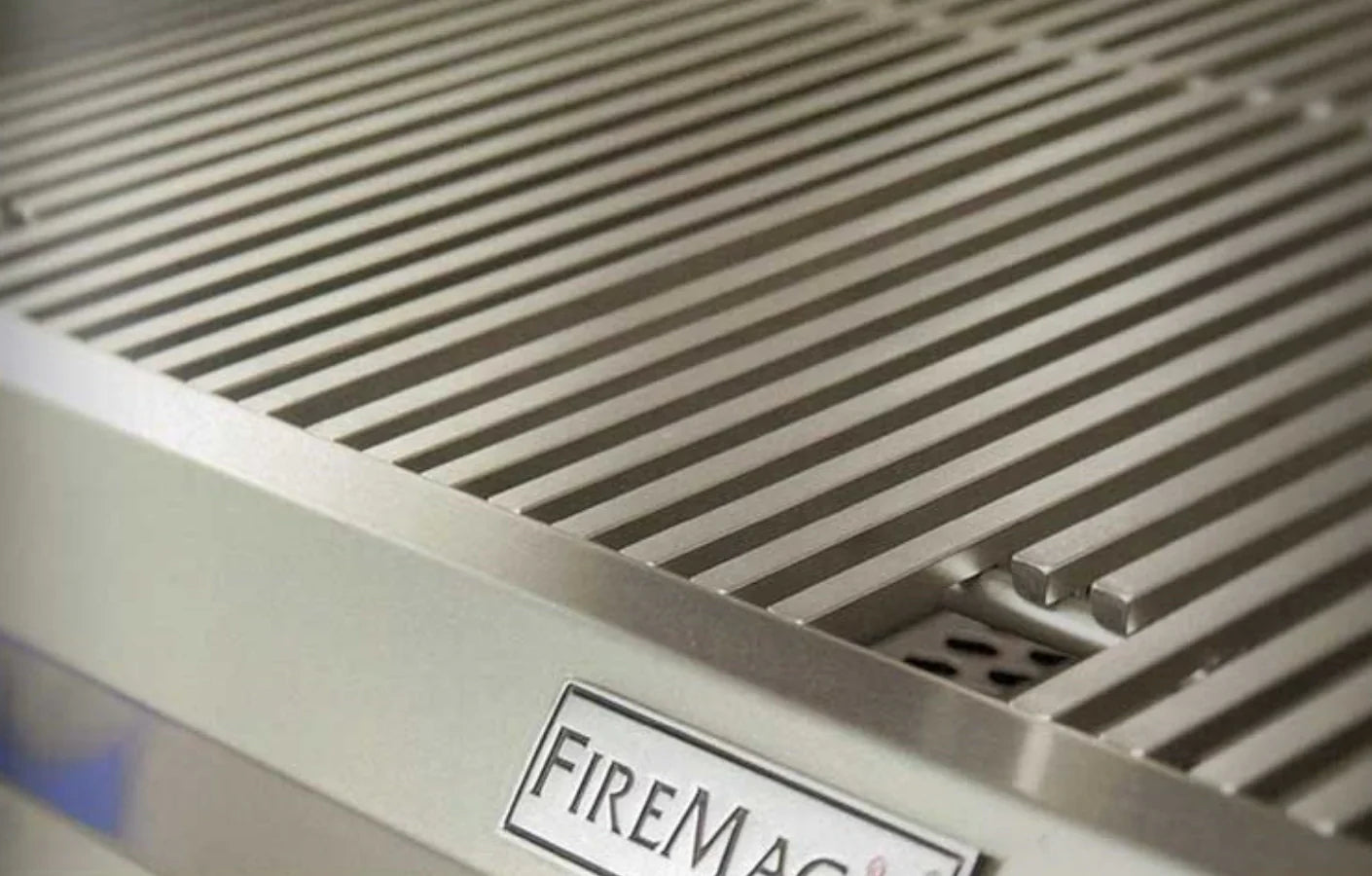

• Patented Diamond Sear Cooking Grids: Equipped with heavy-gauge trapezoidal 304 stainless steel grids. The bars are engineered with a smooth, flat top to maximize direct surface contact with food, resulting in optimal heat transfer, faster cook times, and uniform steakhouse sear lines.

• Flush-Mounted Single Side Burner: Embedded directly into the left side shelf of the cart is a premium 15,000 BTU side burner. Protected by a lift-up stainless steel cover when not in use, it expands your kitchen versatility for simmering sauces, boiling sides, or sautéing ingredients without needing to walk inside.

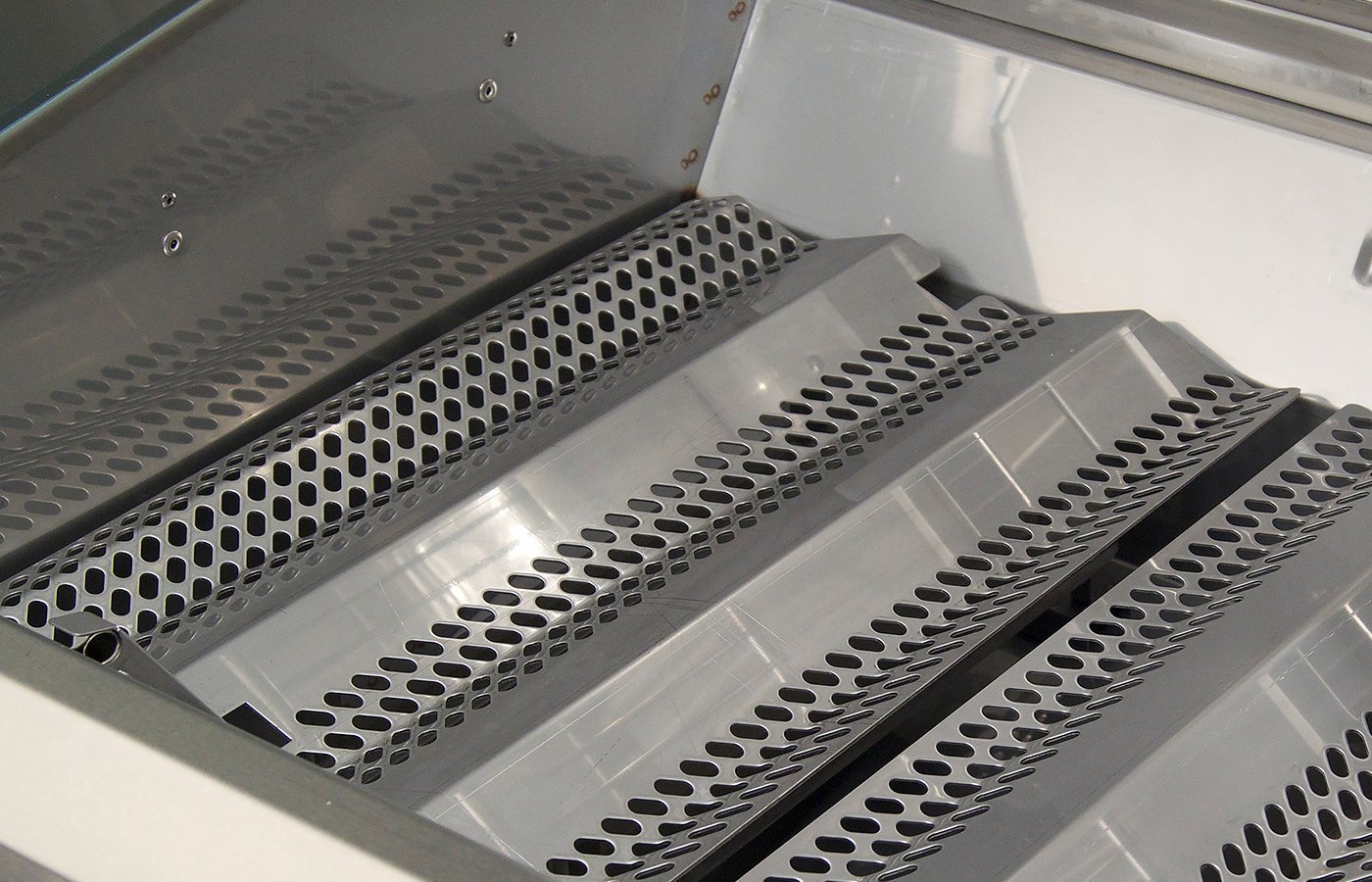

• 16-Gauge Flavor Grids: High-efficiency, V-pattern stainless steel flame tamers cover the burners to spread radiant heat evenly across the grids. They protect the burners while instantly vaporizing cooking drippings into flavorful smoke that infuses right back into your cook.

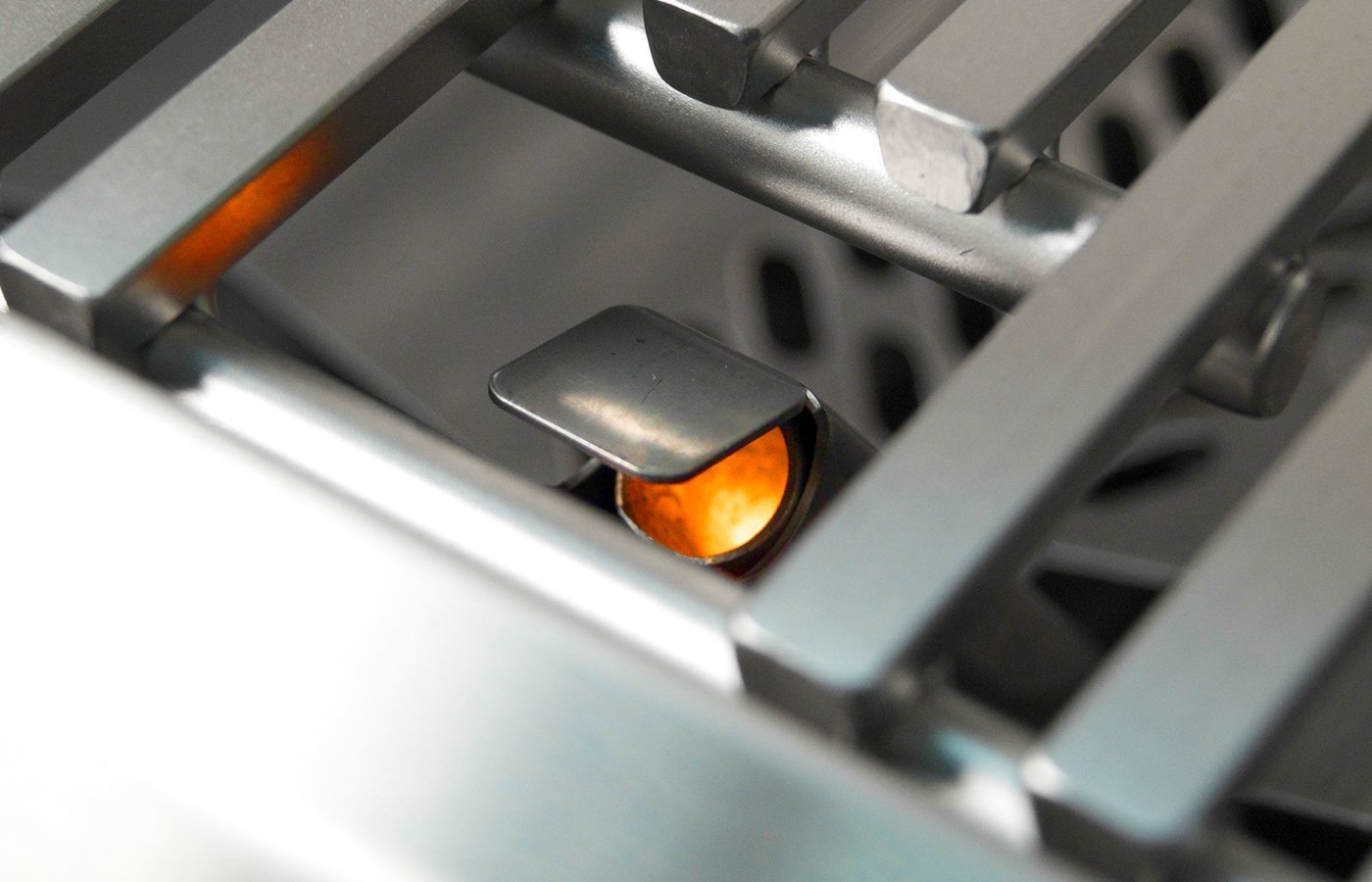

• Advanced Electric Hot Surface Ignition: Outfitted with a highly reliable 120V AC push-to-light electronic hot surface ignition system. This commercial-grade setup delivers fast lighting under harsh weather conditions and is fully backed by dedicated mechanical flash tubes for emergency manual backup lighting.

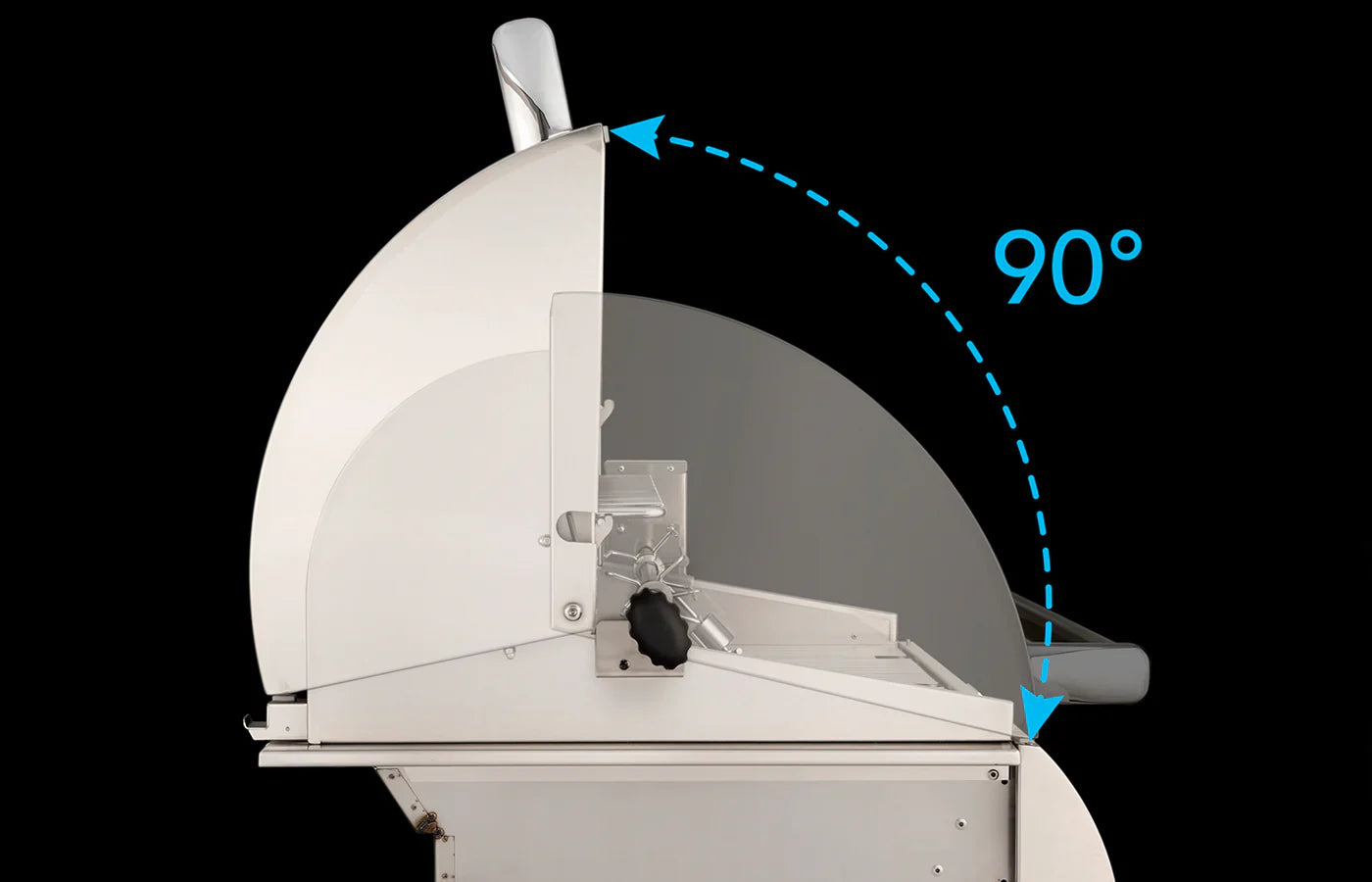

• 90-Degree Double-Walled Hood: Built with a double-lined, heavy-gauge teardrop hood designed for deep convective heat retention. Supported by a Teflon-coated spring-assist mechanism, the lid opens smoothly to a full 90 degrees to optimize rear exhaust ventilation.

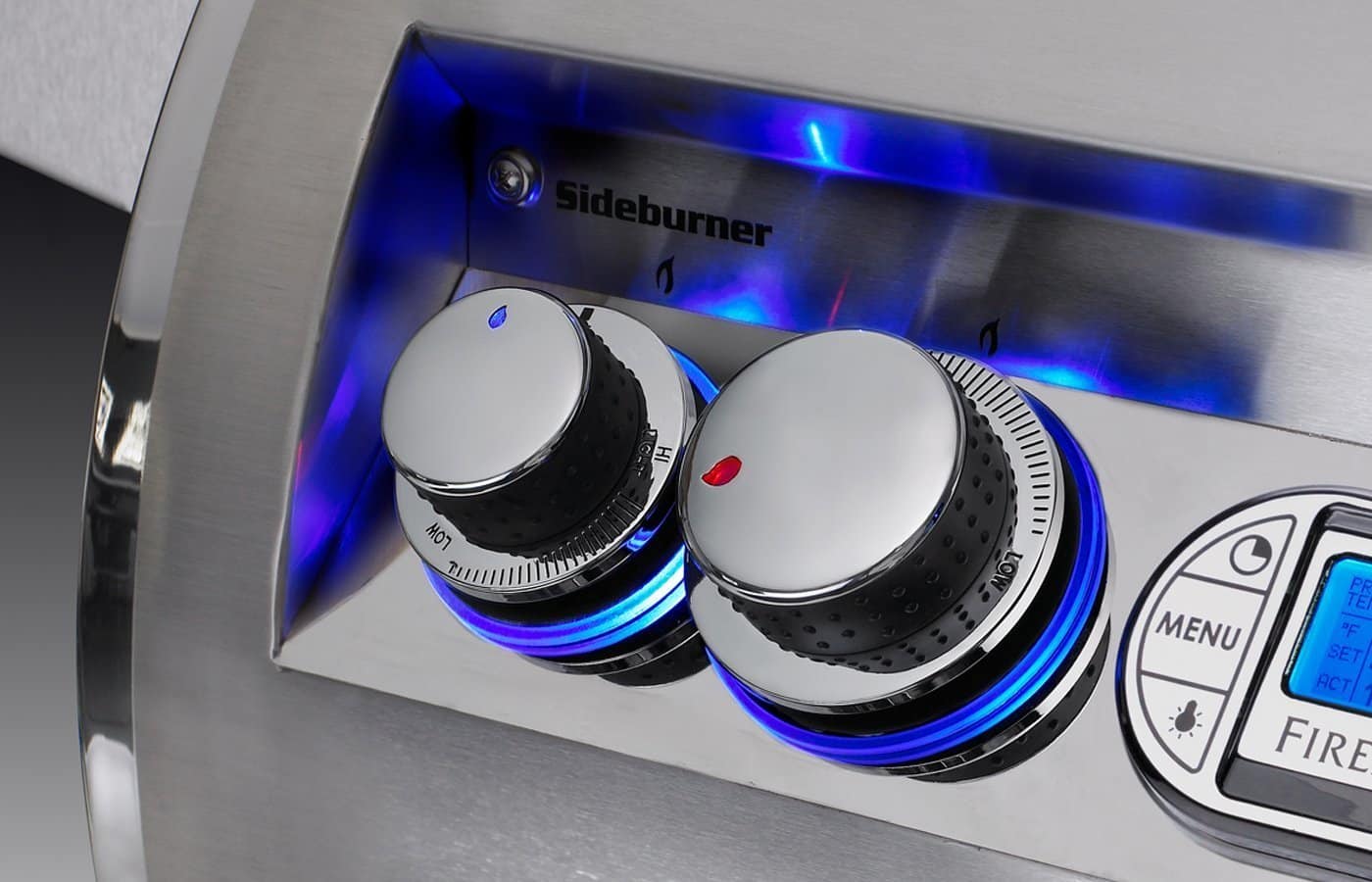

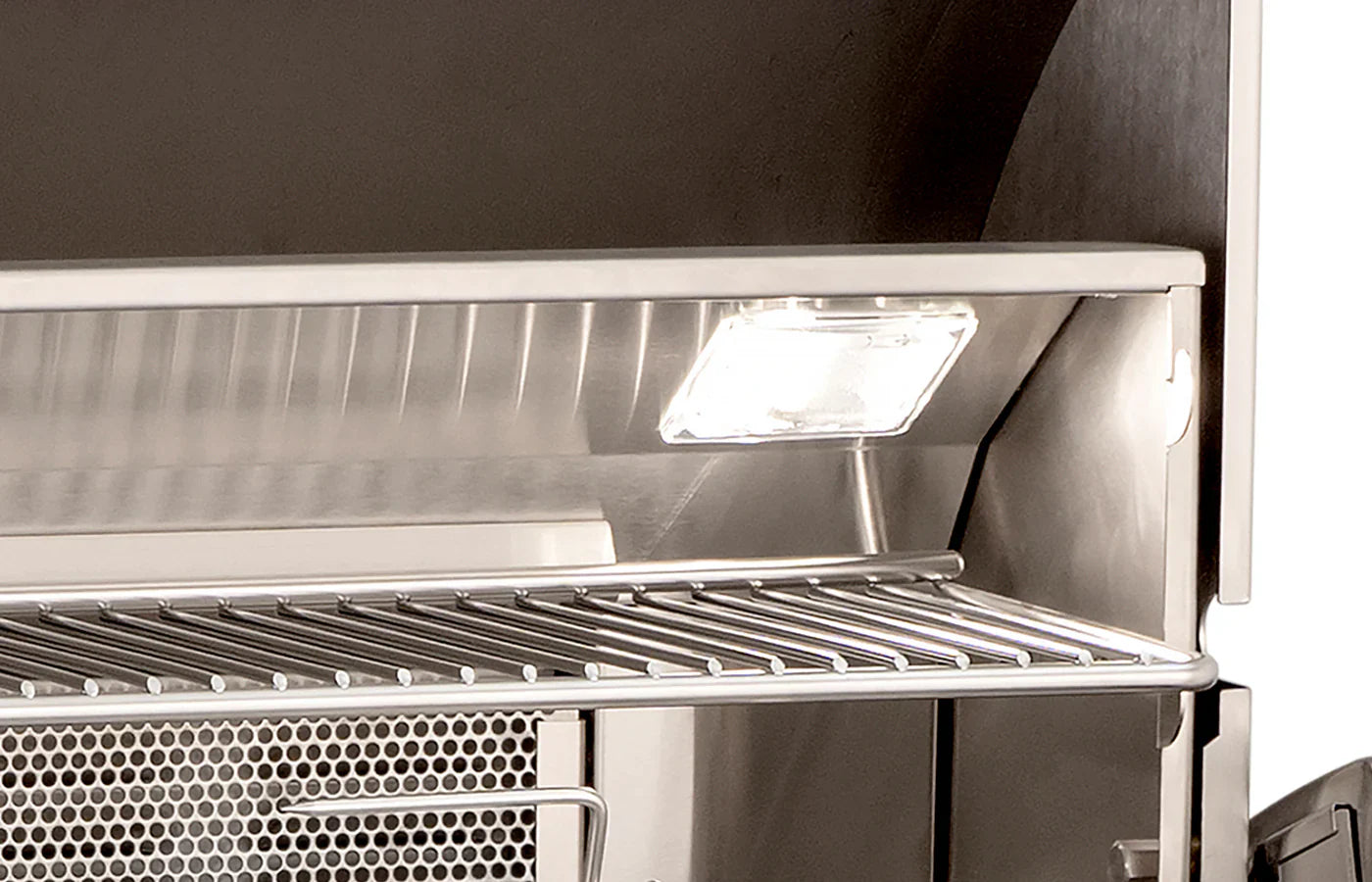

• Evening Ambiance & Backlit Knobs: Equipped with dual integrated, angled interior 12V halogen lights for complete visibility during nighttime grilling. The seamless control panel features back-lit comfort-grip safety knobs that illuminate with a safe blue LED glow and automatically turn red when the corresponding burner is active.

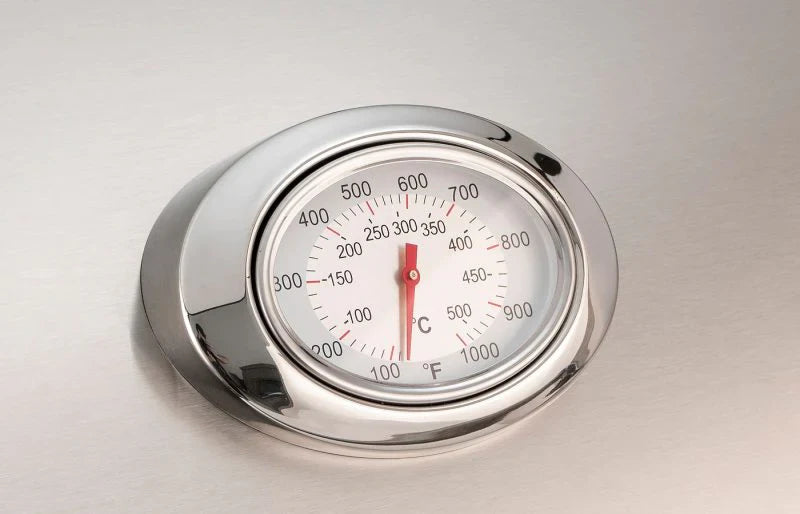

• Hood-Embedded Analog Thermometer: Features a large, attractive analog dial gauge wrapped in a polished stainless steel bezel. The face reads up to 1000°F and is angled forward for easy monitoring without losing valuable heat by lifting the hood.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Footprint: 540 square inches (Dimensions: 30” Wide x 18” Deep)

• Secondary Warming Rack Area: 240 square inches (Dimensions: 30” Wide x 8” Deep)

• Total Combined Cooking Space: 780 square inches (Accommodates approximately 18 to 20 standard burger patties simultaneously)

• Main Surface Thermal Output: 63,000 BTUs total capacity across main burners

• Side Prep Burner Output: 15,000 BTUs

• Overall Cart Dimensions: 62.25" Wide (Shelves Up) x 26" Deep x 62.25" High

• Total Product Frame Weight: 320 lbs (Heavy-gauge build holds firm against winds)

• Electrical Service Line Required: Requires a standard 120V AC power connection via an extension cord to support the electronic hot surface ignition and internal halogen lights.

Cart Inclusions, Upgrades, & Factory Warranty

• Premium Cart Substructure Features: The heavy-duty cart includes dual storage doors with 6-inch handles to house utility components, a smooth slide-out tray for easy tank maintenance, two fold-down solid side shelves, an integrated paper towel holder, a folding tool prong matrix, and four heavy-duty locking casters.

• Fuel Configuration Options: Available pre-calibrated from the factory floor for either Natural Gas or Liquid Propane (LPG) lines. Cart models arrive equipped with a 10-foot flexible gas line quick-disconnect fitting.

• Rotisserie & Backburner Upgrade Configuration: Buyers can optionally choose the A540s-8E series at checkout, which upgrades the firebox with an integrated 18,000 BTU recessed infrared rear rotisserie burner and includes the full motorized heavy-duty rotisserie kit.

• Fire Magic Elite Lifetime Warranty: * Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear grids, and the primary stainless steel housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner firebox liners, side burners, and manifold assemblies.

  • 5-Year Protection: Stainless steel flame tamers and 16-gauge flavor grids.

  • 1-Year Protection: Electrical components, wiring harnesses, halogen bulb paths, and analog thermometers.

  • Labor Coverage: Backed by a 2-year factory labor allowance program to assist with residential field service repairs.
