Fire Magic Echelon Diamond E660i 30" Built-In Gas Grill (Analog Thermometer & Magic View Window)

Fire Magic Echelon Diamond E660i 30" Built-In Gas Grill (Analog Thermometer & Magic View Window)

The Fire Magic Echelon Diamond E660i 30" Built-In Gas Grill with Analog Thermometer & Magic View Window (E660i-8LAN/P-W) is an ultra-premium, heavy-duty outdoor cooking appliance proudly manufactured in the USA. Positioned within Fire Magic's flagship elite collection, the E660i series delivers a flawless combination of intense thermal performance, engineering innovation, and high-end visual design.

Featuring a specialized Magic View Window seamlessly integrated into the hood, this 30-inch model acts as an uncompromising centerpiece for high-capacity custom outdoor kitchen islands.

Performance Engineering & Luxury Features

• The Magic View Window: Built with a high-temperature ceramic-glass pane embedded directly into the front slope of the double-walled hood. This luxury element allows chefs to easily monitor steaks, poultry, or fish visually without opening the lid, trapping 100% of the convective heat, moisture, and smoke inside for maximum cooking efficiency.

• Thick Cast Stainless Steel "E" Burners: Driven by three massive main burners precision-forged from 1/4-inch thick premium 304 stainless steel. Weighing up to 12 lbs each, these heavy-duty components output a combined 75,000 BTUs across the main cooking surface and feature an integrated top-lip shroud to completely prevent port clogging from grease or food drippings.

• Patented Diamond Sear Cooking Grids: Outfitted with heavy-gauge trapezoidal 304 stainless steel grids. The bars feature a smooth, flat top measuring over 0.35 inches wide, covering more than half of the total cooking grid surface area. This advanced geometry provides optimal direct thermal contact, ensuring food cooks significantly faster and sears much more evenly.

• High-Efficiency Flavor Grids with Separators: Premium 16-gauge stainless steel flavor grids cover the burners to spread radiant heat and instantly vaporize cooking juices into natural barbecue smoke. Integrated heat zone separators slide between each burner path, allowing you to establish completely isolated cooking zones to simultaneously grill delicate seafood and flash-sear steaks at radically different temperatures.

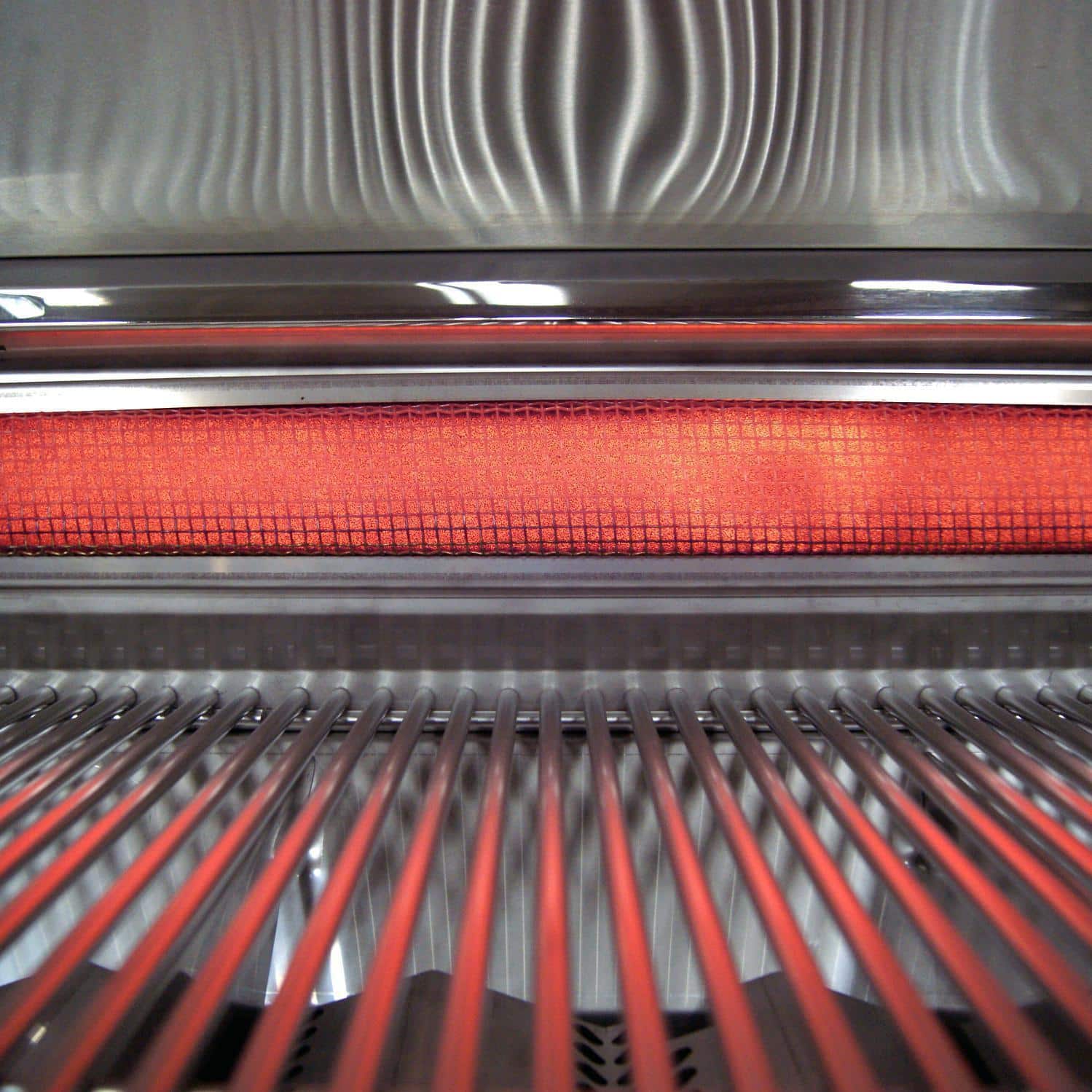

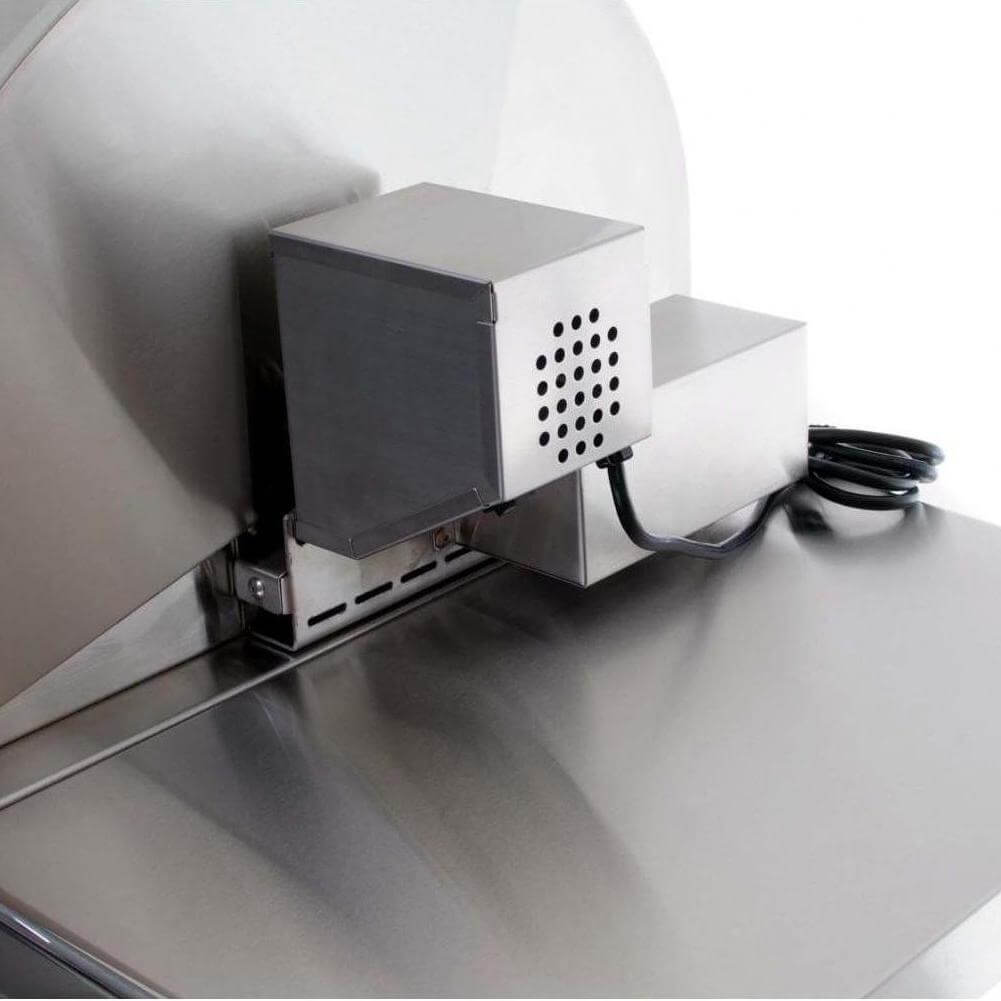

• Recessed Quantum Rotisserie Backburner: Built with an efficient ceramic rotisserie backburner encased in heavy stainless steel mesh foam. Outputting 11,000 BTUs, it uses less fuel than standard backburners while directing radiant heat entirely toward the included heavy-duty motorized rotisserie spit rod kit.

• Dual-Fuel Charcoal Smoker Basket: Every Echelon Diamond grill includes a premium stainless steel charcoal and smoker basket at no additional charge. This allows you to place charcoal briquettes or real wood chunks directly over the gas burners to seamlessly blend convenient gas speed with deep wood-fired smoke flavor.

• Advanced Electric Hot Surface Ignition: Features a reliable 120V AC push-to-light electronic hot surface ignition system. This system delivers fast lighting under any weather condition and is fully backed by dedicated flash tubes for emergency manual ignition backup.

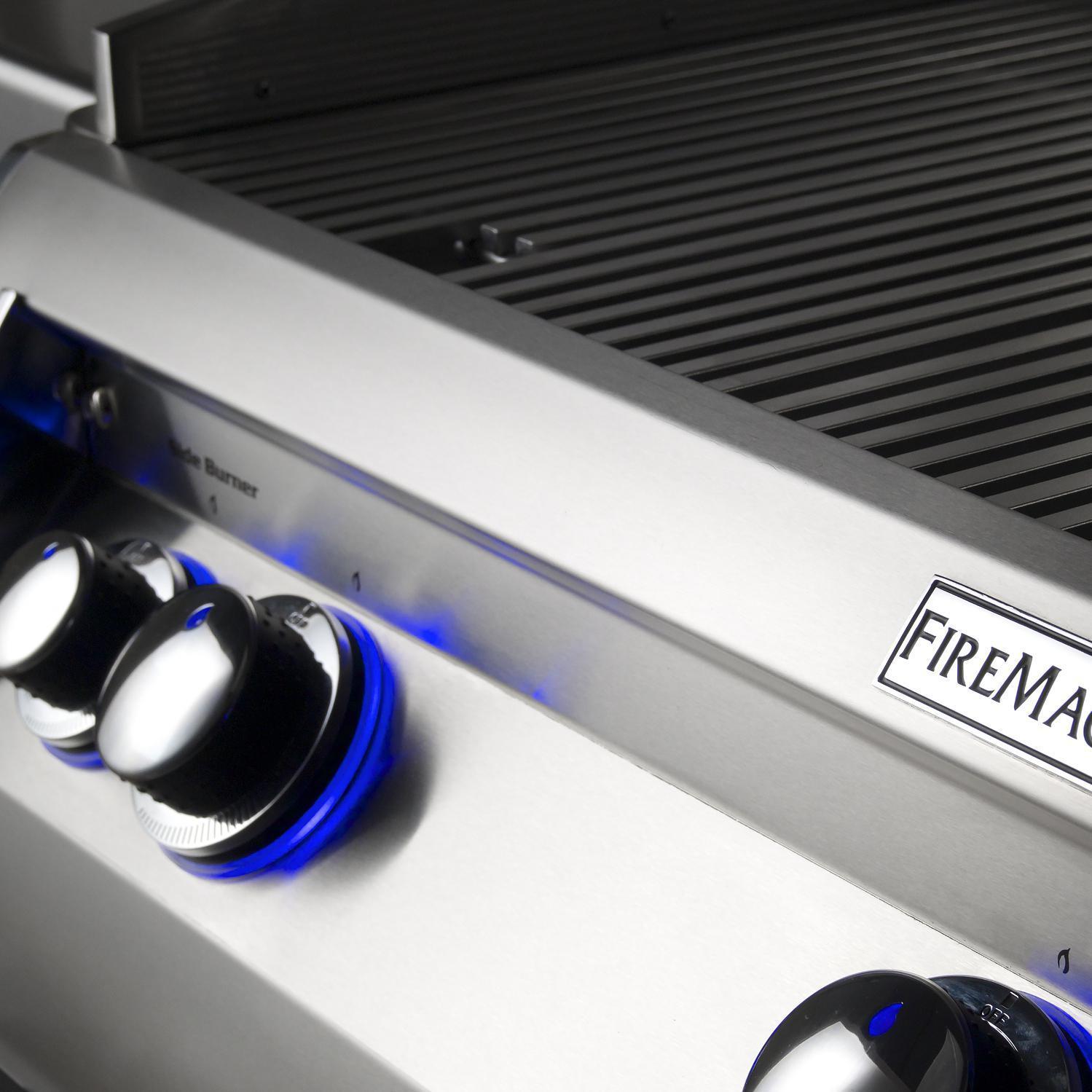

• Evening Ambiance & Smooth Drip Tray: Outfitted with dual integrated, angled interior 12V halogen lights for high visibility during nighttime grilling. The mirror-polished, contoured control panel features back-lit safety knobs that illuminate with a blue glow and turn red when the corresponding burner is turned on. Cleanups are handled by an easy-glide drip tray mounted on smooth roller ball bearings.

• Hood-Embedded Analog Thermometer: Features a large, premium analog dial gauge wrapped in a polished stainless steel bezel. The face is angled forward for clear monitoring up to 1000°F without losing valuable convective heat by lifting the hood.

Technical Specifications & Spatial Footprint

• Primary Cooking Grid Area: 660 square inches (Dimensions: 30” Wide x 22” Deep)

• Secondary Warming Rack Area: 240 square inches (Dimensions: 30” Wide x 8” Deep)

• Total Combined Cooking Space: 900 square inches (Accommodates approximately 24 standard burger patties simultaneously)

• Primary Burner Output Rating: 75,000 BTUs total capacity across the main surface

• Quantum Backburner Rating: Recessed rear infrared rotisserie burner outputting 11,000 BTUs

• Mandatory Island Cutout Dimensions: 31 1/4” Wide x 23 1/2” Deep x 11 1/2” High

• Overall Assembled Dimensions: 34.375" Wide x 30.5" Deep x 27" High

• Total Product Frame Weight: 245 lbs

• Electrical Service Line Drop Required: Requires a standard 110V/120V AC ground connection to power the hot surface ignition, backburner circuits, back-lit control dials, and internal halogen lamps.

Logistics, Configurations, & Factory Warranty

• Fuel Utility Customization: Shipped fully calibrated and pre-configured from the factory floor for either Natural Gas or Liquid Propane (LP) utility connections.

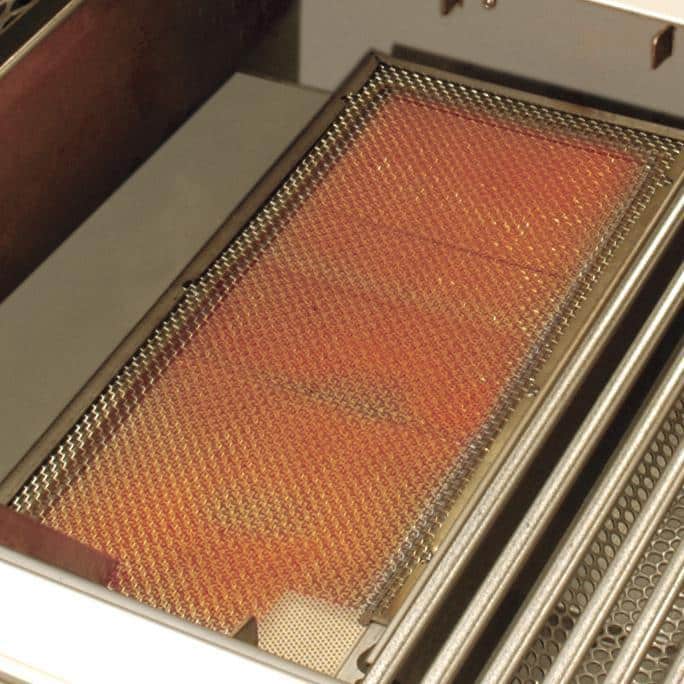

• Left-Side Sear Burner Upgrade Option: Buyers can optionally choose to replace the standard left-side cast burner with a factory-installed high-intensity Infrared Sear Burner at no additional charge for restaurant-tier flash searing.

• Fire Magic Legendary Industry Warranty: * Lifetime Structural Protection: Cast 304 stainless steel burners, Diamond Sear grids, and the primary stainless steel housing are under warranty for as long as you own the grill.

  • 15-Year Protection: Brass control valves, inner liners, manifold assemblies, and backburner elements.

  • 5-Year Protection: Stainless steel flavor grids and charcoal/smoker baskets.

  • 1-Year Protection: Electrical components, wiring harnesses, halogen bulb assemblies, and ignition components.

  • Labor Coverage: Backed by a 2-year factory labor allowance program to assist with residential field service repairs.
