HPC Fire Linear Trough Torpedo Fire Pit Kit (On/Off Electronic Ignition)

HPC Fire Linear Trough Torpedo Fire Pit Kit (On/Off Electronic Ignition)

The Linear Trough Torpedo Drop-In On/Off Electronic Ignition Fire Pit T-Burner Kit by HPC Fire (SKU: TOR-24SSEI-TRGH-NG/120VAC Series) is a premium, automated outdoor gas fire feature insert manufactured by Hearth Products Controls (HPC). Specifically engineered for modern rectangular fire tables, long linear trench pits, or sleek patio divider structures, this high-performance system integrates a heavy-duty, recessed trough basin pan with a specialized linear burner track.

This high-performance configuration pairs HPC's high-velocity Torpedo Nozzle technology with an automated On/Off Electronic Ignition (EI) network, bringing immediate, full-capacity flame presentation to your backyard at the touch of a button.

High-Velocity Torpedo Nozzles & Linear T-Burner Geometry

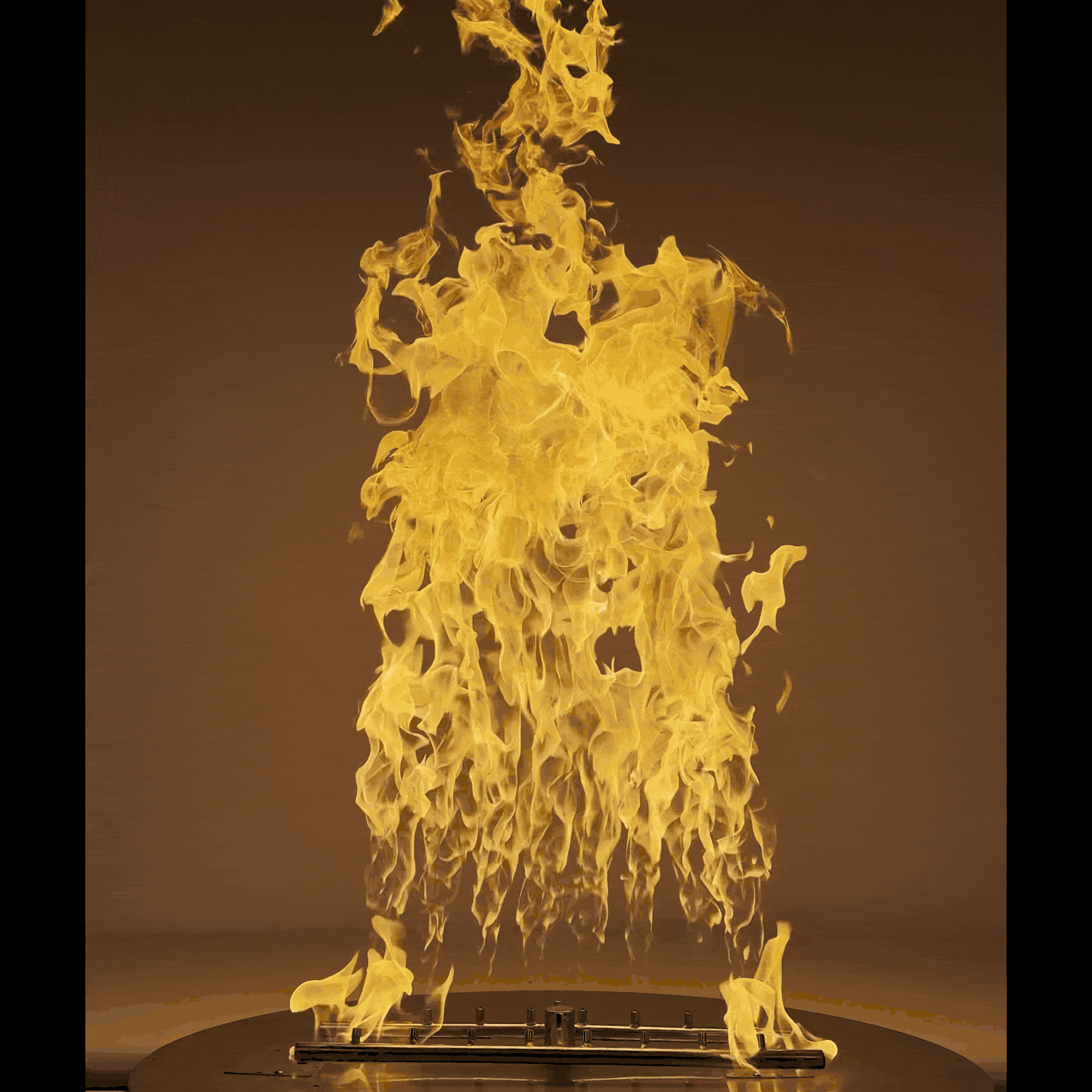

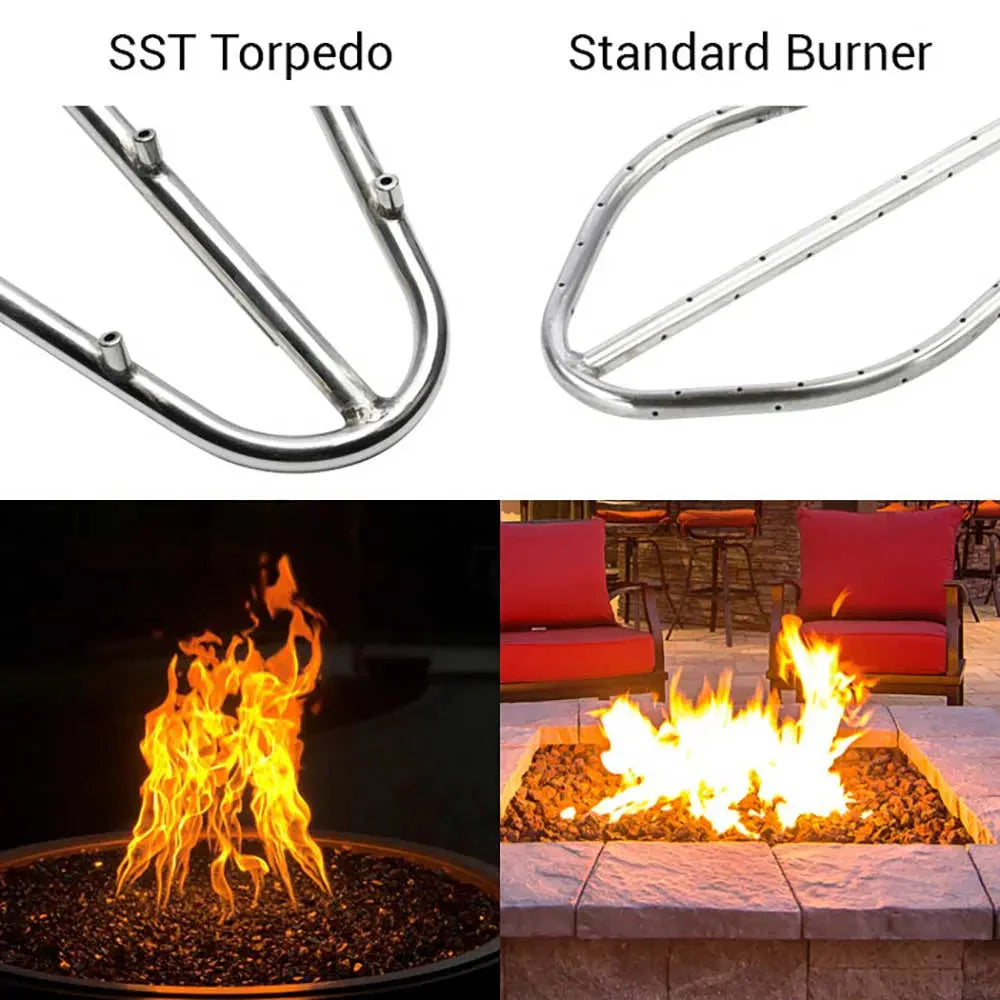

• Roaring Torpedo Flame Booster: Torpedo configurations swap standard drilled burner ports for precision-engineered, heavy-duty brass nozzles. These specialized jets dramatically increase gas-to-oxygen velocity, throwing extra-tall, robust, roaring flames that deliver the intense warmth, motion, and visual presence of an authentic wood bonfire without smoke or ash.

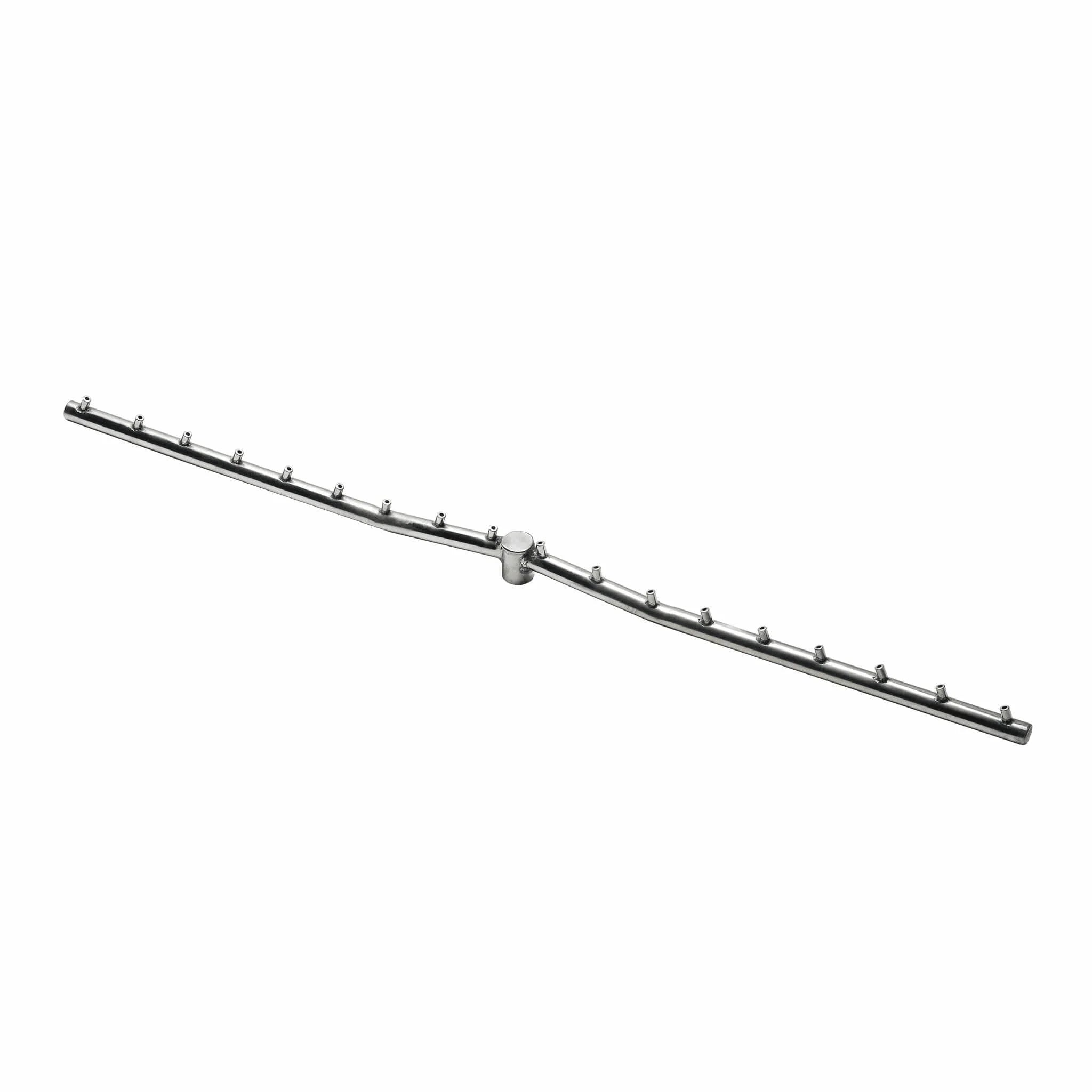

• Wall-Of-Fire Linear T-Burner: Features a heavy-gauge center-line pipe rail burner. By firing high-velocity flames uniformly across a long straight track, it maximizes spatial visual depth across narrow rectangular openings, eliminating cold sections along the fire line.

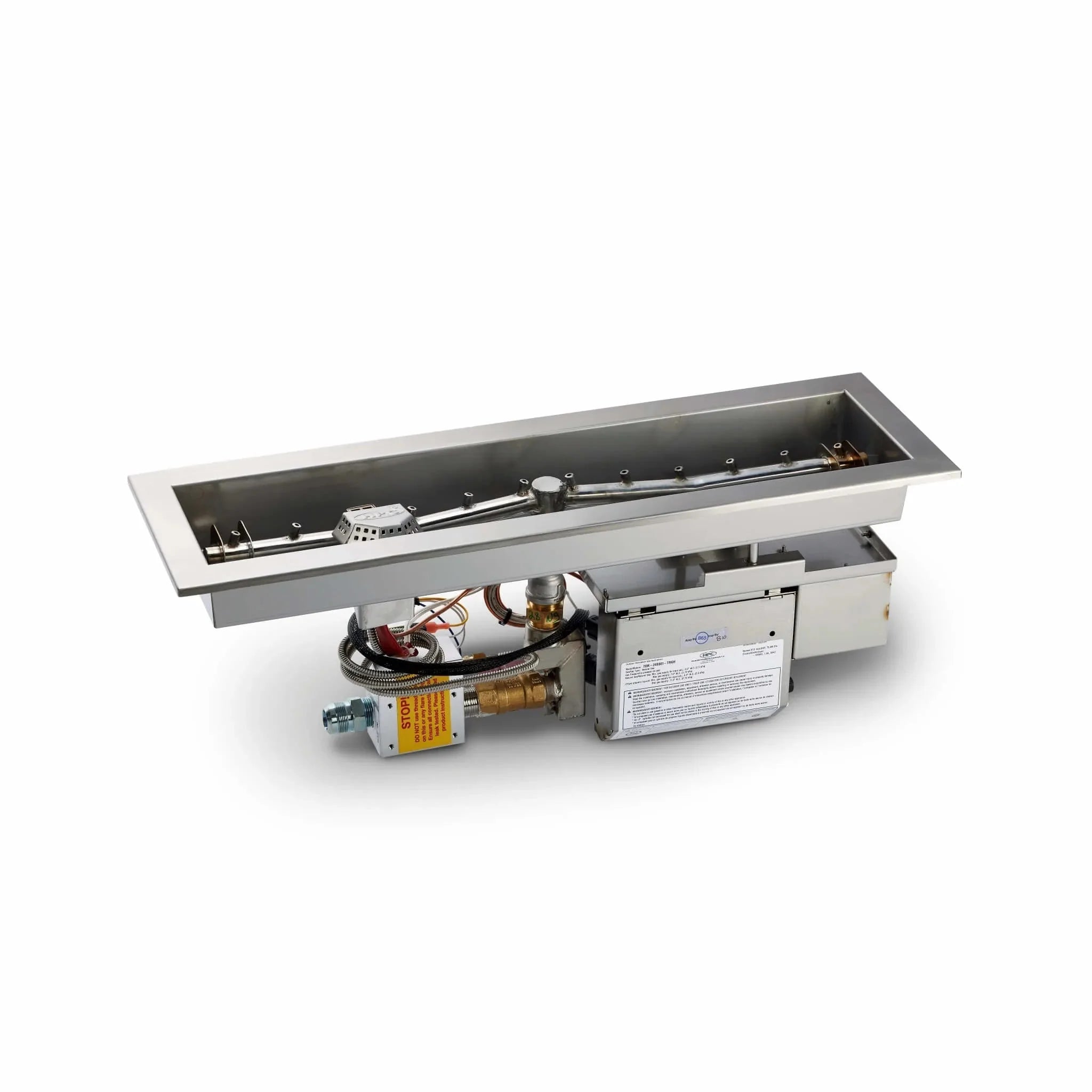

• Deep Drop-In Trough Lip Pan: Unlike low-profile flat plates, this system features a structural trough basin measuring 5.4" Wide with a deep side recess and an integrated perimeter support rim. This lip allows the insert to hang securely from the top cutout opening of your non-combustible enclosure while neatly concealing all electronic gas plumbing valves.

On/Off Electronic Ignition Automation & Safety

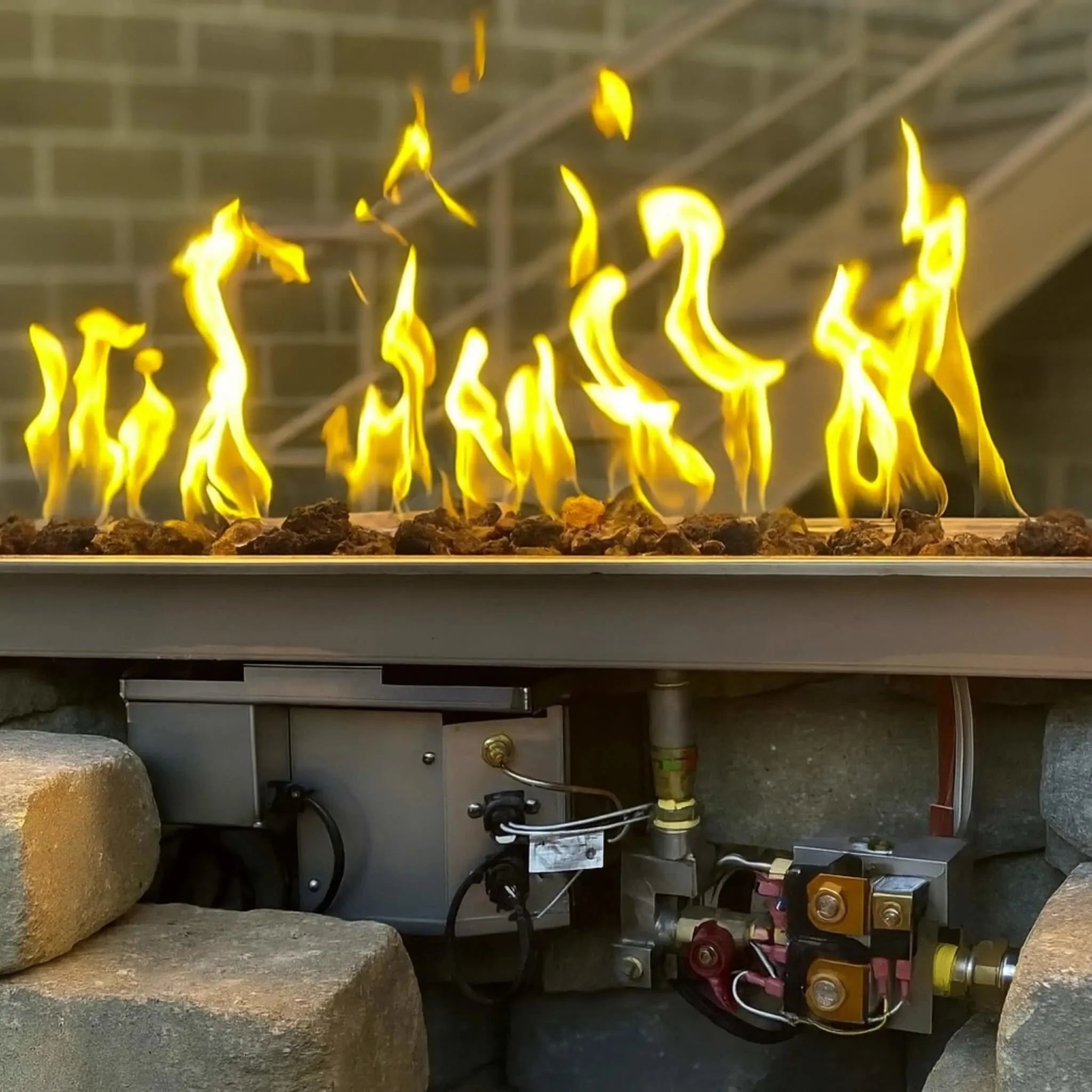

• Auto Re-Ignition & Safety Monitoring: The system features a hot surface ignition system with smart pilot telemetry. It constantly checks for the presence of a flame. If a sudden gust of wind unexpectedly blows out the fire, the smart valve immediately shuts down the gas flow to prevent dangerous accumulation, then initializes a safe, automatic re-light sequence.

• Streamlined Control Infrastructure: Built for absolute operational simplicity, the system activates to its maximum height on a single command. It is fully compatible with optional hand-held remotes, wall switches, or standard home automation systems, removing the need for matches or lighters.

• Overheat Diagnostic Guard: Built-in internal temperature sensors actively monitor the lower circuitry chamber. If improper fire media nesting or poor base cavity ventilation causes heat to spike beyond safe boundaries, the system executes an emergency auto-shutoff to protect internal circuit boards.

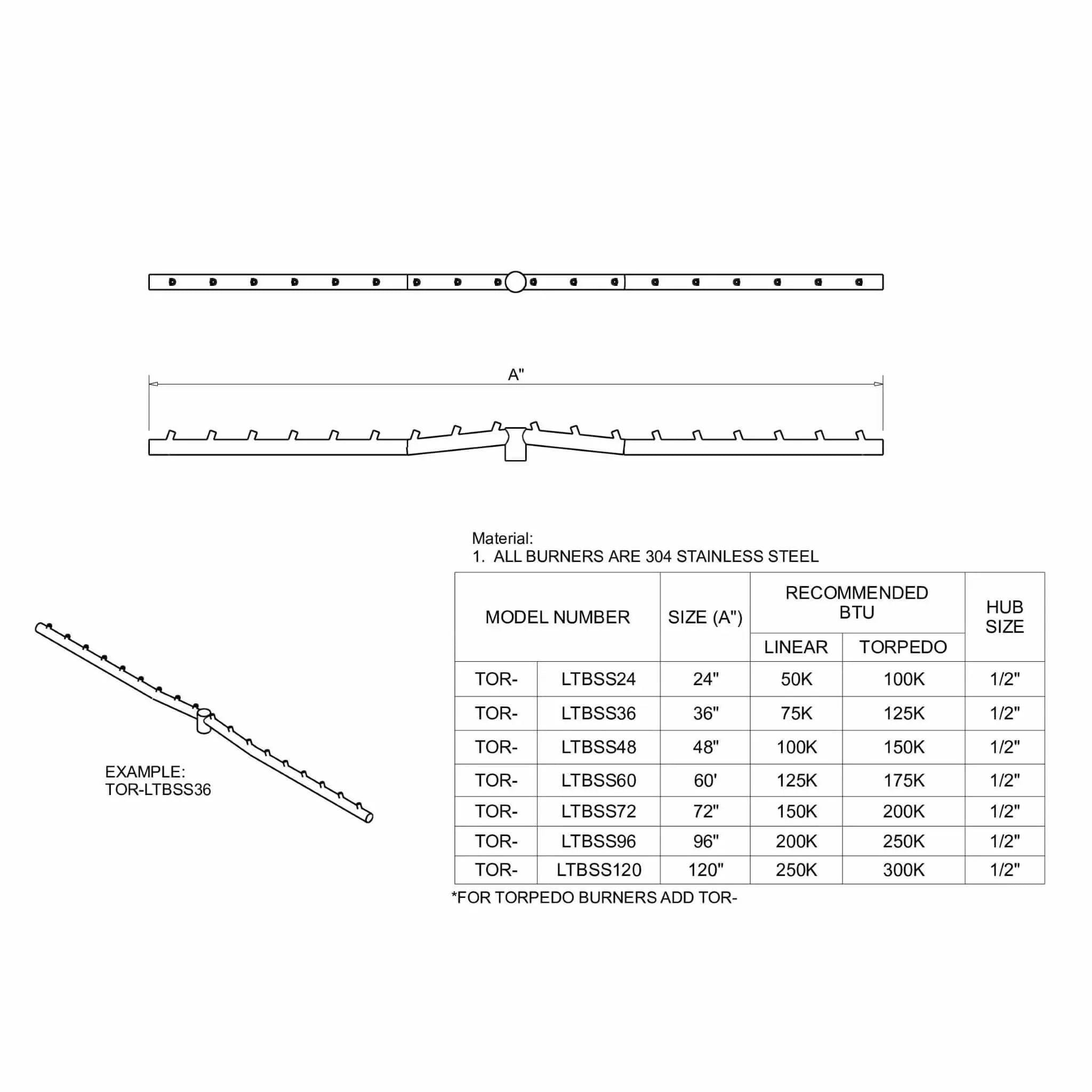

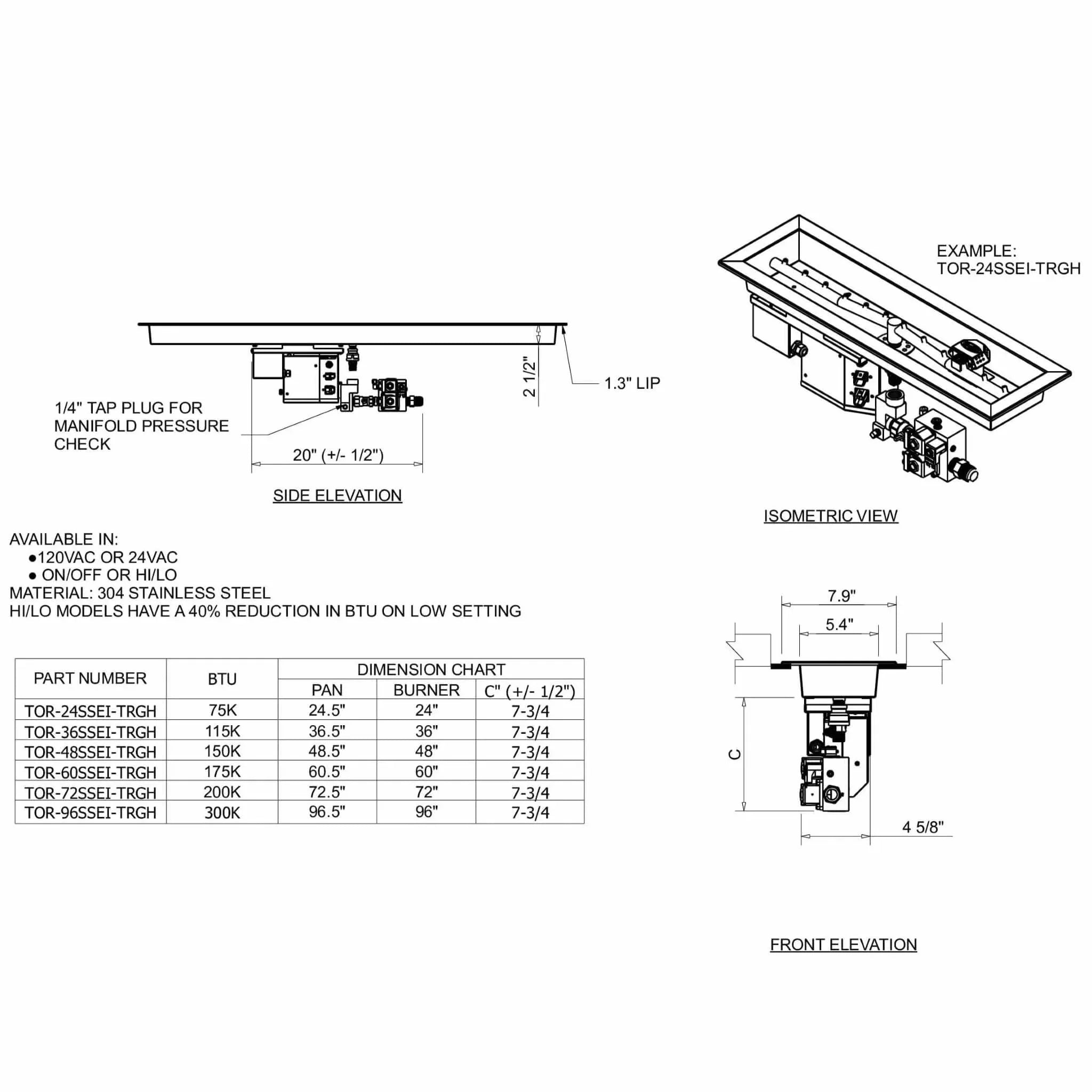

Technical Specifications & Sizing Scaling

• Trough Pan Length Profiles & Total Thermal Outputs (Dependent on Sizing):

  • 24" x 5.4" Pan (with 23.5" T-Burner): Fires up to 75,000 BTUs (Holds approx. 20 lbs of fire glass)

  • 36" x 5.4" Pan (with 35.5" T-Burner): Fires up to 115,000 BTUs (Holds approx. 30 lbs of fire glass)

  • 48" x 5.4" Pan (with 47.5" T-Burner): Fires up to 150,000 BTUs (Holds approx. 40 lbs of fire glass)

  • 60" x 5.4" Pan (with 59.5" T-Burner): Fires up to 175,000 BTUs (Holds approx. 40 lbs of fire glass)

  • 72" x 5.4" Pan (with 71.5" T-Burner): Fires up to 200,000 BTUs (Holds approx. 50 lbs of fire glass)

  • 96" x 5.4" Pan (with 95.5" T-Burner): Fires up to 300,000 BTUs (Holds approx. 60 lbs of fire glass)

• Chassis Material Composition: 100% heavy-gauge, weather-resistant commercial-grade #304 stainless steel pan, burner rails, and weather-sealed lower valve control box.

• Self-Draining Infrastructure: Engineered with integrated weep holes across the pan basin floor and a specialized raised center burner hub that actively diverts rainwater from getting trapped inside the gas manifold lines.

• Dedicated Fuel Utility Options: Factory-built, safety-tested, and serialized precisely for either Natural Gas or Liquid Propane (LP) Gas HARDLINE connections.

• Power Supply Track Options: Selectable at purchase for either standard residential 120 VAC (equipped with a 3-prong outdoor-grounded GFCI plug cord) or a low-voltage 24 VAC track (ideal for pool zones; requires an external step-down transformer box, sold separately).
