HPC Fire Rectangle Torpedo Drop-In Fire Pit Kit (On/Off Electronic Ignition)

HPC Fire Rectangle Torpedo Drop-In Fire Pit Kit (On/Off Electronic Ignition)

The Rectangle Torpedo Drop-In On/Off Electronic Ignition Fire Pit H-Burner Kit by HPC Fire is an ultra-premium, high-velocity gas fire pit insert engineered for luxury outdoor spaces. This specialized kit combines a deep drop-in pan and a dual-lane H-Burner layout with HPC’s ground-breaking Torpedo Nozzle technology. The On/Off Electronic Ignition (EI) system provides seamless, single-command lighting with a static, full-capacity flame height, making it an exceptional choice for automated residential patios, resorts, and upscale commercial venues.

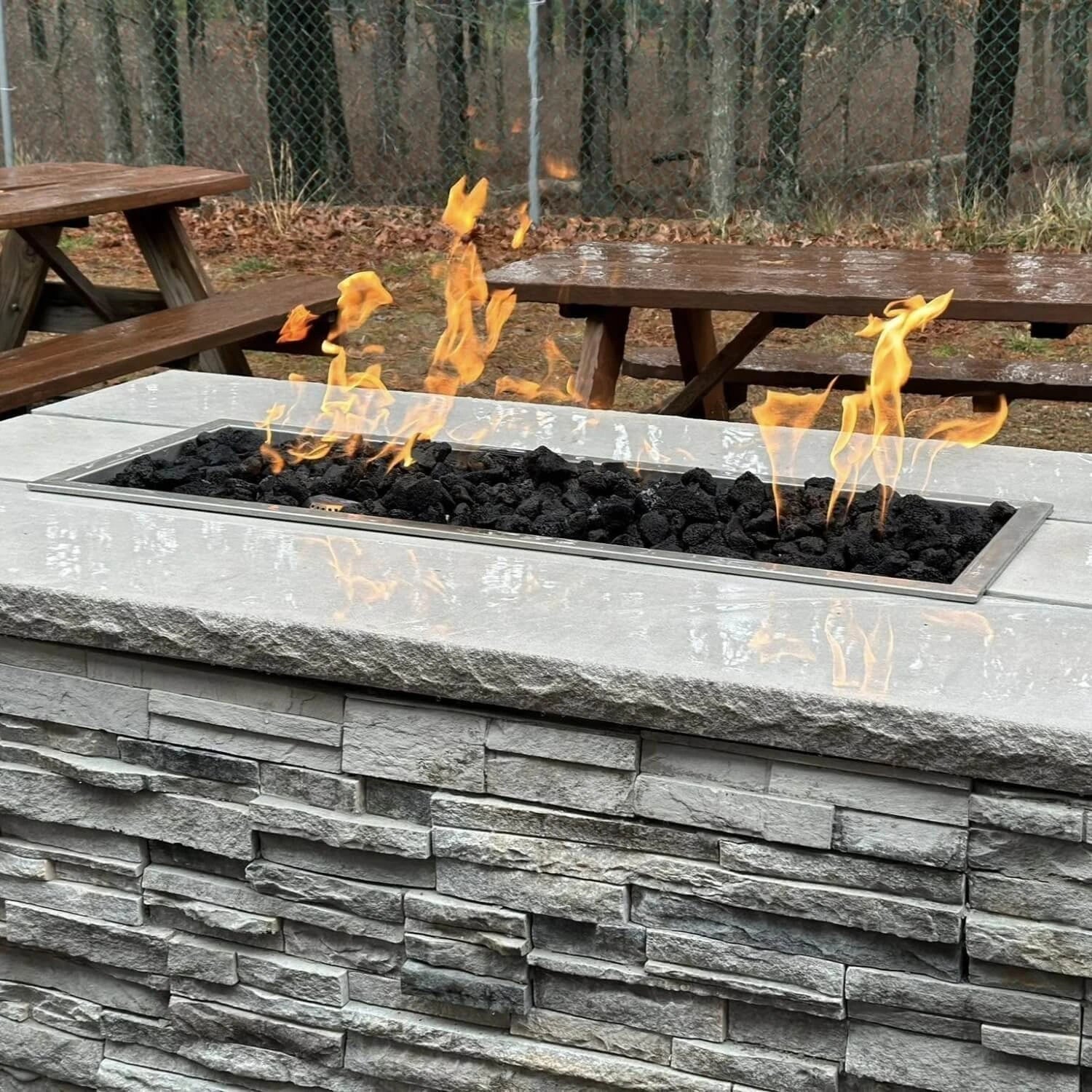

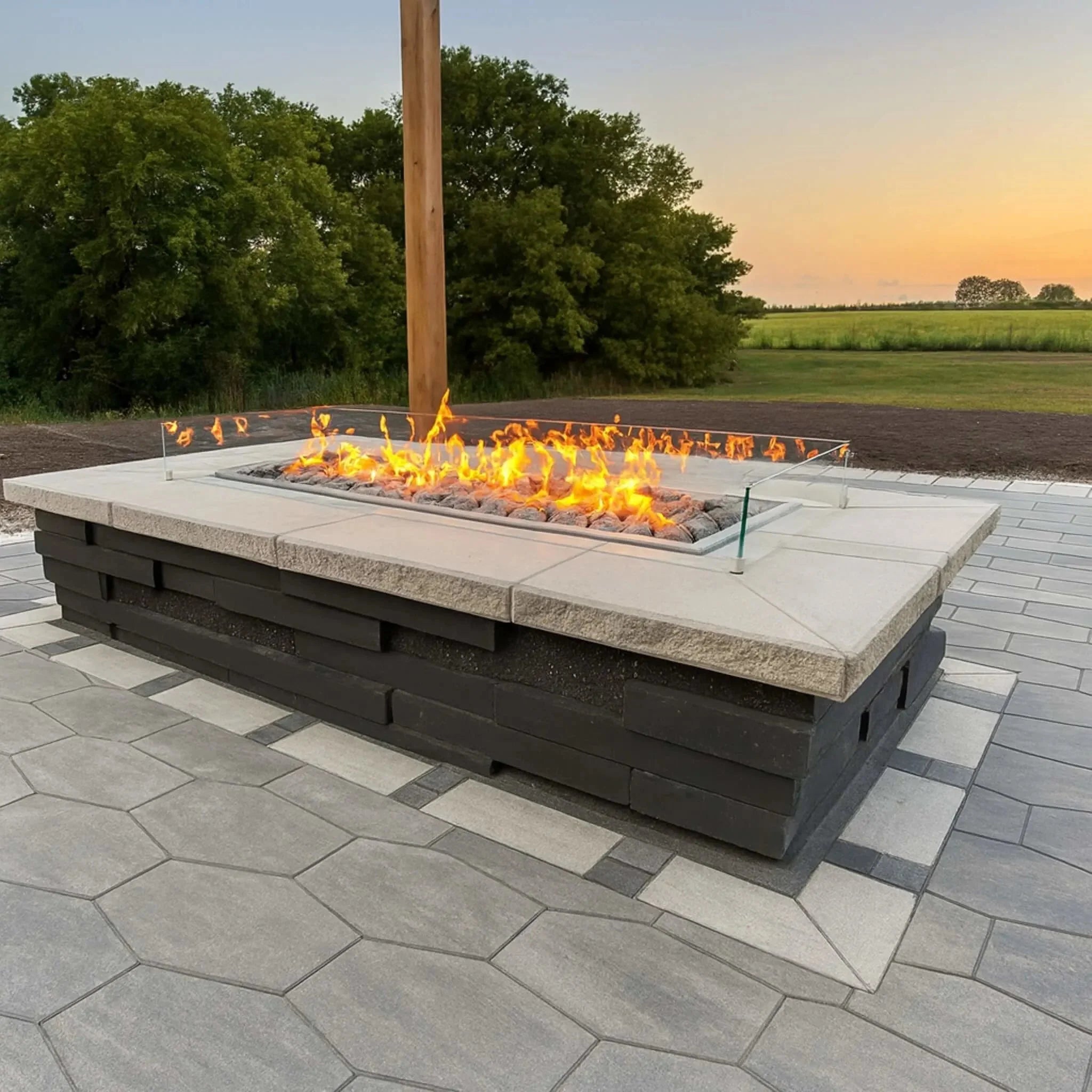

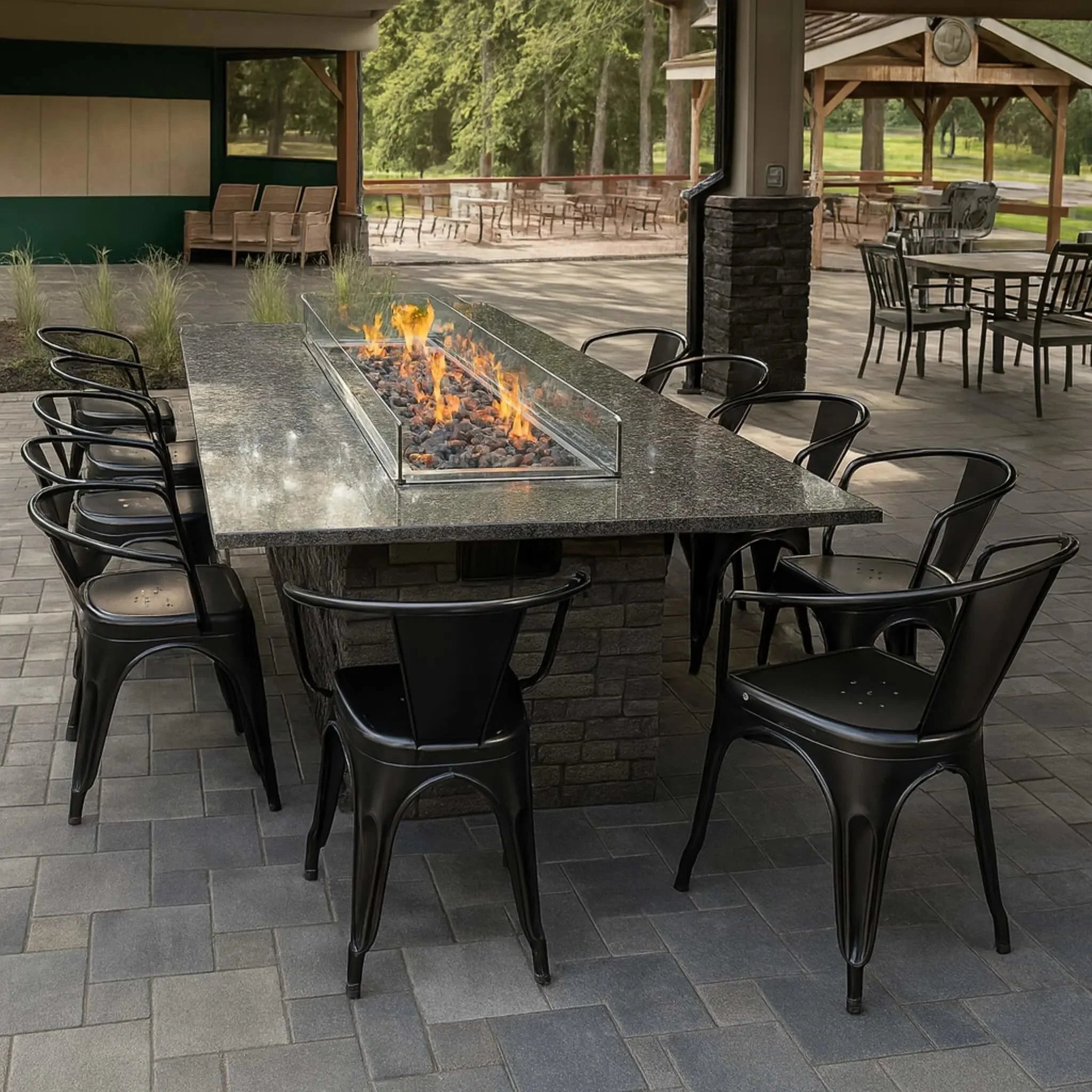

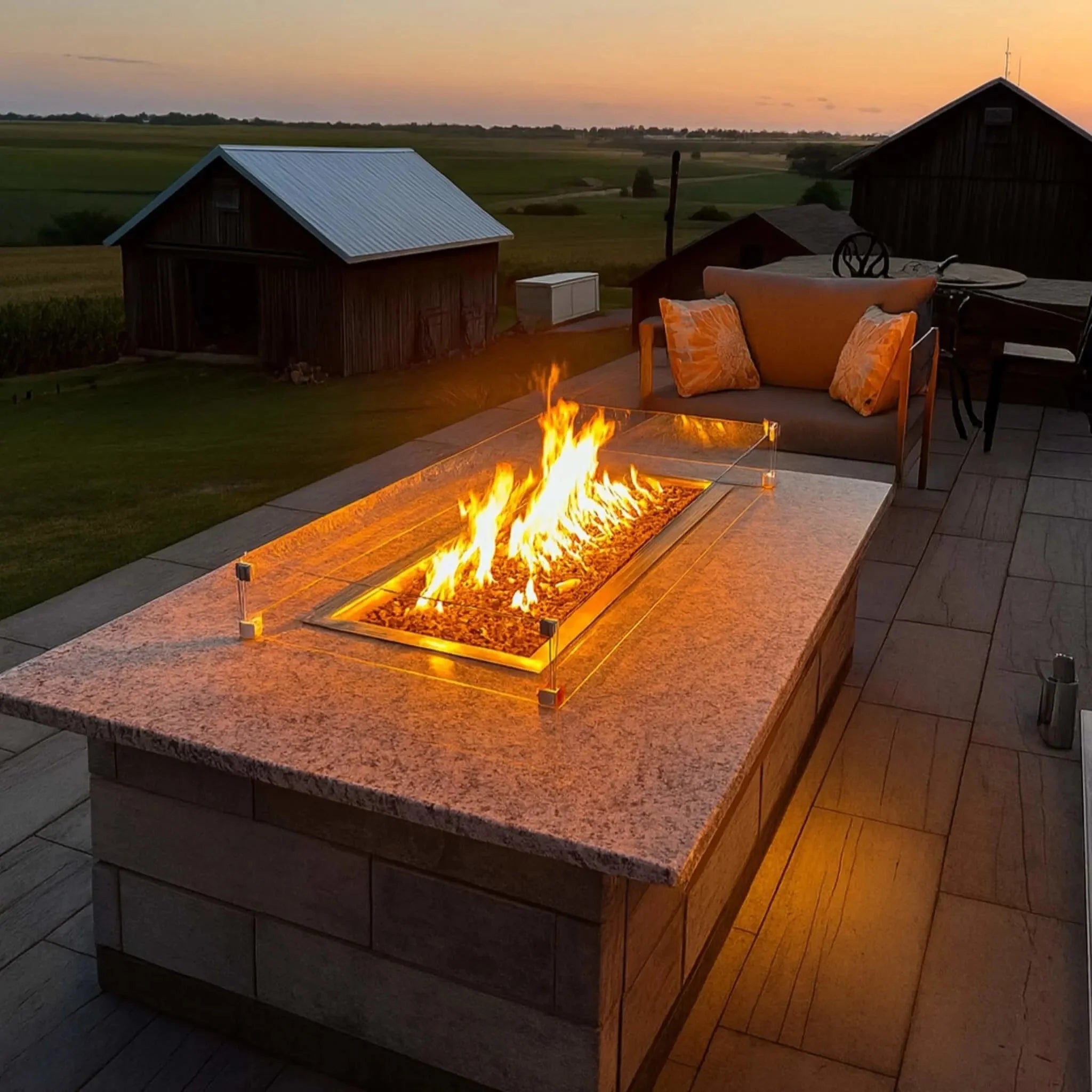

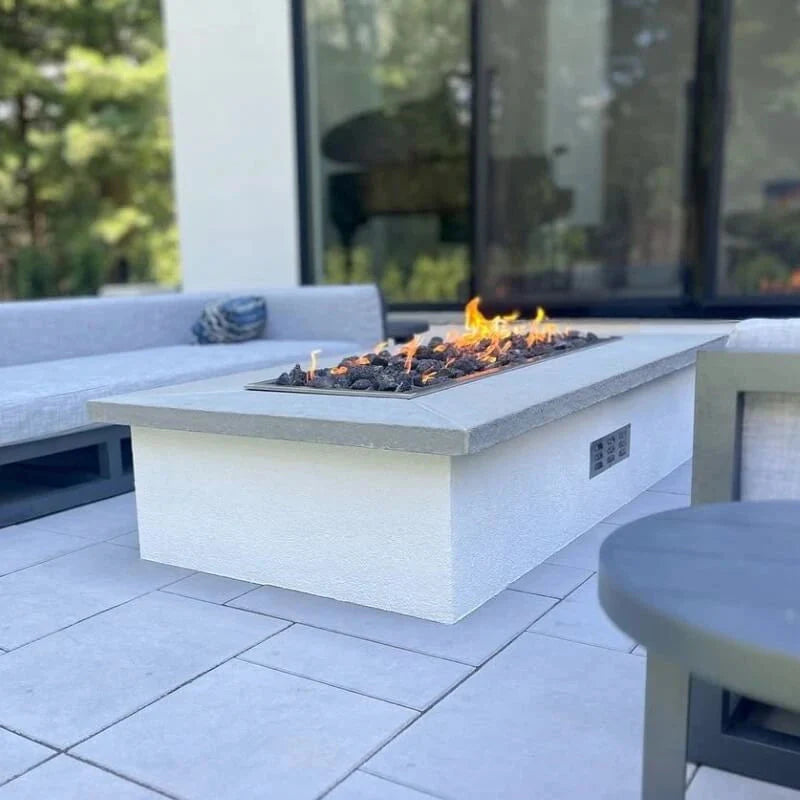

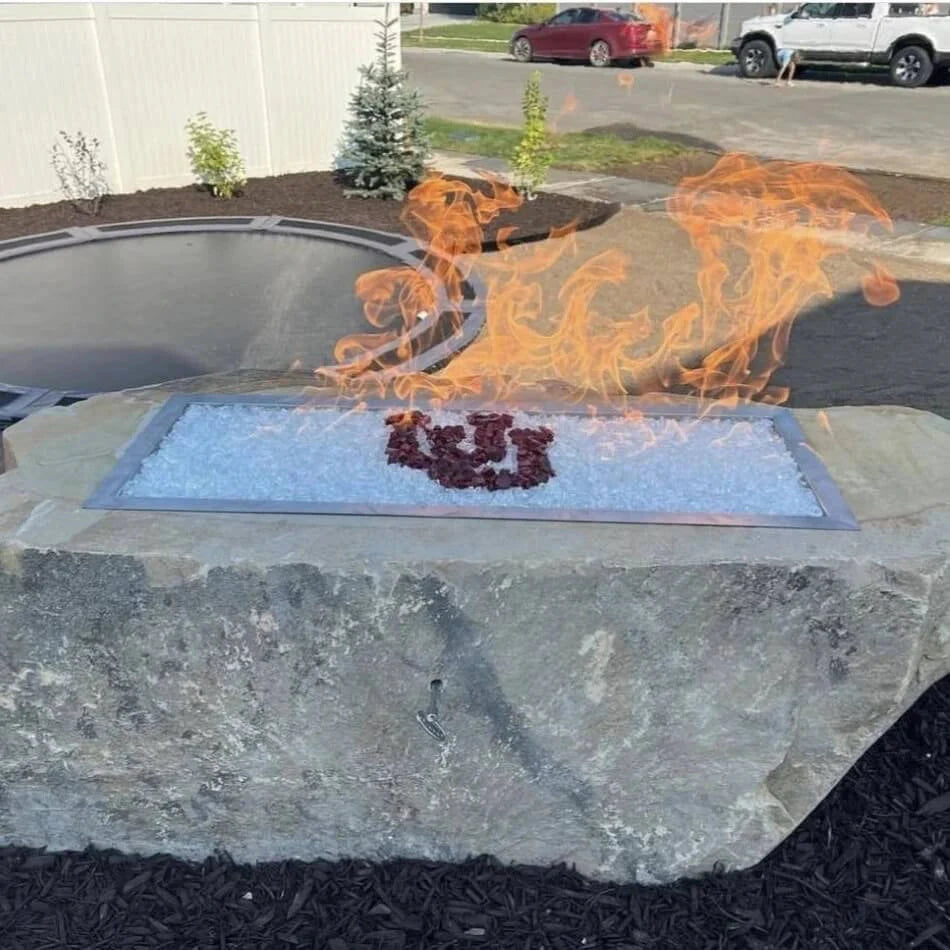

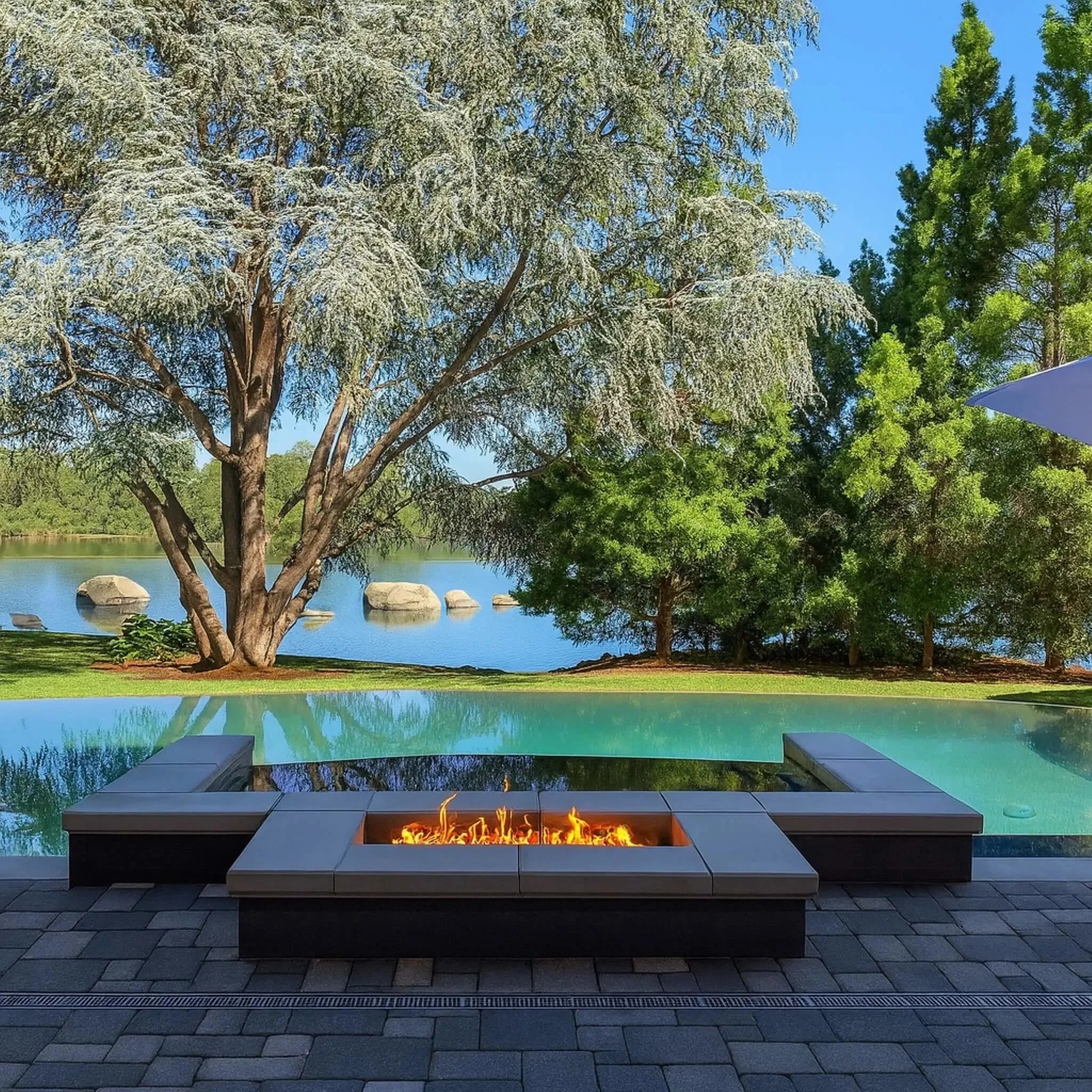

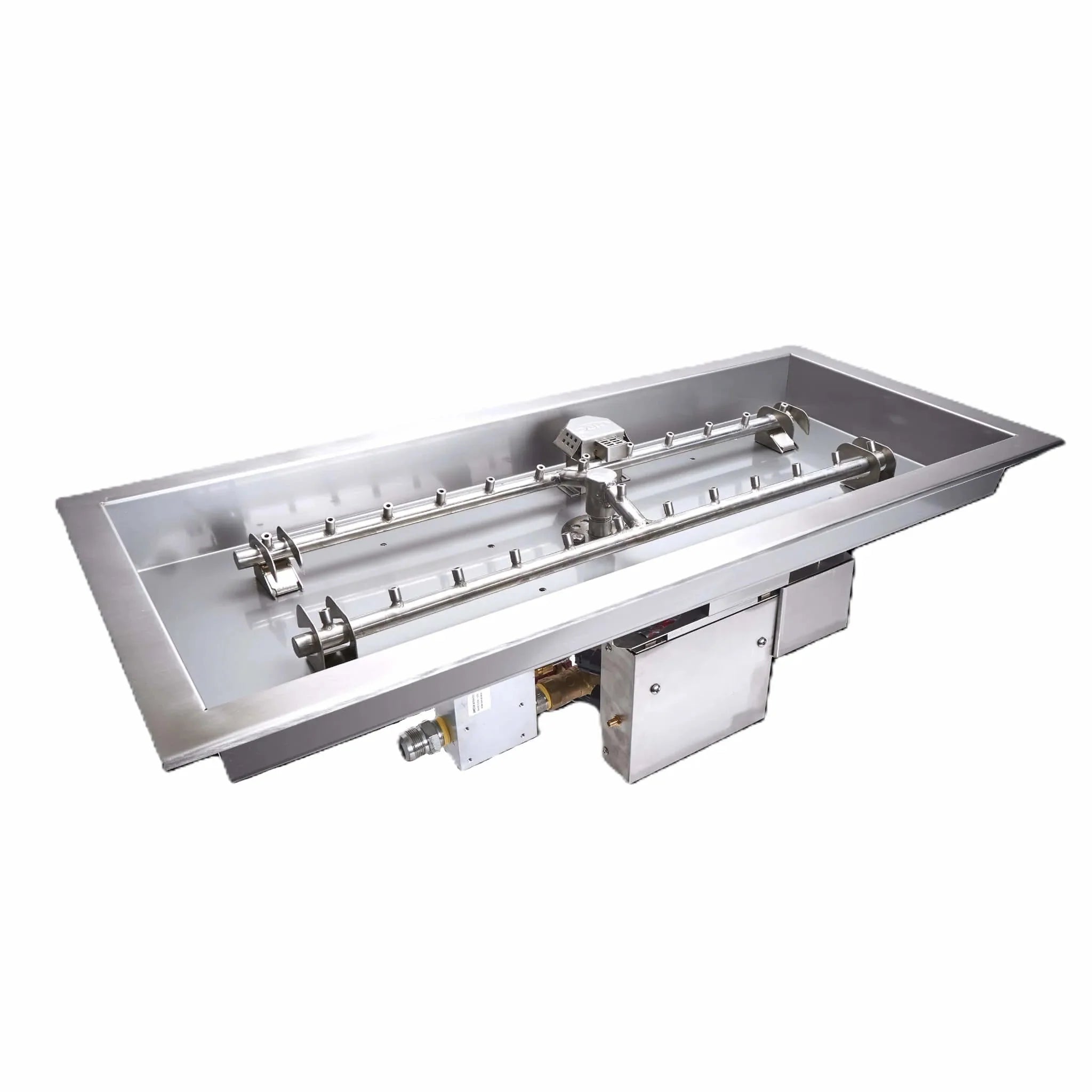

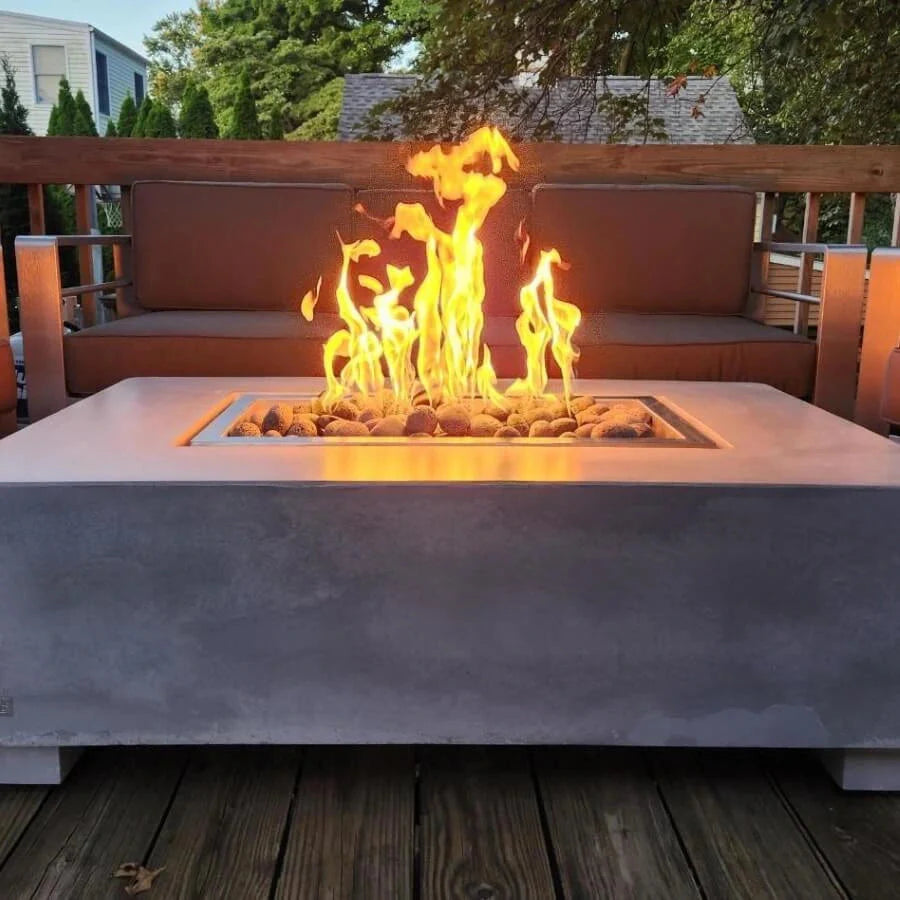

Arriving fully pre-assembled and safety-tested from the factory, this commercial-grade insert drops smoothly into custom rectangular stone, brick, paver, or concrete fire pit tables.

High-Velocity Torpedo Nozzles & Dual-Lane H-Burner

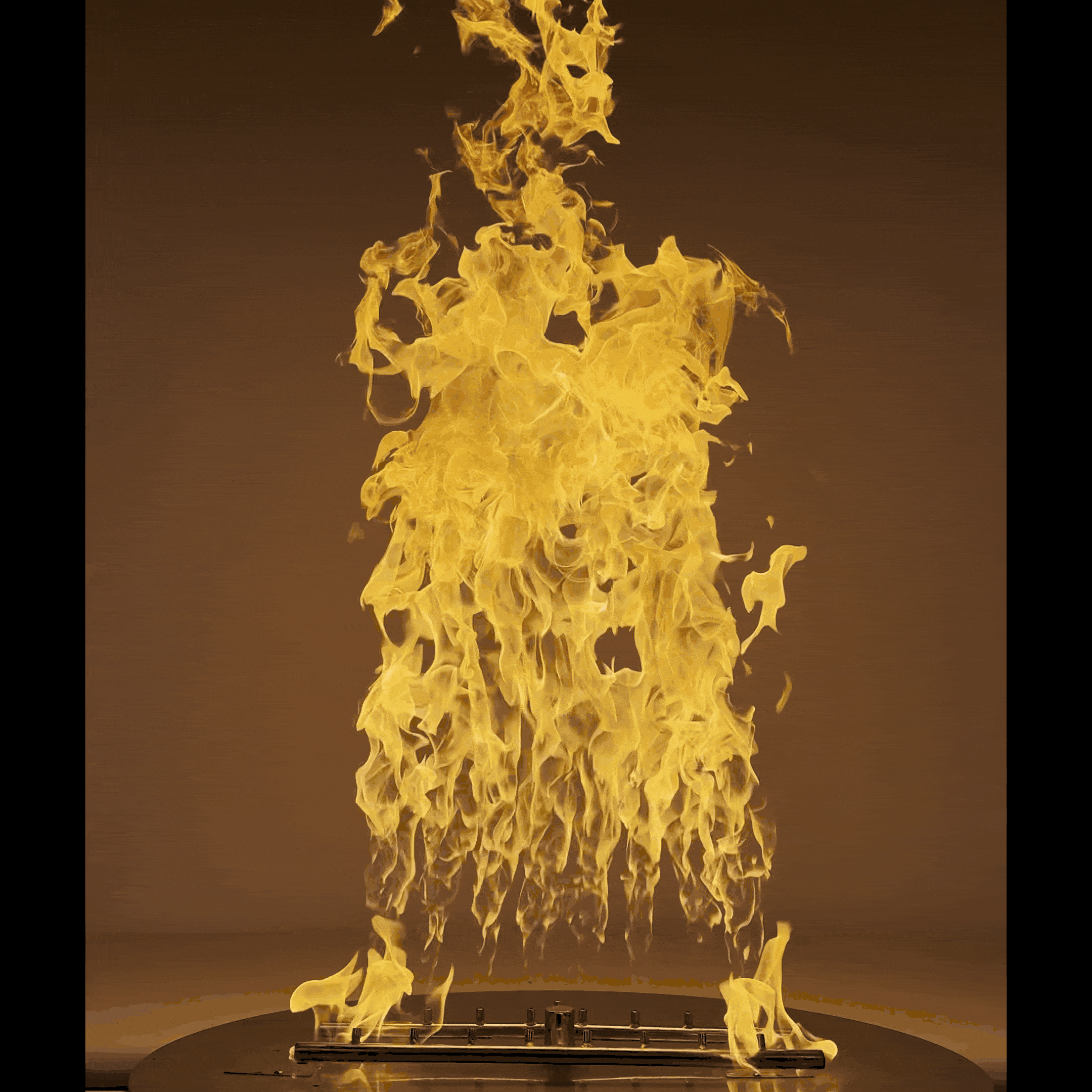

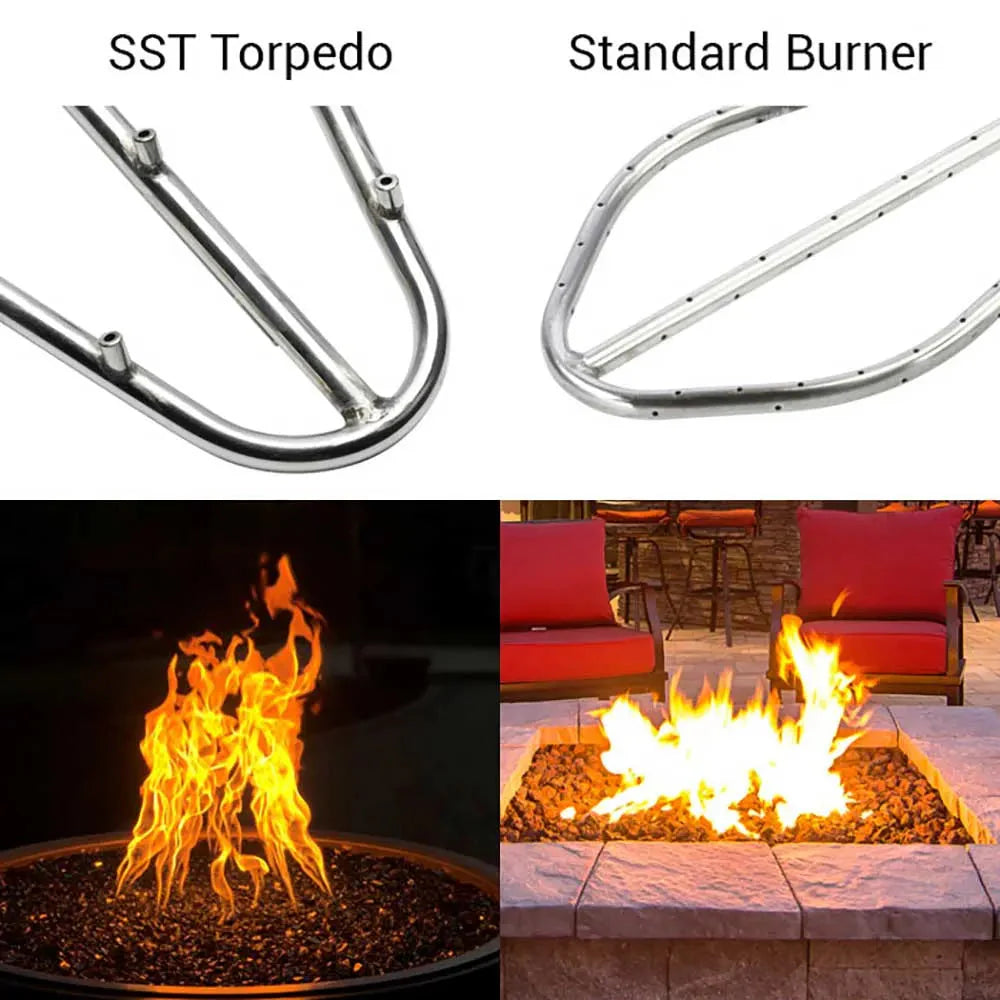

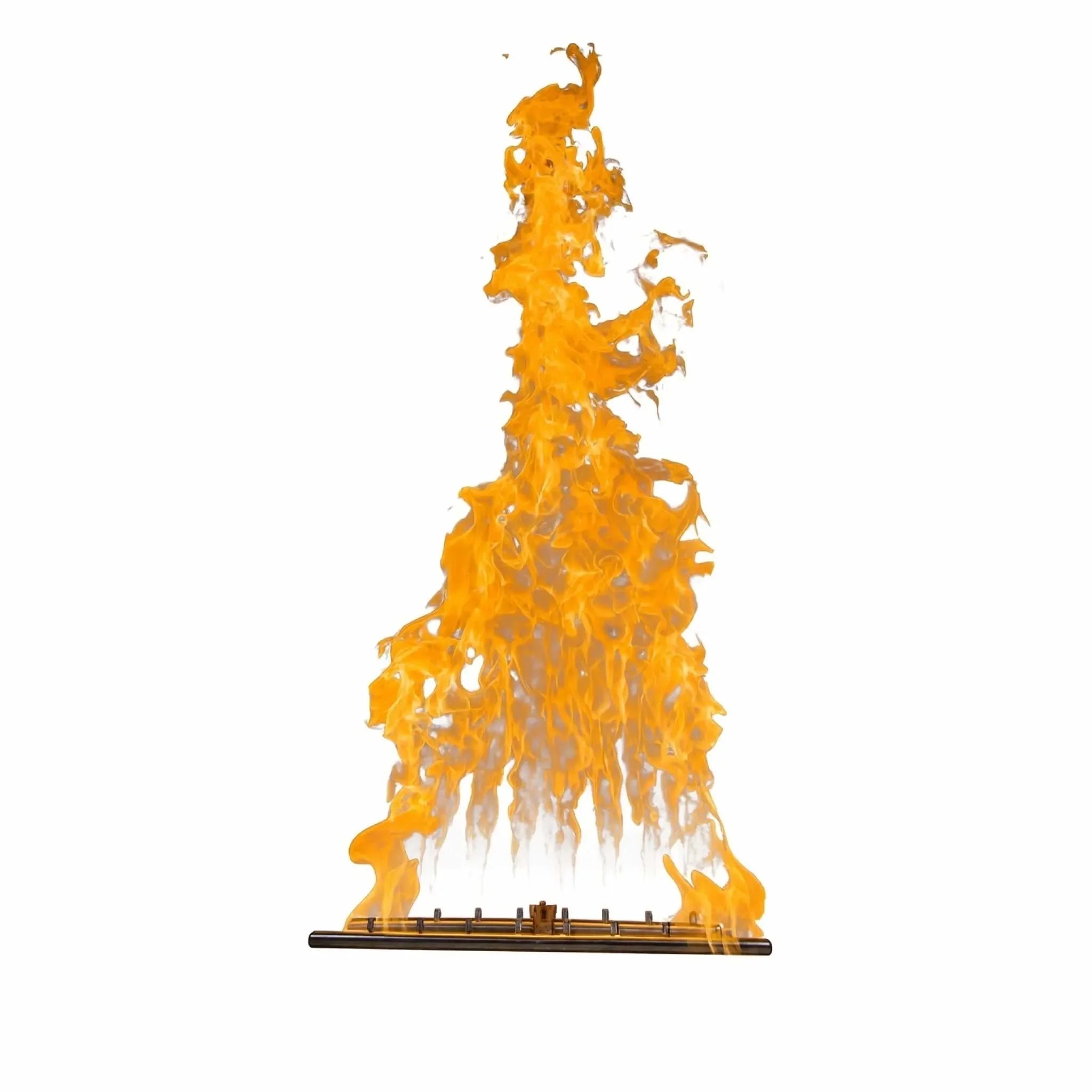

• Roaring Torpedo Flame Booster: Torpedo configurations swap standard drilled burner ports for precision-engineered, heavy-duty brass nozzles. These specialized jets dramatically increase gas velocity, drawing in more oxygen to throw extra-tall, robust, roaring flames that replicate the dramatic, turbulent look of a real wood campfire.

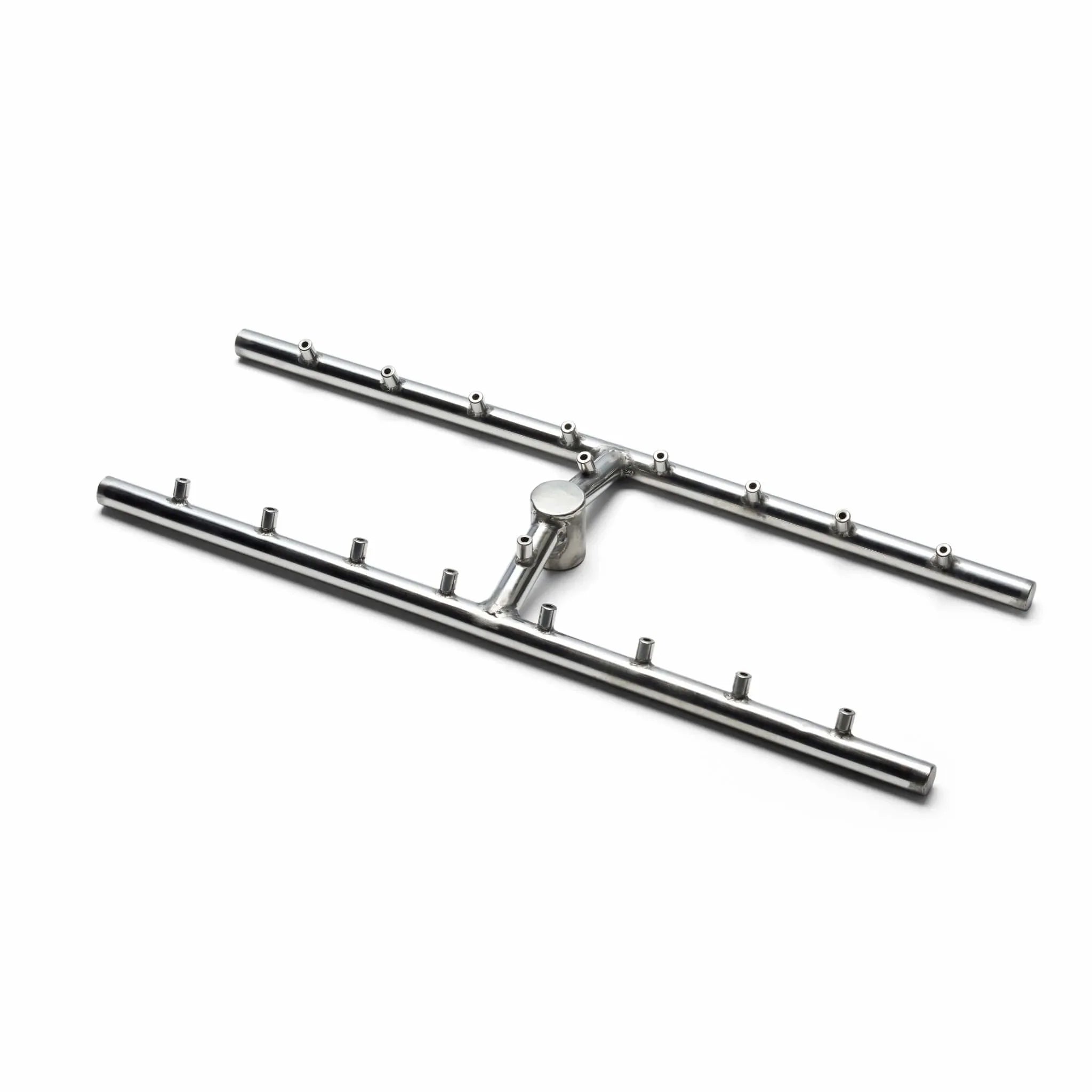

• Full-Bodied H-Burner Geometry: Unlike basic single-line linear burners that create a thin wall of fire, the H-Burner utilizes two parallel burner tracks joined across a central fuel bridge. This layout spreads the flames across the full width of the rectangular footprint, creating a dense sheet of fire with rich visual depth.

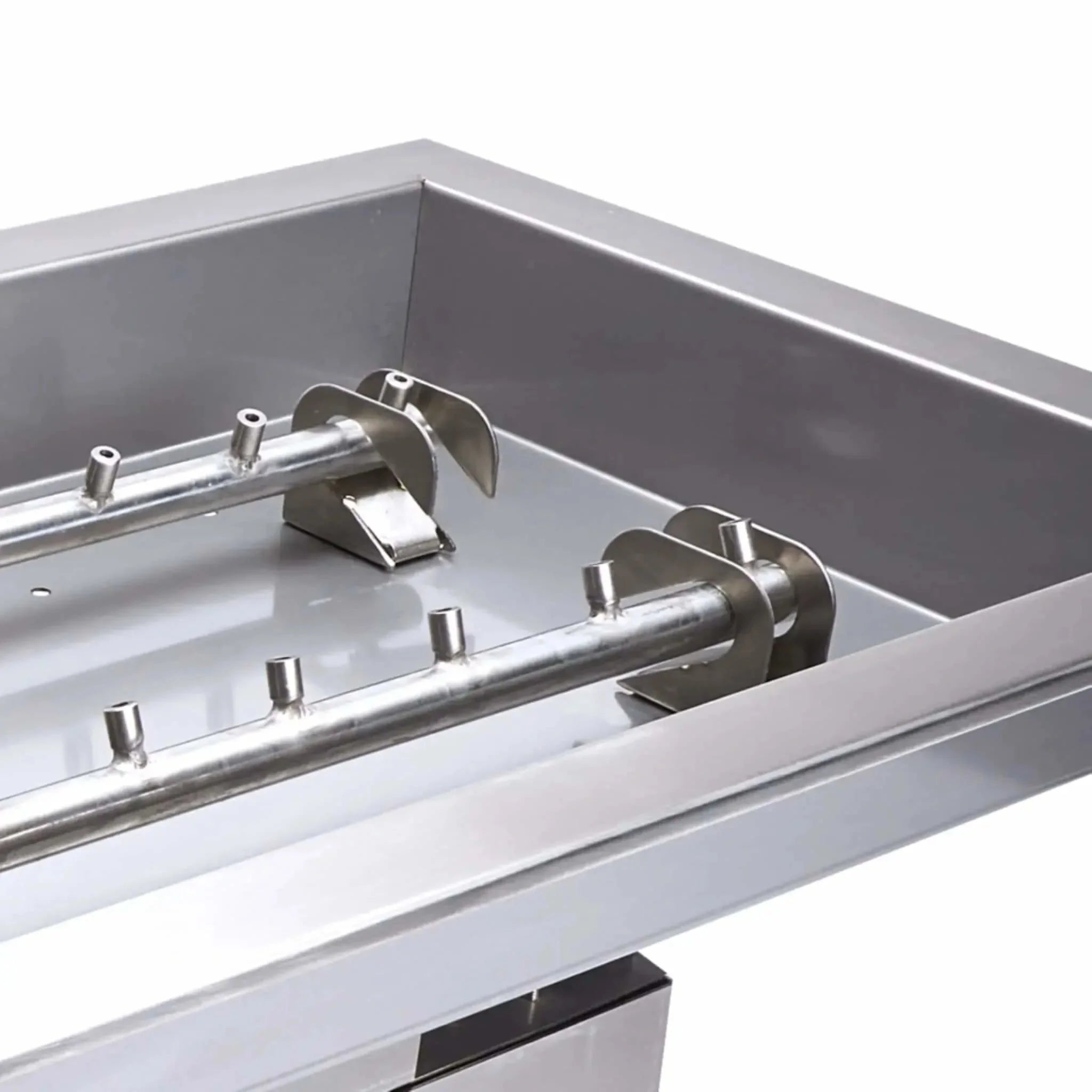

• Heavy-Duty Drop-In Lip Pan: Built with a deep rectangular pan featuring a robust 1.5-inch integrated perimeter support rim. This lip allows the insert to hang securely from the top opening of your non-combustible fire feature enclosure, hiding all plumbing out of sight.

On/Off Electronic Ignition Automation & Safety

• Two-Way Bluetooth Smart Technology: Outfitted with an on-board smart internal antenna that syncs wirelessly with the free, proprietary HPC Fire app (iOS and Android). This allows you to safely light or extinguish your fire pit from up to 20 feet away, check real-time system metrics, and perform wireless troubleshooting.

• Turnkey On/Off Remote Command: Includes a dedicated smart handheld remote control. Designed for absolute operational simplicity, a single press down on the remote button throws an immediate spark to ignite the system instantly to full, maximized thermal heat and height output.

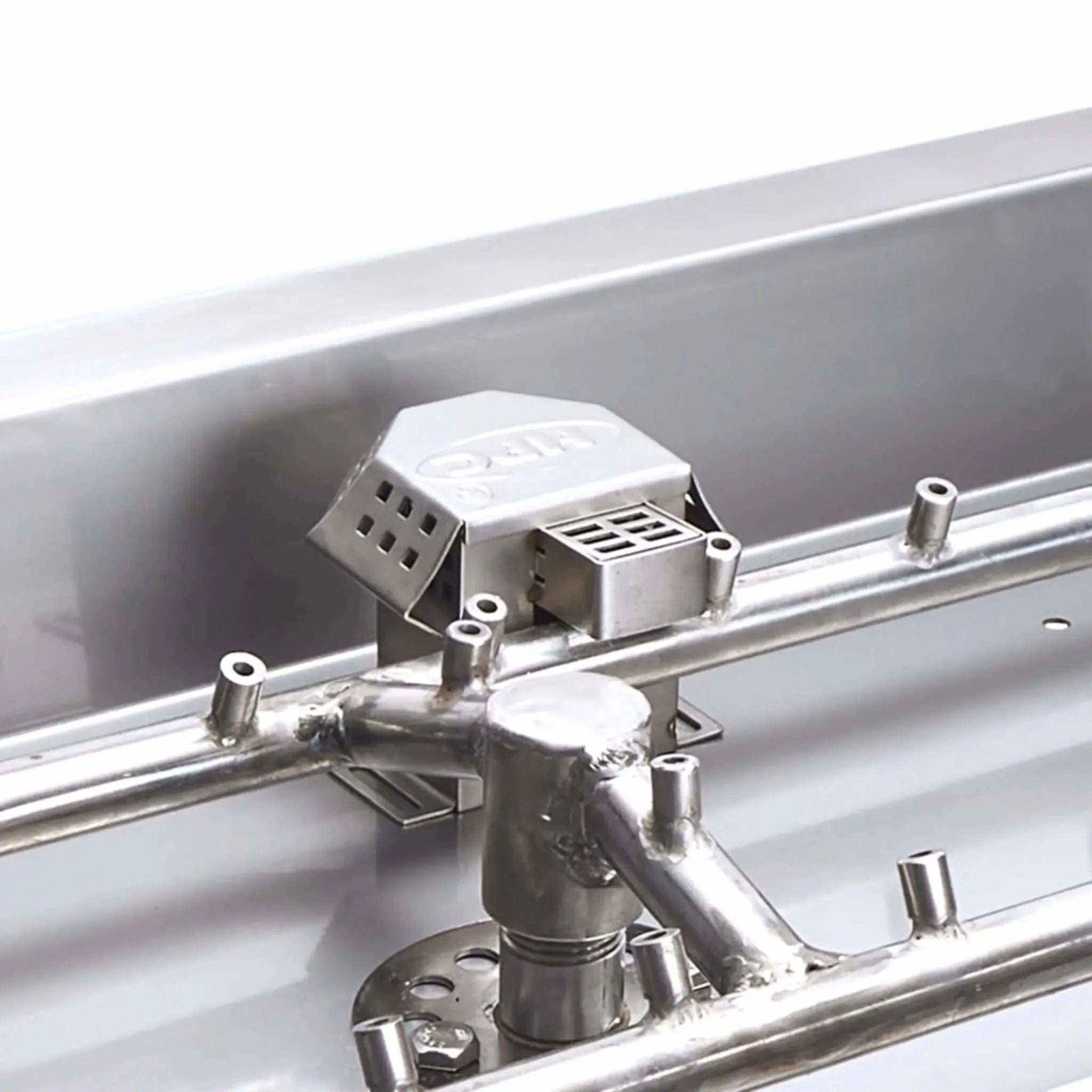

• Hot Surface Ignition (HSI) & Auto-Relight Protection: Uses a highly durable hot surface igniter paired with an advanced pilot flame loop and internal thermocouple. The safety module constantly monitors the fire path. If an aggressive gust of wind unexpectedly blows out the flame, the gas valve instantly closes to prevent pooling, then initializes a safe, immediate automatic re-ignition sequence.

• Overheat Diagnostic Auto-Shutoff: Recessed inside a weather-sealed lower control box are smart thermal sensors. If poor ventilation or improper fire media nesting causes the interior cabinet space to overheat, the system triggers an emergency shutoff to protect the internal digital boards.

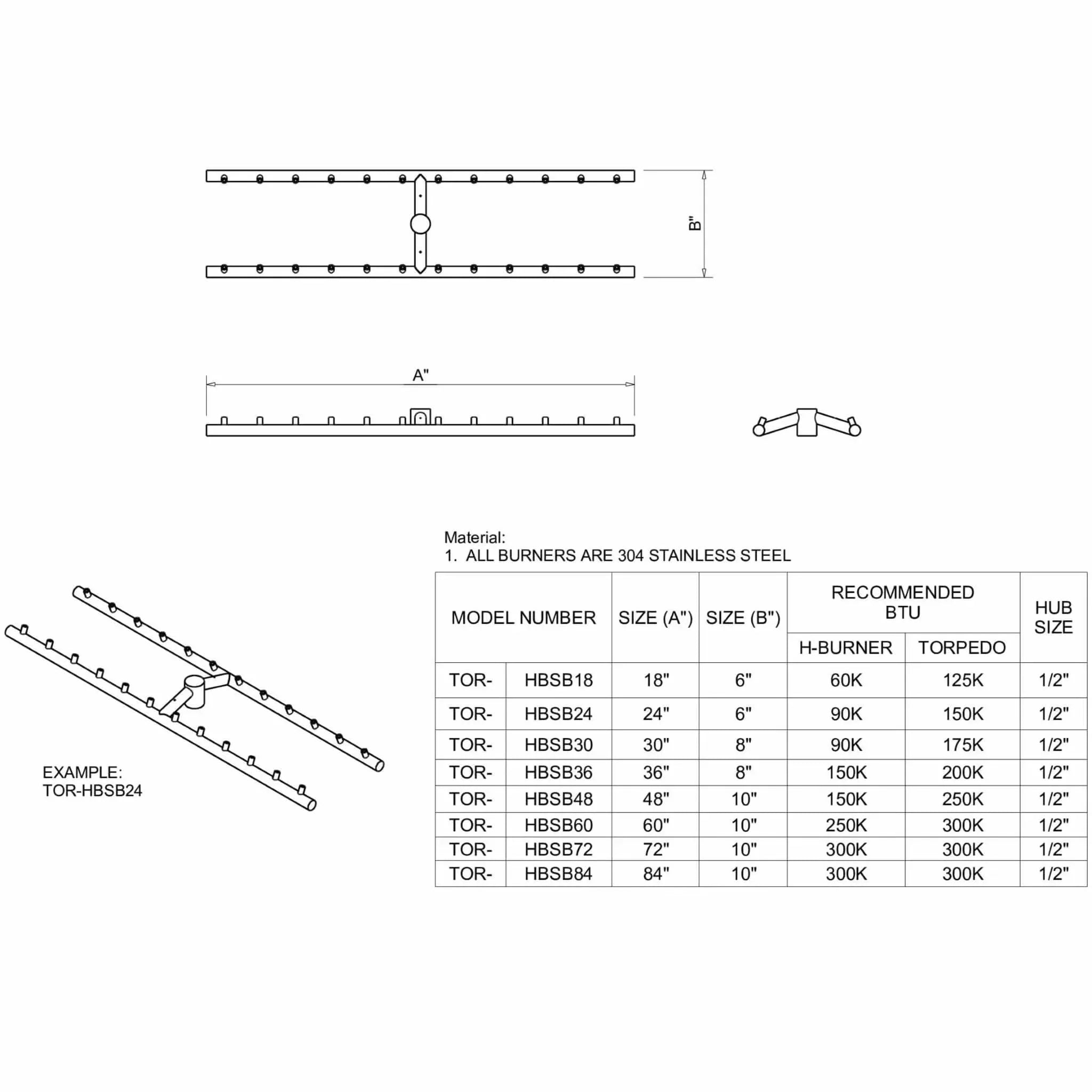

Technical Specifications & Engineering Options

• Sizing Footprint & Thermal Output Capabilities (Varies by Configuration):

  • 24" x 14" Pan (with 18" H-Burner): Up to 65,000 – 75,000 BTUs

  • 30" x 14" Pan (with 24" H-Burner): Up to 100,000 – 125,000 BTUs

  • 36" x 14" Pan (with 30" H-Burner): Up to 125,000 – 150,000 BTUs

  • 42" x 14" Pan (with 36" H-Burner): Up to 150,000 – 175,000 BTUs

  • 54" x 16" Pan (with 48" H-Burner): Up to 200,000 – 250,000 BTUs

• Chassis Material Composition: 100% weather-resistant, non-corrosive premium 304 stainless steel pan, burner arms, and protective sealed lower valve box.

• Self-Draining Infrastructure: Engineered with integrated weep holes across the pan basin floor and an integrated raised center burner hub that actively diverts rainwater from getting trapped inside the gas manifold lines.

• Dedicated Fuel Utility Options: Factory-built, safety-tested, and serialized precisely for either Natural Gas or Liquid Propane (LP) hardline connections. Propane setups include an integrated wire mesh spider guard to prevent insects from nesting inside the primary gas orifice.

• Power Supply Track Options: Selectable at purchase for either standard 120 VAC (equipped with a 3-prong outdoor-grounded GFCI plug cord) or a low-voltage 24 VAC track (ideal for pool zones or public commercial settings; requires an external step-down transformer box, sold separately).

Turnkey Factory Inclusions & Warranty

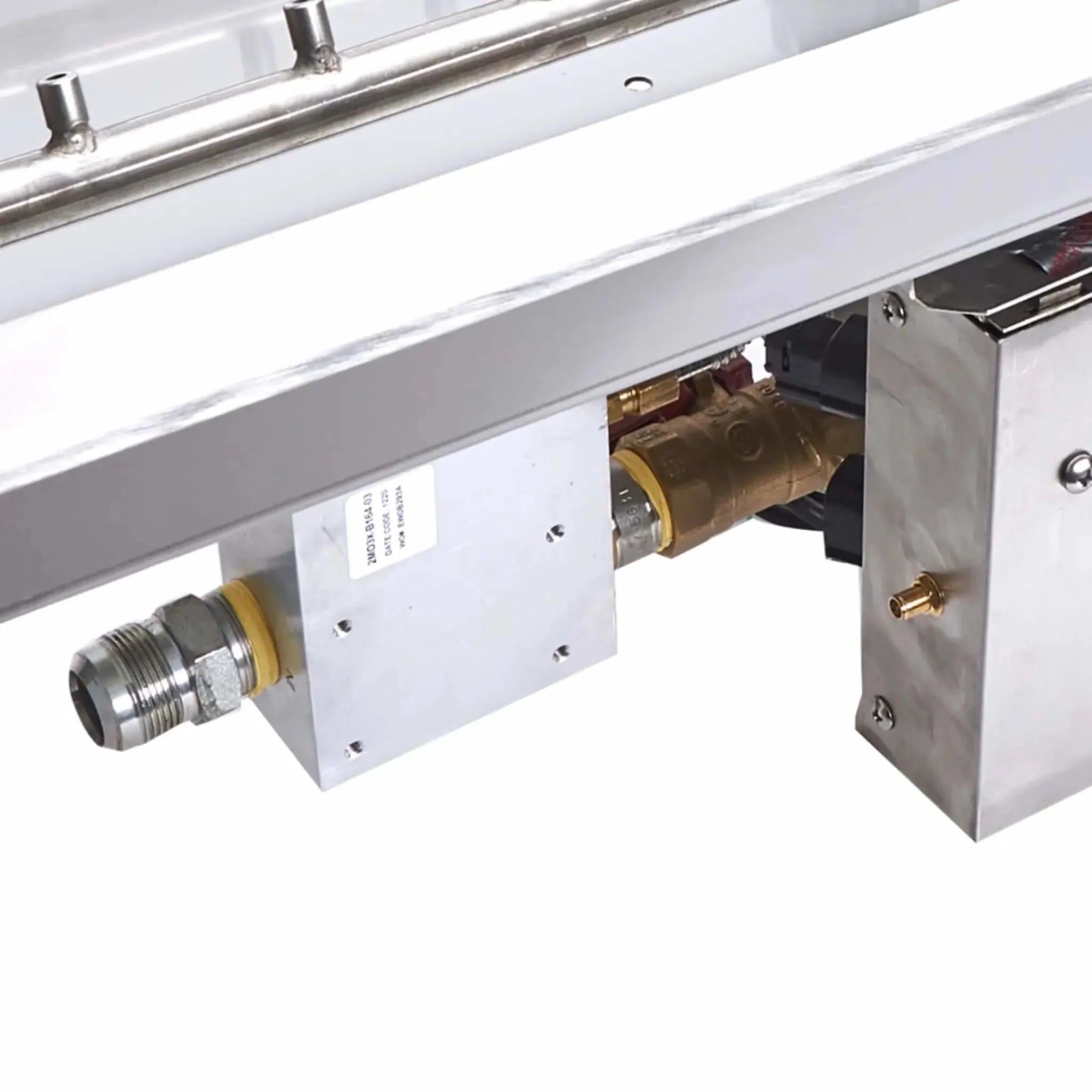

• What's in the Box: Ships fully pre-assembled right out of the box with the rectangular pan, Torpedo H-burner assembly, and sealed lower control box pre-plumbed, alongside a matching flexible gas line connector, 3/4" female NPT fittings, a smart handheld remote, and a comprehensive installation manual.

• HPC Industry-Leading Warranty Protection:

  • Limited Lifetime Warranty: Underwrites the 304 stainless steel primary gas burner arms and drop-in pans for life against manufacturing defects.

  • 3-Year Electronics Warranty: Safeguards the internal electronic modules and circuit board configurations under residential use.

  • 2-Year Pilot System Warranty: Protects hot surface igniters, thermocouples, and pilot assembly housings.
