HPC Fire Rectangle Flat Fire Pit H-Burner Kit (On/Off Electronic Ignition)

HPC Fire Rectangle Flat Fire Pit H-Burner Kit (On/Off Electronic Ignition)

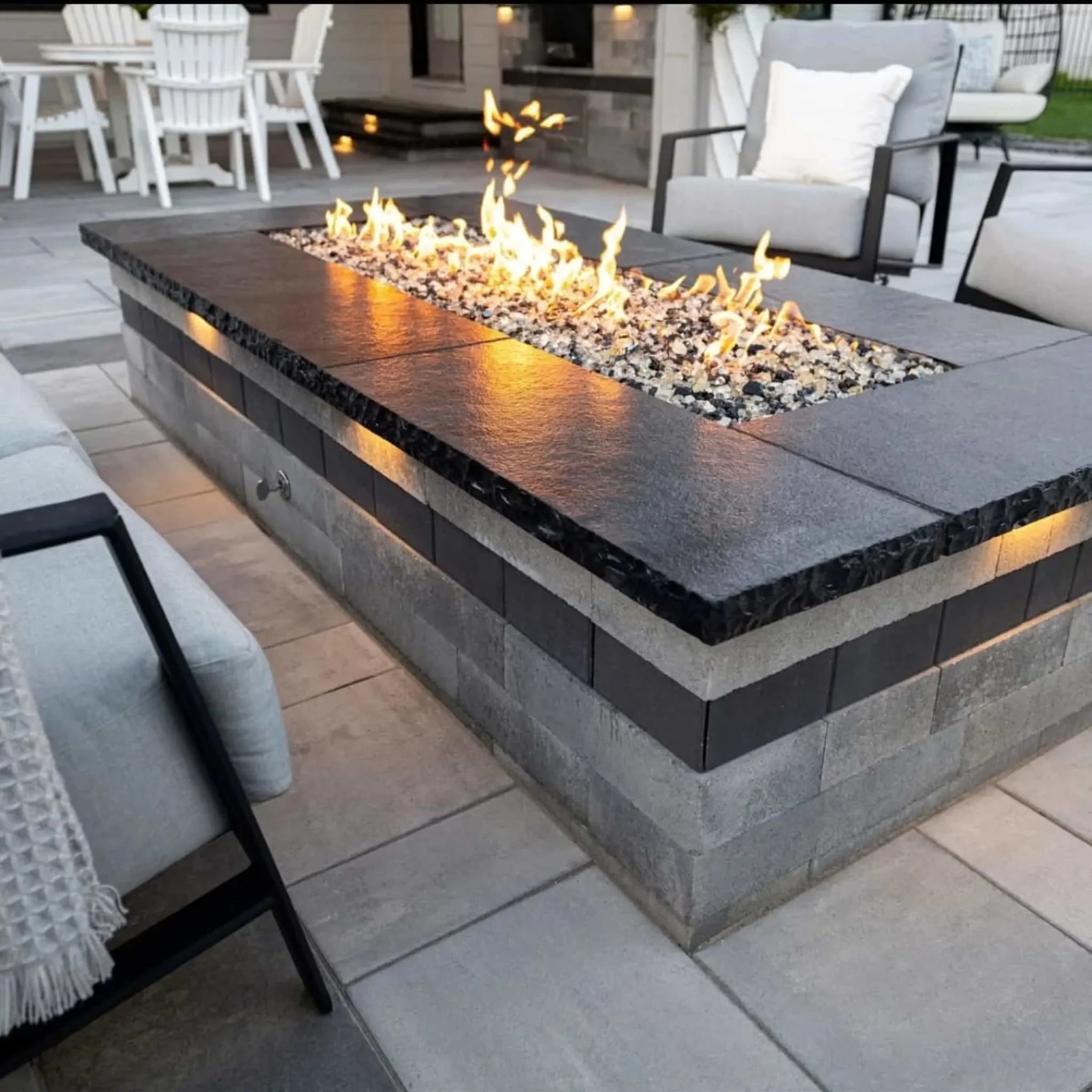

The HPC Fire Rectangle Flat Fire Pit H-Burner Kit with On/Off Electronic Ignition is a commercial-grade, automated outdoor fire insert manufactured by Hearth Products Controls (HPC). Masterfully engineered for high-end rectangular fire tables, long linear stone enclosures, or custom masonry islands, this premium kit trades the traditional deep-bowl cutout for an ultra-low-profile flat rectangular plate (pan) design.

Centered around an automated On/Off Electronic Ignition (EI) module, this premium package delivers instant full-capacity flame activation and robust weather monitoring. This makes it an exceptional choice for modern residential landscapes, commercial hospitality zones, luxury resorts, and high-end outdoor design applications.

Dual-Lane H-Burner Layout & Low-Profile Flat Pan

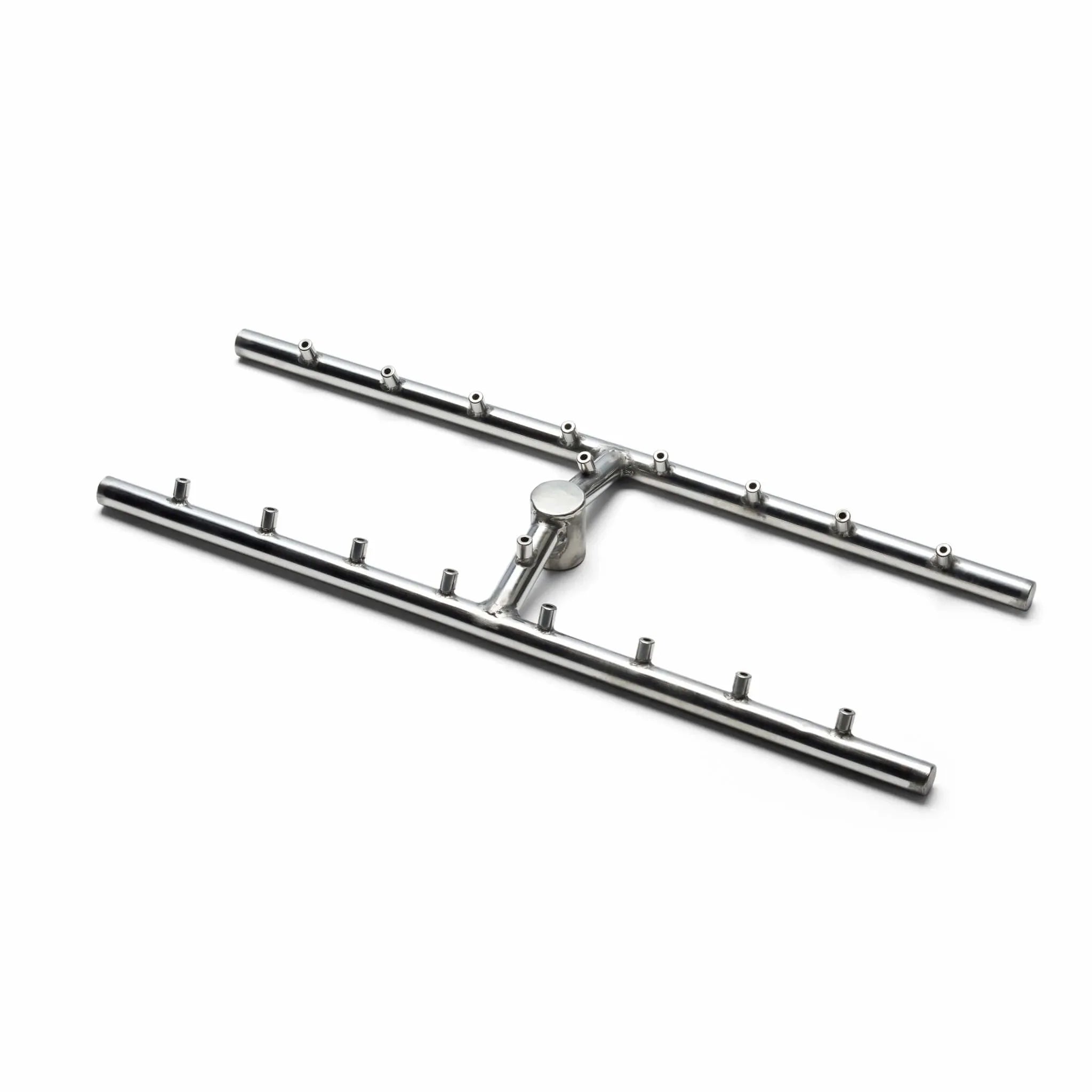

• Full-Bodied H-Burner Profile: Unlike basic single-line pipe burners that create a thin wall of fire, the H-Burner utilizes two parallel burner tracks joined across a central fuel bridge. By firing two parallel tracks of staggered, precision-drilled burner gas ports, it fills out a rectangular footprint perfectly, producing a dense sheet of fire with rich visual depth.

• Ultra-Low-Profile Flush Flat Pan: Precision-crafted from heavy-gauge, non-corrosive commercial 304 stainless steel. The flat rectangular plate provides a rigid, flush resting lip to span your custom cutout opening cleanly. It features pre-drilled weep holes for immediate rainwater drainage and a specialized raised center burner hub to prevent moisture or pooling water from traveling down into the primary gas orifice rail.

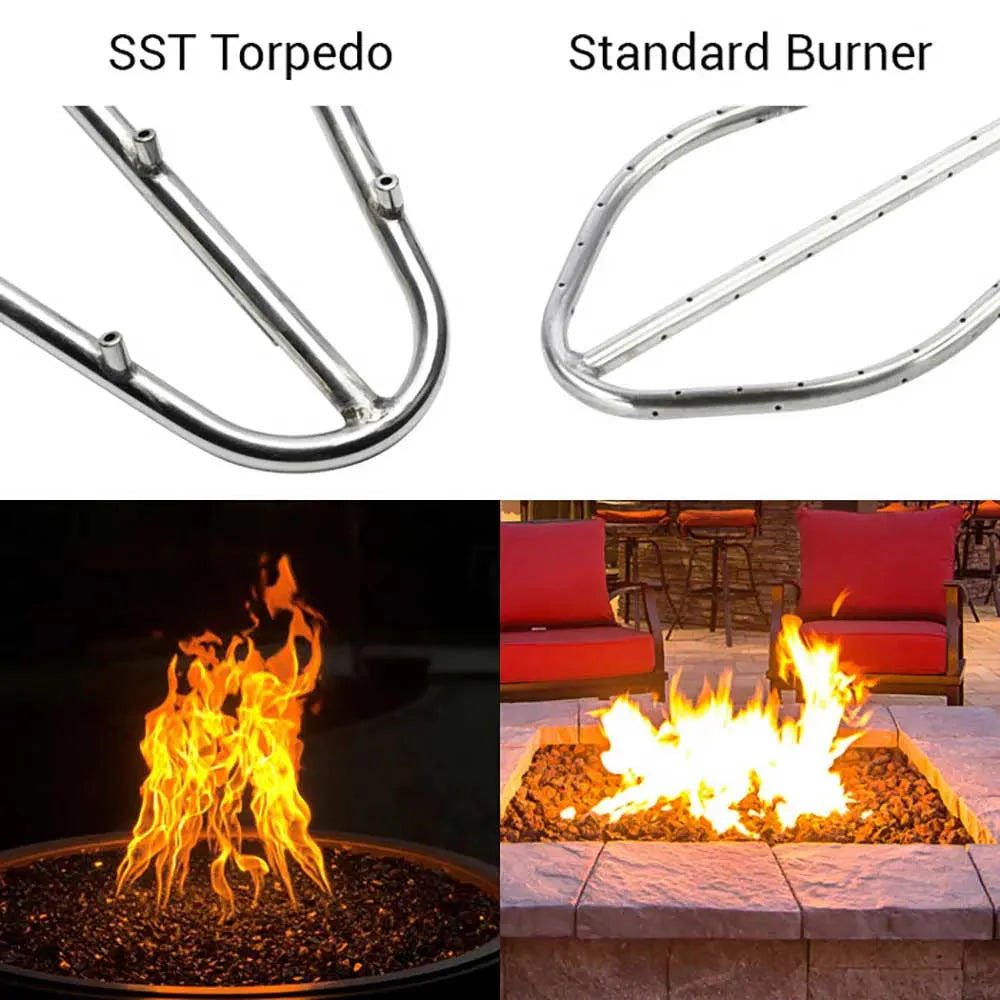

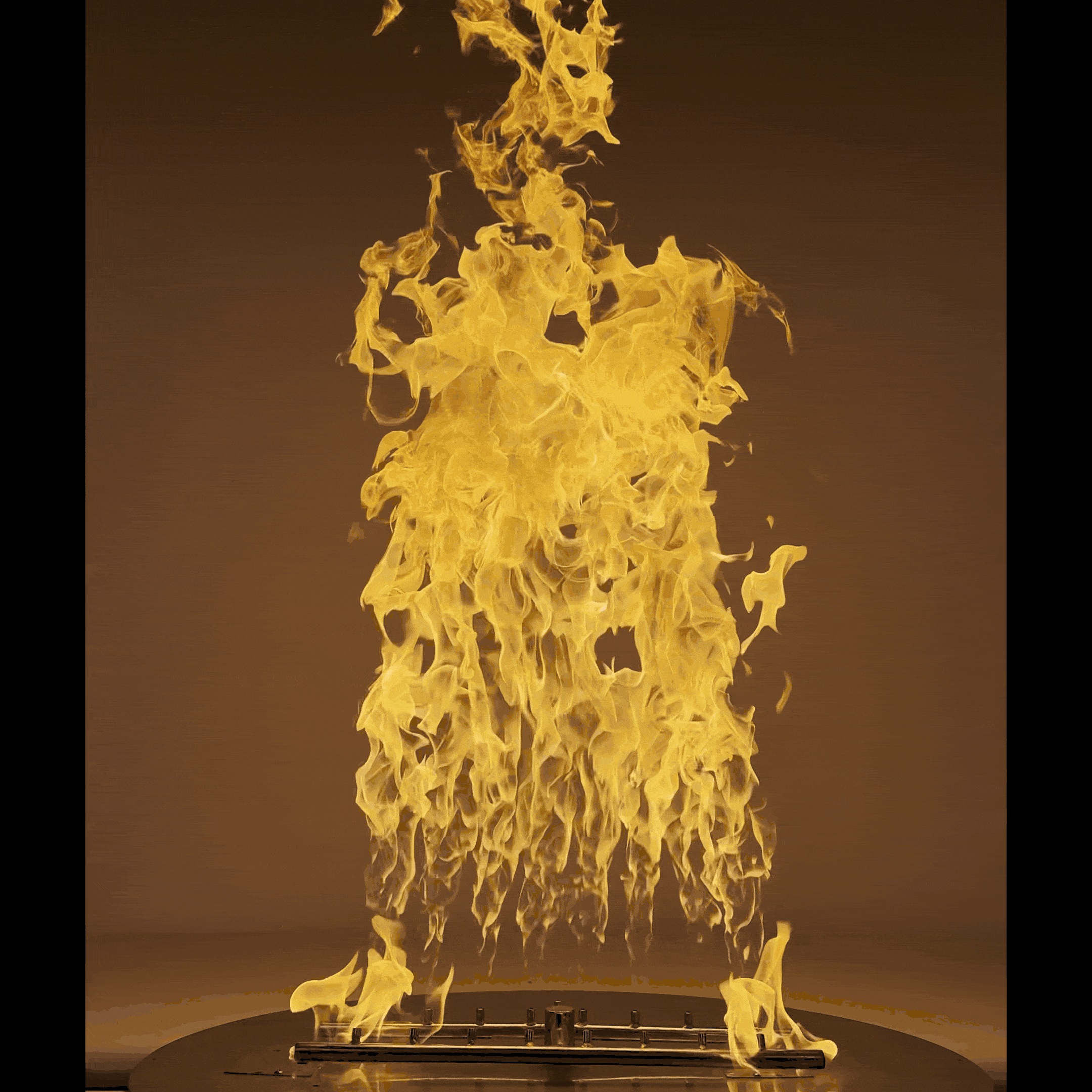

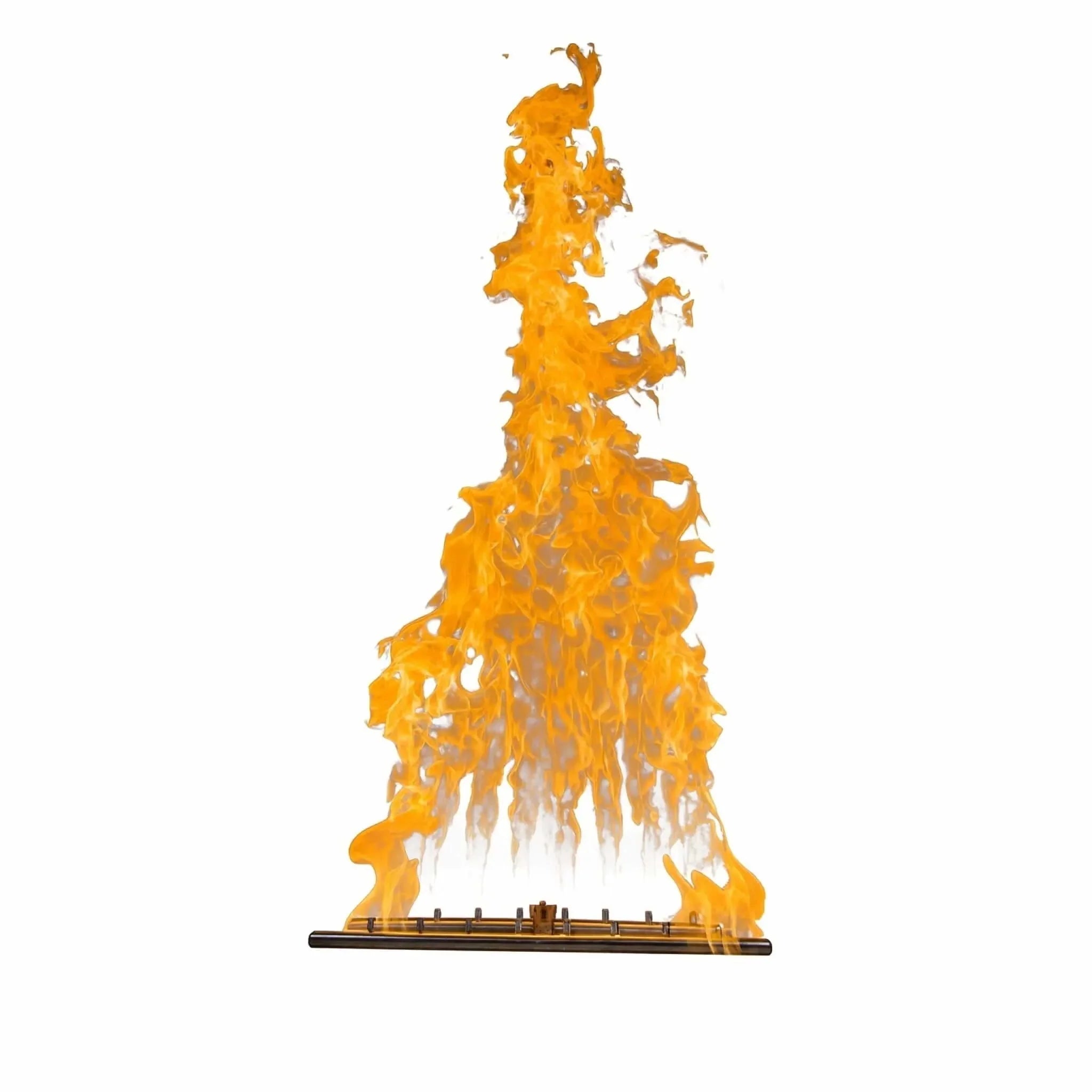

• Optional High-Velocity Torpedo Upgrade: This kit can be chosen in a standard high-efficiency configuration or paired with HPC's innovative Torpedo Nozzle Burners. Torpedo upgrades utilize precision-machined brass jets that drastically expand gas velocity, throwing extra-tall, robust, roaring flames that mirror a real wood bonfire.

On/Off Electronic Ignition Automation & Safety

• Two-Way Bluetooth App Connectivity: Outfitted with an integrated smart internal antenna inside a weather-sealed lower control box, the system seamlessly pairs with the proprietary, free HPC Fire smartphone app (iOS and Android). This allows you to safely turn your fire pit on or off from up to 20 feet away, track real-time operations, and run live diagnostics straight from your smart device.

• Instant Full-Output Command: Designed for absolute operational simplicity, a single command via a wall switch, upstream GFCI circuit, or smart app ignites the system immediately to full, maximized thermal heat and height output. (Can be operated via an optional hardware hand-held waterproof remote control).

• Hot Surface Ignition (HSI) & Pilot Telemetry: Uses a durable hot surface igniter paired with an advanced pilot flame loop protected by a metal blow-out box. The safety module constantly monitors the active flame path. If an aggressive gust of wind unexpectedly blows out the fire, the valve instantly cuts off gas flow to prevent dangerous pooling, then safely initializes an automatic re-light sequence.

• Thermal Protection Auto-Shutoff: Housed within the sealed lower enclosure are built-in temperature diagnostics. If poor ventilation or improper fire media nesting causes heat to spike beyond safe boundaries, the system executes an emergency shutoff to protect the internal electronic boards.

Technical Specifications & System Scaling

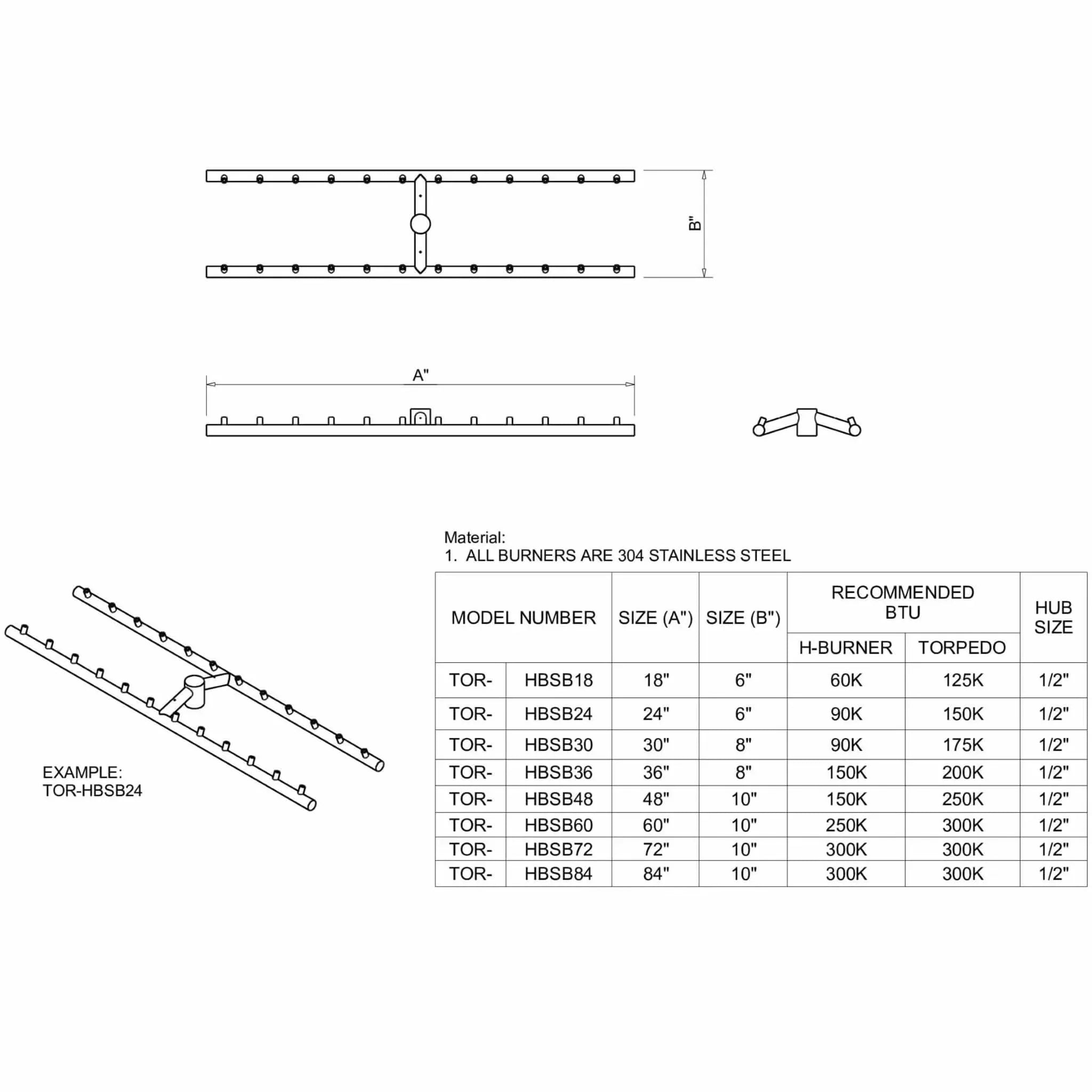

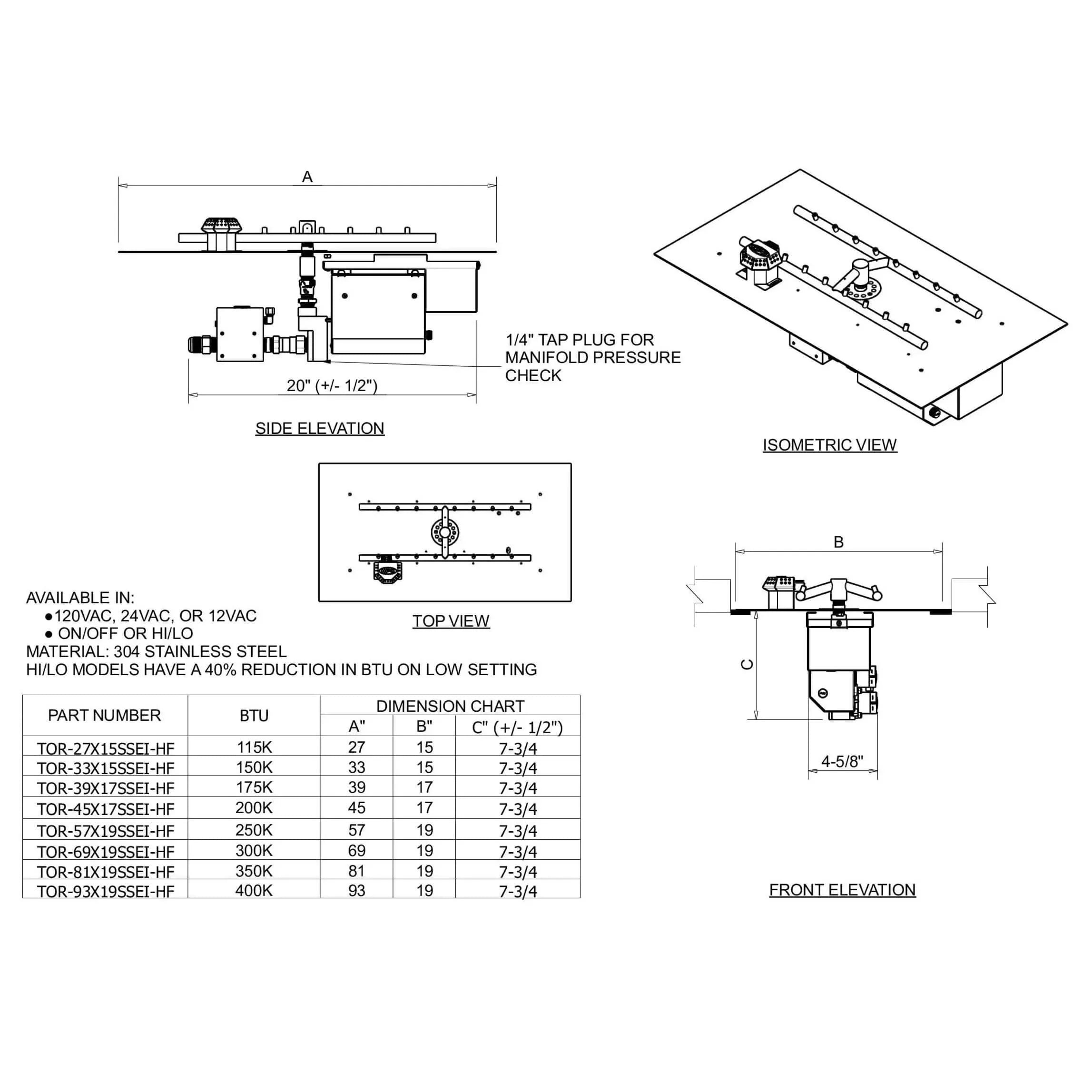

• Rectangle Flat Pan Size Options & Dimensions Track:

  • 27" x 15" Pan (with 18" x 6" H-Burner Hub)

  • 33" x 15" Pan (with 24" x 6" H-Burner Hub)

  • 39" x 17" Pan (with 30" x 8" H-Burner Hub)

  • 45" x 17" Pan (with 36" x 8" H-Burner Hub)

  • 57" x 17" Pan (with 48" x 10" H-Burner Hub)

  • 69" x 19" Pan (with 60" x 10" H-Burner Hub)

  • 81" x 19" Pan (with 72" x 10" H-Burner Hub)

  • 93" x 19" Pan (with 84" x 10" H-Burner Hub)

• Dedicated Fuel Utility Hardlines: Factory-built, safety-tested, and serialized precisely for either Natural Gas or Propane Gas HARDLINE configurations.

• Power Supply Track Options: System mechanics require dedicated electricity. Selectable at purchase for either standard residential 120 VAC (equipped with a 3-prong outdoor-grounded GFCI plug cord) or a low-voltage 24 VAC track (ideal for pool zones; requires an external step-down transformer power supply, sold separately).

• Safety Verification: Fully CSA certified in the US & Canada to ANSI Z21.97 requirements.
