The Square Drop-In Hi/Lo Electronic Ignition Fire Pit Burner Kit by HPC Fire is a commercial-grade gas fire pit insert meticulously engineered for luxury outdoor living projects. Combining advanced telemetry with heavy-duty architecture, this kit is designed for custom square stone, paver, or concrete fire pits. The premium Hi/Lo Electronic Ignition (EI) package allows users to seamlessly control flame height and system mechanics via a handheld remote control or directly from a smartphone or tablet.

Arriving as a fully pre-assembled, drop-in system, it eliminates complex structural plumbing, providing an elite, reliable focal point for residential patios, resorts, and outdoor restaurant venues.

Advanced Hi/Lo Electronic Ignition & Telemetry

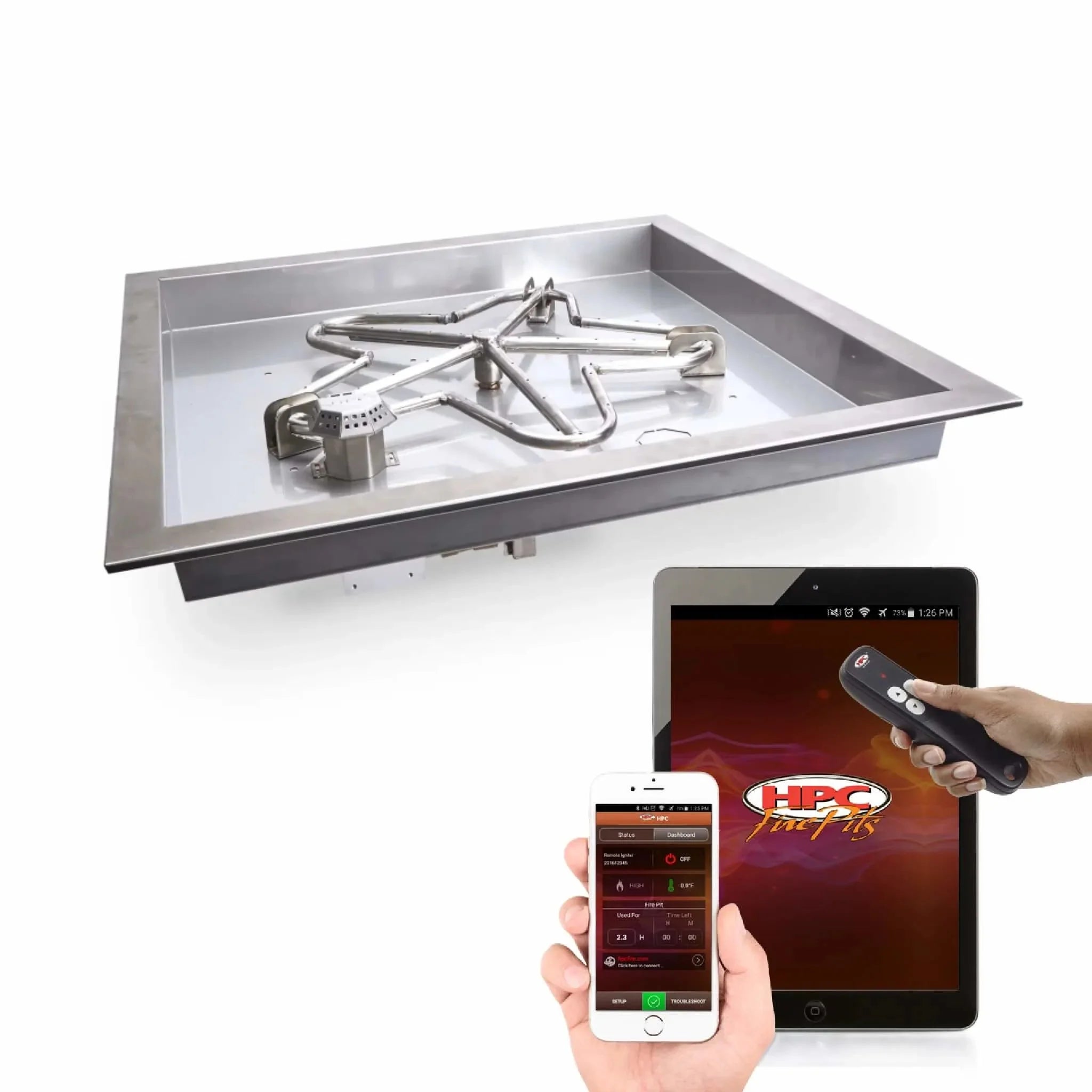

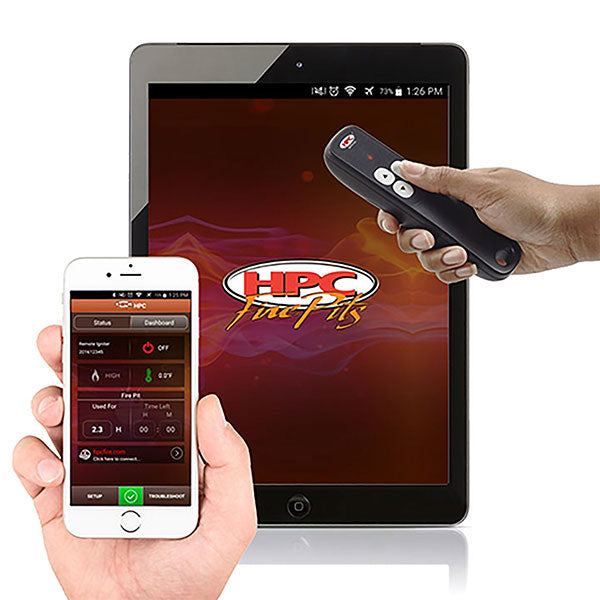

• Two-Way Bluetooth Smart Technology: The core control box features an integrated internal antenna that syncs wirelessly with the proprietary HPC Fire app (compatible with iOS and Android devices) via Bluetooth from up to 20 feet away.

• Variable Flame Height Turndown: Unlike static on/off fire pits, the Hi/Lo fuel module lets users toggle the flame height with a 40% to 45% turndown capability. Lower the fire to establish an intimate, soft ambiance, or crank it to max capacity for dramatic warmth on chilly nights.

• Intelligent Flame Sensing & Auto Re-Light: Outfitted with an advanced pilot light, thermocouple, and a robust Hot Surface Igniter (HSI). The system constantly checks for the presence of a flame. If an unexpected gust of wind extinguishes the fire, the smart valve automatically cuts the gas flow to prevent pooling, then initializes a safe, immediate auto-ignition sequence to restart the fire.

• Overheat Auto-Shutoff Guards: Built-in internal thermal diagnostics continuously monitor control box operating metrics. If temperatures spike beyond safe parameters due to improper media coverage or poor lower ventilation, the kit shuts down immediately to protect internal circuit boards.

Performance Hardware & Burner Options

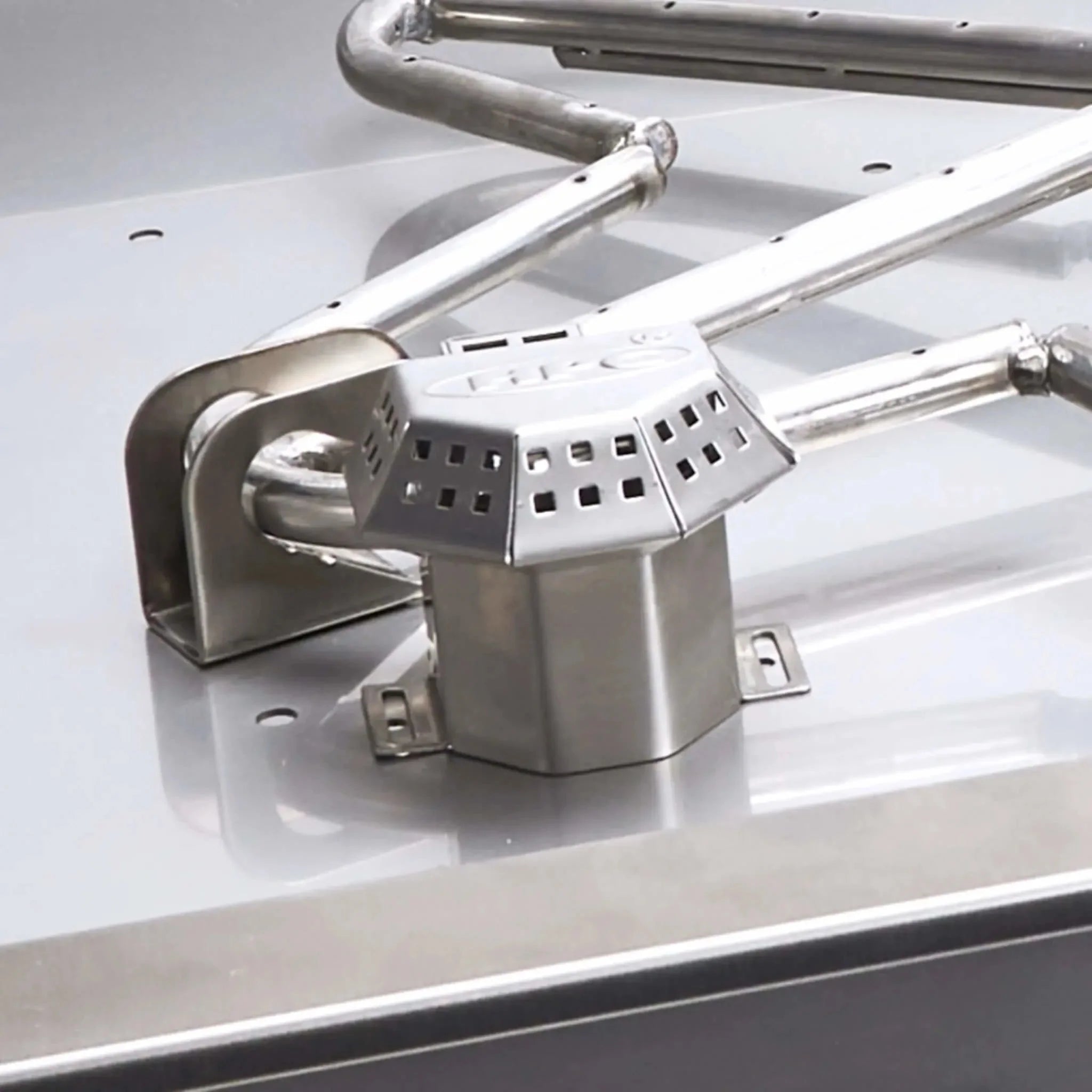

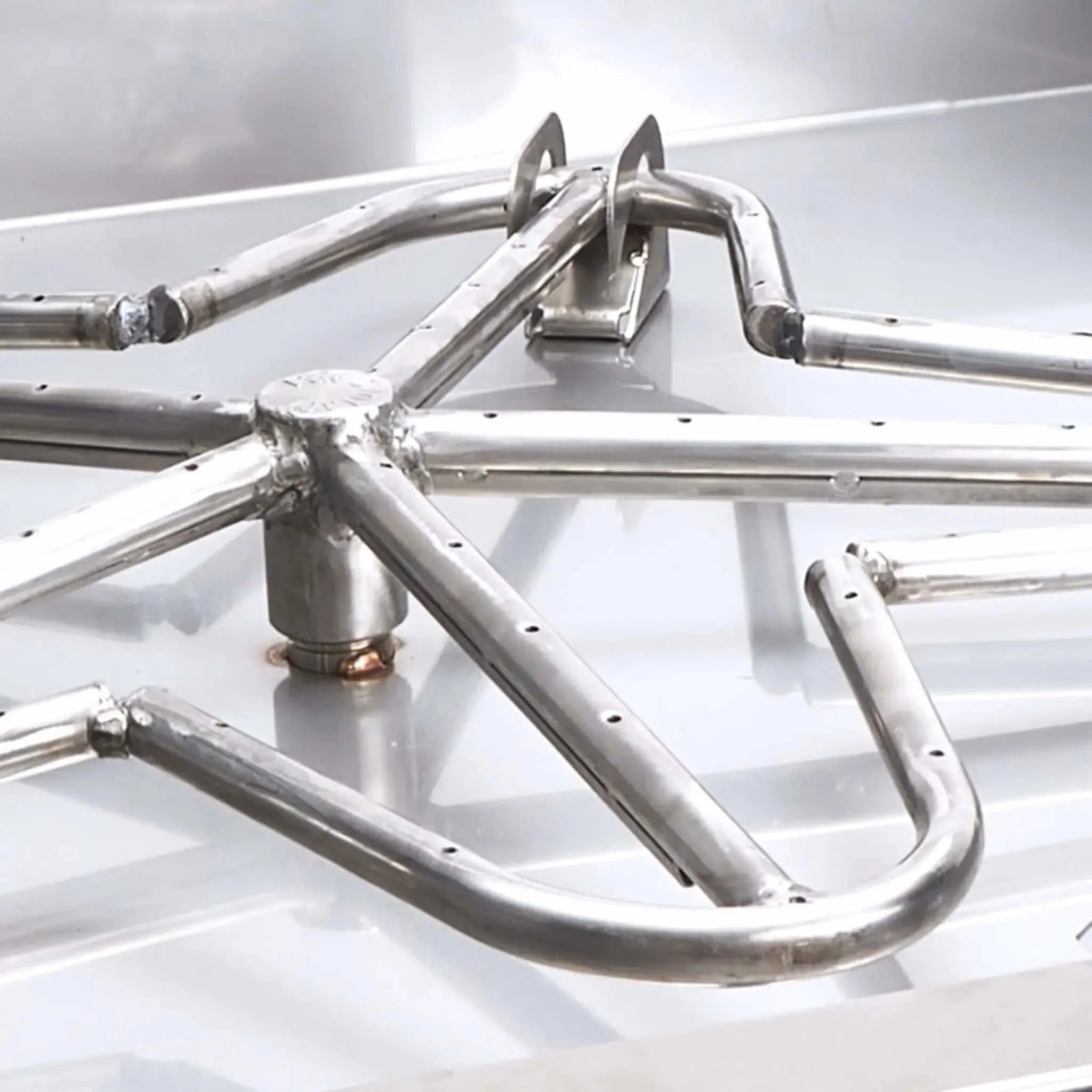

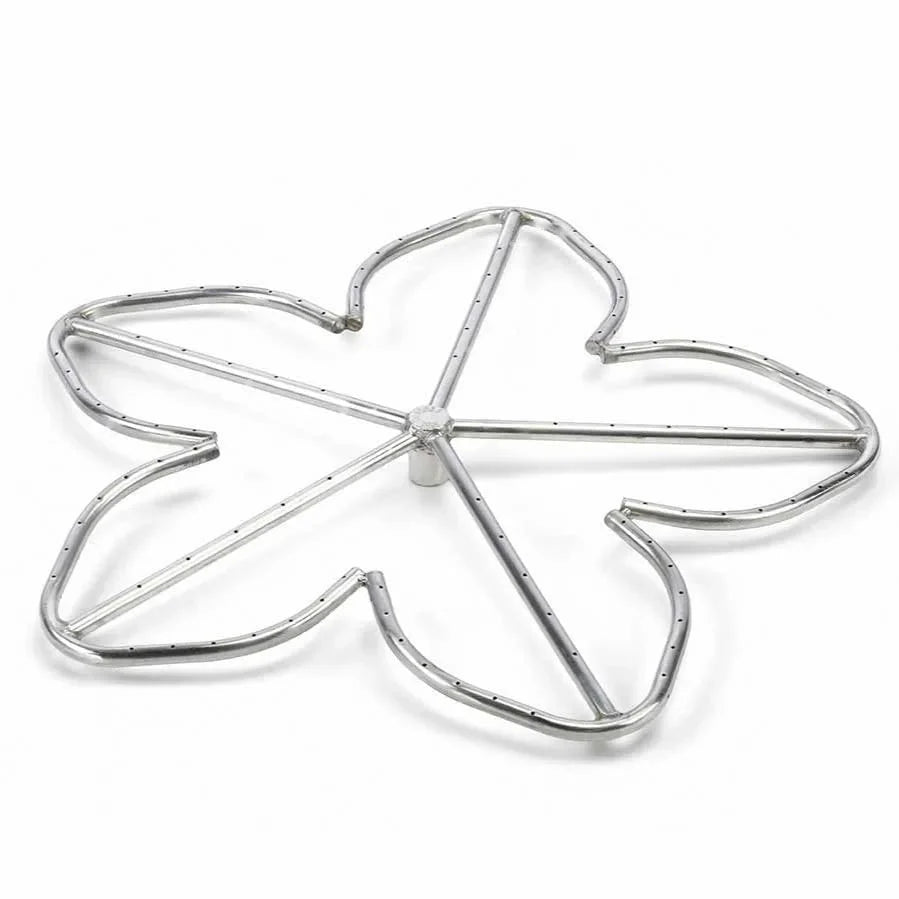

• Campfire-Style Penta Burner Layout: Machine-welded from thick 304 stainless steel, the distinct five-point geometry of the iconic Penta Burner forces the flames toward the center, creating a full, natural campfire presentation that wraps beautifully around logs or glass media without smoke or embers.

• Torpedo Nozzle Flame Booster (Optional Upgrade): Available in both Standard Burner configurations and upgraded Torpedo Nozzle Burner systems. Torpedo configurations feature specialized precision nozzles that dramatically increase gas velocity, throwing tall, robust, roaring flames reminiscent of a traditional wood fire.

• Self-Draining Drop-In Bowl Pan: The deep square bowl-style pan features an integrated 1.5" support edge rim to drop firmly and securely into the top opening of your non-combustible fire feature. Built with integrated drainage weep holes and a raised center burner hub, it effortlessly diverts heavy rain away from entering the gas line.

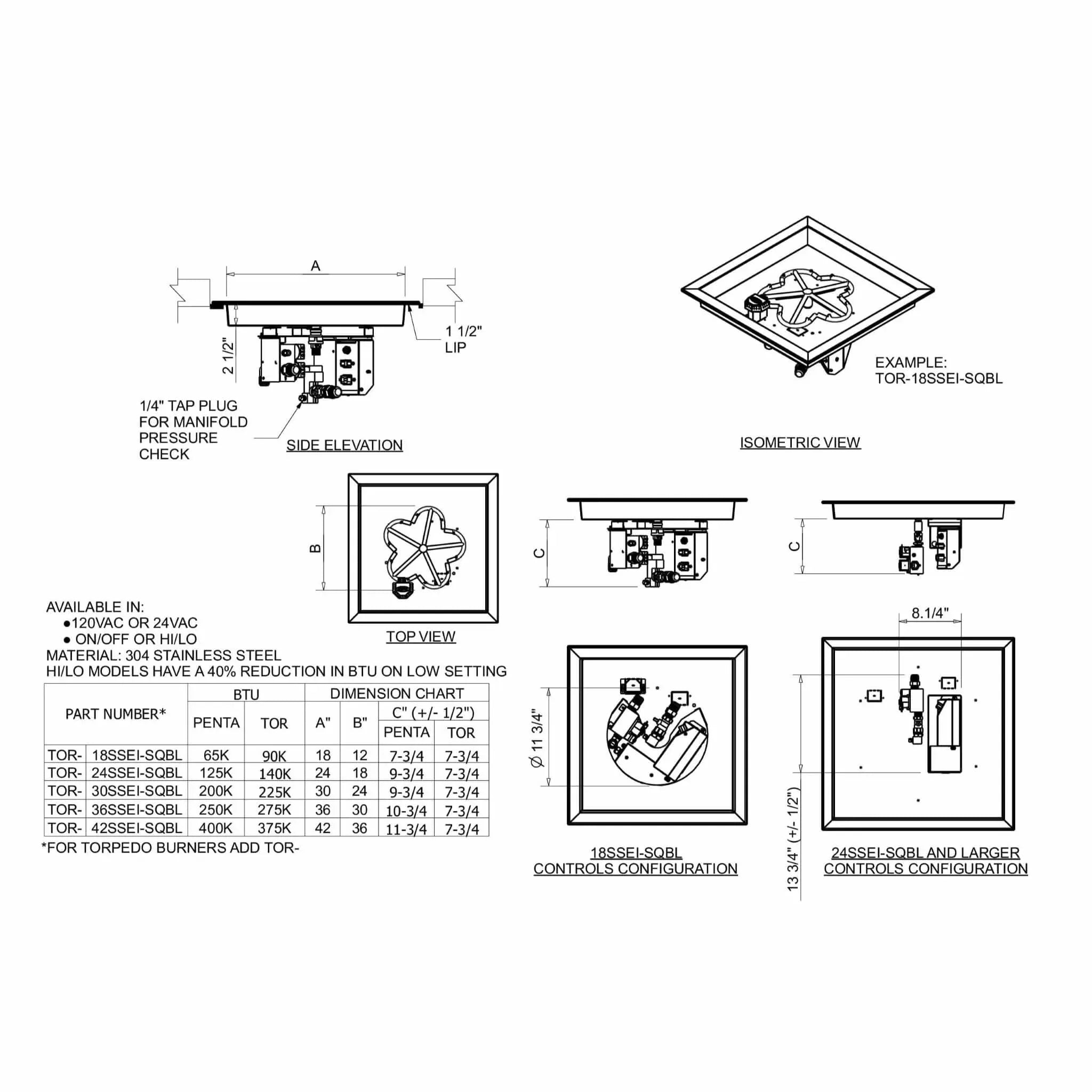

Technical Specifications & Spatial Footprint

• Sizing Options & Thermal Output Capacity (Varies by Gas Input):

  • 19" x 19" Pan (with 12" Burner): Up to 65,000 – 90,000 BTUs

  • 25" x 25" Pan (with 18" Burner): Up to 125,000 – 145,000 BTUs

  • 31" x 31" Pan (with 24" Burner): Up to 200,000 – 225,000 BTUs

  • 37" x 37" Pan (with 30" Burner): Up to 275,000 BTUs

  • 43" x 43" Pan (with 36" Burner): Up to 375,000 BTUs

• Material Composition: 100% heavy-gauge commercial-grade #304 stainless steel pan, burner arms, and weather-sealed valve control box.

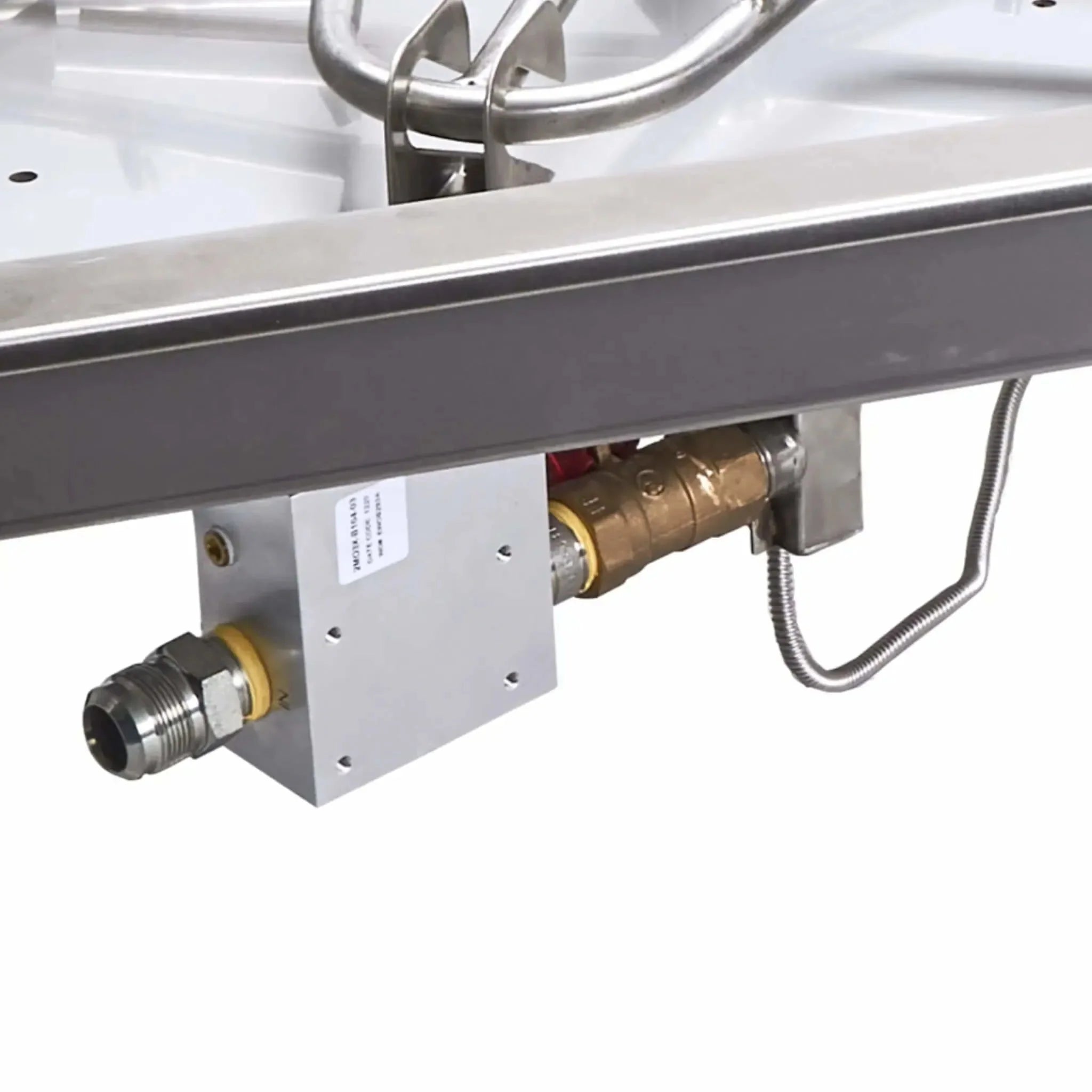

• Fuel Line Calibration: Factory-built, safety-tested, and serialized precisely for either Natural Gas or Liquid Propane (LP) hardline connections. Propane setups include an integrated mesh spider guard to block insects from nesting inside the primary orifice rail.

• Power Supply Infrastructure Requirements: Requires dedicated electricity to activate. Selectable at purchase for either standard 120 VAC (outfitted with a heavy-duty grounded outdoor plug line) or 24 VAC low-voltage configurations (ideal for poolside boundaries; requires a separate external 24V step-down transformer box).

Complete Factory Inclusions & Warranty

• Turnkey Packaging: Ships fully assembled and includes the certified square bowl burner pan assembly, a protective water-resistant stainless steel valve control box, a smart handheld remote control, a high-quality flexible gas line hookup connection, and a comprehensive BILT app 3D installation blueprint guide.

• HPC Industry-Leading Protection: * Limited Lifetime Warranty: Underwrites the 304 stainless steel primary gas burner ring and drop-in bowl pans for life.

  • 3-Year Electronics Warranty: Safeguards the internal electronic modules and circuit board configurations under residential use.

  • 2-Year Pilot Assembly Warranty: Protects thermocouple ports, hot surface igniters, and target pilot hood brackets under standard conditions.
